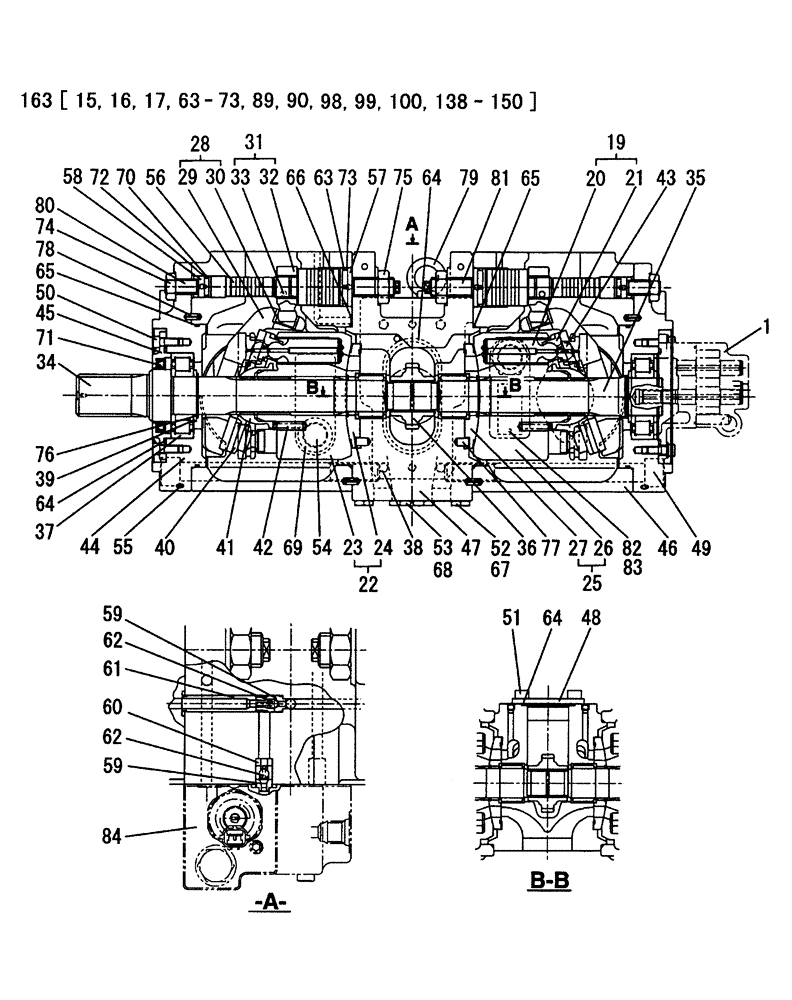

Запчасти Case CX350 (08-163-05[01]) - HIGH PRESSURE HYDRAULIC PUMP - STANDARD - KAWASAKI (08) - HYDRAULICS

KSJ2851

PUMP, HYDRAULIC

1шт.

Consists Of Ref. Numbers 1 To 104, See Page(s) 08-163-05-01 To 08-163-09-01

1шт.

KSJ15460R

REMAN-HYD PUMP

New style pilot pumps are internally drained. If drain port is not present the dealer can discard the 2 elbows and use plug PN159085A1 in the tube assembly.

1шт.

KSJ15460C

CORE-HYDRAULIC PUMP

Return Number

1шт.

1

LJ01117

HYDRAULIC PUMP

1шт.

See Page(s) 08-163-06-01

1шт.

19

TJ00071

PISTON

2шт.

Consists Of Ref. Numbers 20, 21

1шт.

20

NSS

NOT SOLD SEPARAT

9шт.

21

NSS

NOT SOLD SEPARAT

9шт.

22

LJ01118

BARREL

1шт.

Consists Of Ref. Numbers 23, 24

1шт.

23

NSS

NOT SOLD SEPARAT

1шт.

24

NSS

NOT SOLD SEPARAT

1шт.

25

LJ01119

BARREL

1шт.

Consists Of Ref. Numbers 26, 27

1шт.

26

NSS

NOT SOLD SEPARAT

1шт.

27

NSS

NOT SOLD SEPARAT

1шт.

28

TR00048

PLATE

2шт.

Consists Of Ref. Numbers 29, 30

1шт.

29

NSS

NOT SOLD SEPARAT

1шт.

30

NSS

NOT SOLD SEPARAT

1шт.

31

TA00050

SPECIAL PIN

2шт.

Consists Of Ref. Numbers 32, 33

1шт.

32

NSS

NOT SOLD SEPARAT

1шт.

33

NSS

NOT SOLD SEPARAT

1шт.

34

LB00925

DRIVE SHAFT

1шт.

35

LB00926

DRIVE SHAFT

1шт.

36

TC00021

GEAR

1шт.

37

TB00026

BEARING, ROLLER, CYL,40mm ID x 90mm OD x 23mm W

2шт.

38

TB00025

NEEDLE BEARING,33 mm ID x 47 mm OD x 32 mm

2шт.

39

156963A1

SPACER

3шт.

40

TR00047

PLATE

2шт.

41

169288A1

BUSHING

2шт.

42

TG00025

SPRING

18шт.

43

160113A1

PLATE

2шт.

44

TS00007

SUPPORT

2шт.

45

TW00032

COVER

1шт.

46

160604A1

HOUSING

2шт.

47

LS00235

BLOCK

1шт.

48

NSS

NOT SOLD SEPARAT

1шт.

49

167078A1

BOLT,M8 x 40mm, Cl 12.9

M8 x 40; 12.9

8шт.

50

861-8020

HEX SOC SCREW,M8 x 20mm, Cl 12.9

4шт.

51

108R010Y016R

BOLT

M10 x 16

4шт.

52

155496A1

PLUG

2шт.

53

TLM0023

PLUG

2шт.

54

155471A1

PLUG

4шт.

55

LK00003

PLUG

32шт.

56

TJ00066

PISTON

2шт.

57

160115A1

STOP

2шт.

58

160116A1

STOP

2шт.

59

NSS

NOT SOLD SEPARAT

4шт.

60

NSS

NOT SOLD SEPARAT

2шт.

61

NSS

NOT SOLD SEPARAT

2шт.

62

NSS

NOT SOLD SEPARAT

4шт.

63

154549A1

O-RING

2шт.

64

154713A1

O-RING

2шт.

65

154805A1

O-RING

4шт.

66

154455A1

O-RING

16шт.

67

154467A1

O-RING,10.8mm ID x 2.4mm Width

4шт.

68

154475A1

O-RING

2шт.

69

154503A1

O-RING

4шт.

70

154487A1

O-RING

2шт.

71

LE00031

OIL SEAL

1шт.

72

153970A1

BACK-UP RING

2шт.

73

154017A1

BACK-UP RING

2шт.

74

829-1416

NUT,M16, Cl 10

2шт.

75

829-1420

NUT,M20, Cl 10

2шт.

76

800-1140

SNAP RING,M40, Ext

2шт.

77

156954A1

DOWEL

2шт.

78

338W060Z014B

LINCH PIN

4шт.

79

126R010SR

EYEBOLT

BOLT, EYE

2шт.

80

LA00036

SET SCREW,Hex

2шт.

81

160296A1

SET SCREW

2шт.

82

NSS

NOT SOLD SEPARAT

1шт.

83

NSS

NOT SOLD SEPARAT

2шт.

84

160160A1

VALVE SECTION

1шт.

See Page(s) 08-163-07-01

1шт.

104

LL00093

REGULATOR

1шт.

Not Illustrated, See Page(s) 08-163-08-01

1шт.

163

LZ00626

SEAL KIT

1шт.

Consists Of Ref. Numbers 15, 16, 17 (See Page 08-163-06-01); 63 To 73; 89, 90, 98, 99, 100 (See Page 08-163-07-01); 138 To 150 (See Page 08-163-08-01)

1шт.
