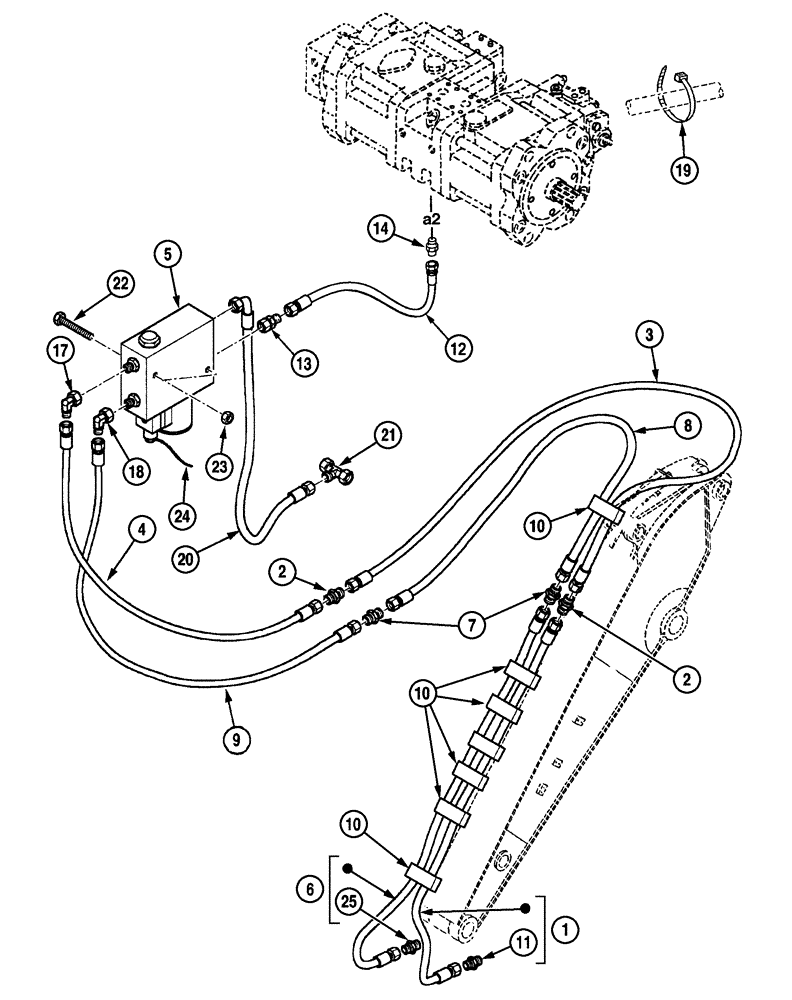

Запчасти Case CX350 (08-145-05[01]) - HYDRAULIC CIRCUIT - QUICK COUPLER (08) - HYDRAULICS

1

394468A1

HOSE

2295 mm (90-3/8 in)

1шт.

Consists Of Ref. Number 11

1шт.

2

D5137582

FITTING

1/4

2шт.

3

447983A1

HOSE,4800.00 mm

1шт.

Dipperstick 2.20 m, 2.60 m

1шт.

3

447984A1

HOSE,5600.00 mm

1шт.

Dipperstick 3.25 m, 4.00 m

1шт.

4

447985A1

HOSE,10000.00 mm

1шт.

378262A1

VALVE

24V

1шт.

Consists Of Ref. Numbers 5, 22, 23

1шт.

5

F5343342

SOLENOID VALVE

1шт.

See Page(s) 04-047-00

1шт.

6

394471A1

HOSE

2295 mm (90-3/8 in)

1шт.

Consists Of Ref. Number 25

1шт.

7

E5137583

FITTING

7/16

2шт.

8

447986A1

HOSE,4800.00 mm

1шт.

Dipperstick 2.20 m, 2.60 m

1шт.

8

447987A1

HOSE,5600.00 mm

1шт.

Dipperstick 3.25 m, 4.00 m

1шт.

9

447988A1

HOSE,10000.00 mm

1шт.

10

394413A1

CLAMP

7шт.

11

Fitting

1шт.

12

394459A1

HOSE

1219 mm (48 in)

1шт.

13

413045A1

UNION

9/16

1шт.

14

369623A1

FITTING

1шт.

17

369624A1

FITTING

1/4

1шт.

18

394412A1

FITTING

7/16

1шт.

19

N51946

CLAMP

275 mm

1шт.

20

447989A1

HOSE,2000.00 mm

1шт.

21

369627A1

TEE

1шт.

22

338413

BOLT,Hex, M6 x 60mm, Cl 8.8

2шт.

23

F234513

SAFETY NUT

M6

2шт.

24

418691A1

HARNESS

1шт.

See Page(s) 04-047-00

1шт.

25

Fitting

1шт.
