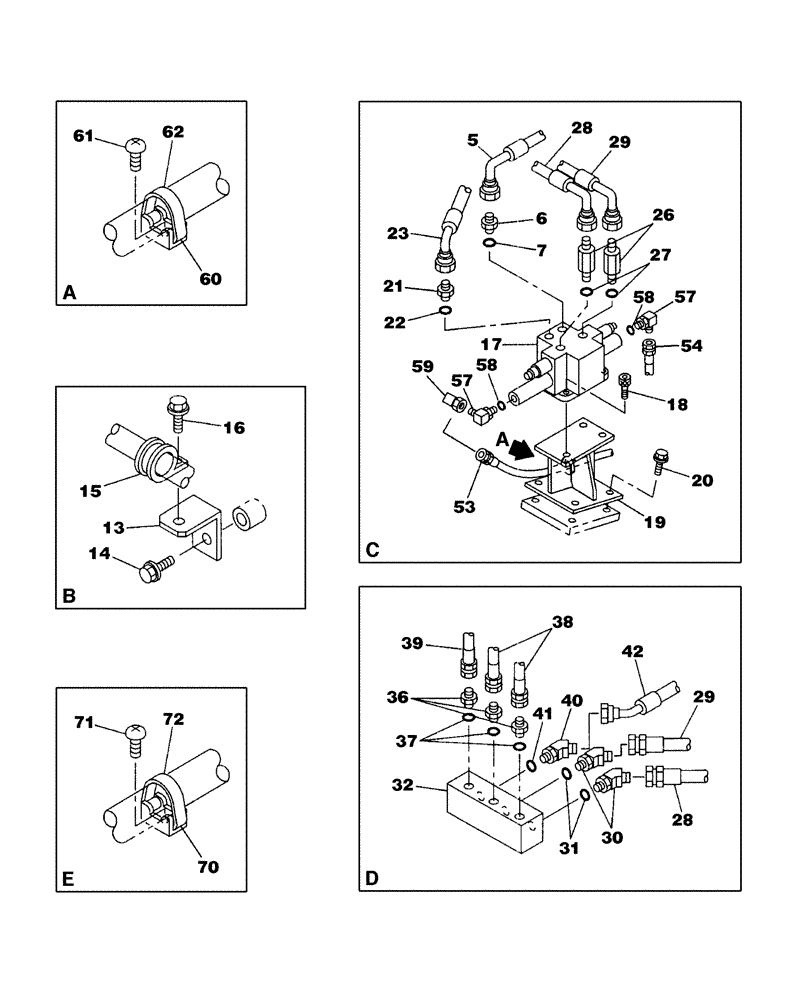

Запчасти Case CX350 (08-145-03[01]) - HYDRAULIC CIRCUIT, SMALL FLOW (08) - HYDRAULICS

5

KSJ2993

HYDRAULIC HOSE,19.05 mm ID x 2400.00 mm

1шт.

6

161102A1

ADAPTER

1шт.

Consists Of Ref. Number 7

1шт.

7

154487A1

O-RING

1шт.

13

KSJ2989

BRACKET

2шт.

14

166052A1

BOLT

2шт.

15

KHJ2451

FIXING BRACKET

2шт.

16

159602A1

BOLT,Sems, Hex, M6 x 16mm

2шт.

17

168709A1

VALVE SECTION

1шт.

See Page(s) 08-177-10-01

1шт.

18

862-10035

HEX SOC SCREW,M10 x 35mm, Cl 12.9

3шт.

19

KSJ2990

BRACKET

1шт.

20

152718A1

BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9

4шт.

21

161102A1

ADAPTER

1шт.

Consists Of Ref. Number 22

1шт.

22

154487A1

O-RING

1шт.

23

KAJ2420

HYDRAULIC HOSE,19.00 mm ID x 570.00 mm

1шт.

26

158759A1

HYD CONNECTOR

2шт.

Consists Of Ref. Number 27

1шт.

27

154487A1

O-RING

1шт.

28

KSJ2994

HYDRAULIC HOSE,19.05 mm ID x 410.00 mm

1шт.

29

KSJ2995

HYDRAULIC HOSE,19.05 mm ID x 510.00 mm

1шт.

30

157586A1

ELBOW

2шт.

Consists Of Ref. Number 31

1шт.

31

154503A1

O-RING

1шт.

32

KSJ2991

MANIFOLD VALVE

1шт.

36

151654A1

HYD CONNECTOR,3/4" NPT O-Ring x 3/4" NPT

3шт.

Consists Of Ref. Number 37

1шт.

37

154503A1

O-RING

1шт.

38

KSJ2997

HYDRAULIC HOSE,19.05 mm ID x 1750.00 mm

2шт.

39

KSJ2998

HYDRAULIC HOSE,19.05 mm ID x 1750.00 mm

1шт.

40

157586A1

ELBOW

1шт.

Consists Of Ref. Number 41

1шт.

41

154503A1

O-RING

1шт.

42

KNJ2390

HYDRAULIC HOSE,19.00 mm ID x 750.00 mm

1шт.

53

KRJ4750

HOSE,410.00 mm

1шт.

54

164238A1

HOSE ASSY.

1шт.

57

150913A1

ELBOW,90 Degree, 1/4" O-Ring x 1/4"

2шт.

Consists Of Ref. Number 58

1шт.

58

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

59

163814A1

ELBOW

1шт.

60

150860A1

COLLAR

2шт.

61

840-168

SCREW,Pan, M6 x 1 x 8mm, Cl 4.8

2шт.

62

150498A1

MOUNTING CLIP

300 mm

2шт.

70

150860A1

COLLAR

3шт.

71

840-168

SCREW,Pan, M6 x 1 x 8mm, Cl 4.8

3шт.

72

150496A1

MOUNTING CLIP

250 mm

3шт.
