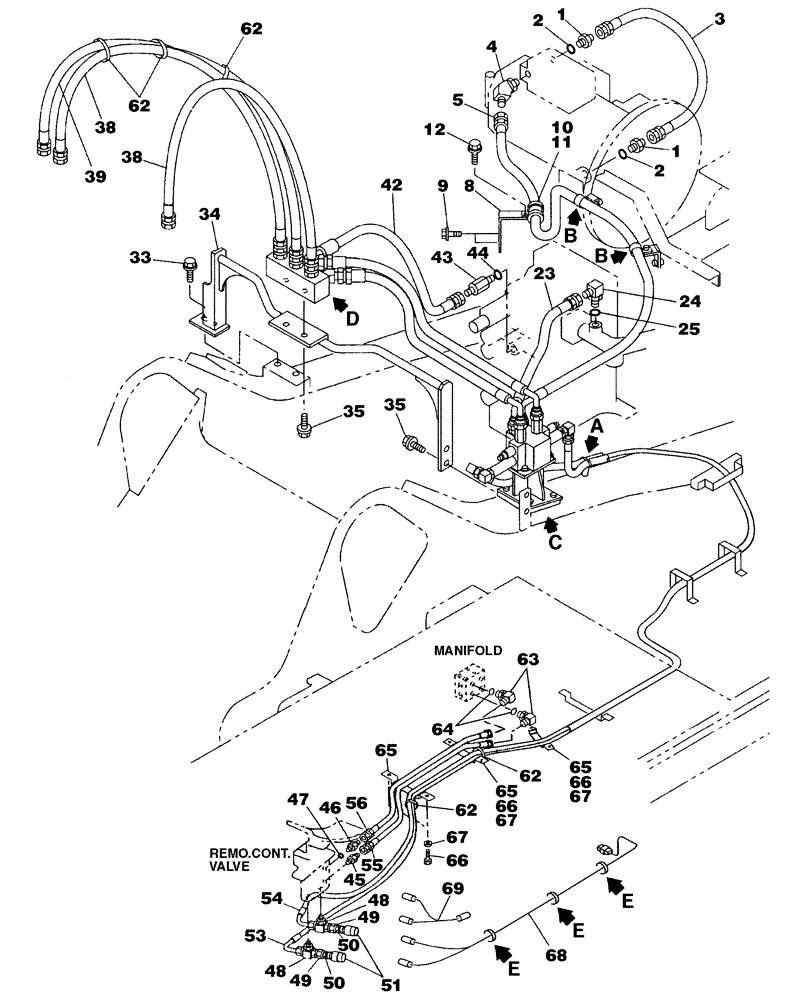

Запчасти Case CX350 (08-145-02[01]) - HYDRAULIC CIRCUIT, SMALL FLOW (08) - HYDRAULICS

1

151655A1

HYD CONNECTOR,1" NPT O-Ring x 1" NPT

2шт.

Consists Of Ref. Number 2

1шт.

2

154523A1

O-RING

1шт.

3

KSJ2909

HYDRAULIC HOSE,25.40 mm ID x 780.00 mm

1шт.

4

163005A1

ELBOW

1шт.

5

KSJ2993

HYDRAULIC HOSE,19.05 mm ID x 2400.00 mm

1шт.

8

KSJ2988

BRACKET

1шт.

9

166351A1

BOLT,Sems, M10 x 20mm

2шт.

10

KHJ2023

HOSE CLAMP

1шт.

11

KHJ2025

CLAMP

1шт.

12

166052A1

BOLT

1шт.

23

KAJ2420

HYDRAULIC HOSE,19.00 mm ID x 570.00 mm

1шт.

24

157580A1

ELBOW,90 Degree, 3/4" O-Ring x 3/4"

1шт.

Consists Of Ref. Number 25

1шт.

25

154503A1

O-RING

1шт.

33

166352A1

BOLT

2шт.

34

KSJ2996

BRACKET

1шт.

35

166352A1

BOLT

4шт.

38

KSJ2997

HYDRAULIC HOSE,19.05 mm ID x 1750.00 mm

2шт.

39

KSJ2998

HYDRAULIC HOSE,19.05 mm ID x 1750.00 mm

1шт.

42

KNJ2390

HYDRAULIC HOSE,19.00 mm ID x 750.00 mm

1шт.

43

158759A1

HYD CONNECTOR

1шт.

Consists Of Ref. Number 44

1шт.

44

154487A1

O-RING

1шт.

45

161841A1

HYD CONNECTOR

1шт.

46

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

1шт.

Consists Of Ref. Number 47

1шт.

47

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

48

167321A1

TEE

2шт.

49

161704A1

ADAPTER

2шт.

50

KHJ11460

ADAPTER

2шт.

51

KHR24010

PRESSURE SWITCH

2шт.

53

KRJ4750

HOSE,410.00 mm

1шт.

54

164238A1

HOSE ASSY.

1шт.

55

151872A1

HOSE ASSY.

1шт.

56

151872A1

HOSE ASSY.

1шт.

62

150498A1

MOUNTING CLIP

300 mm

1шт.

63

150913A1

ELBOW,90 Degree, 1/4" O-Ring x 1/4"

2шт.

Consists Of Ref. Number 64

1шт.

64

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

65

KHJ1951

CLAMP

3шт.

66

627-8012

BOLT,Hex, M8 x 1.25 x 12mm, Cl 10.9, Full Thd

6шт.

67

153081A1

WASHER

6шт.

68

KHR3352

HARNESS

1шт.

69

KHR3353

HARNESS

1шт.

Pick Hammer

1шт.

80

150067A1

MOUNTING CLIP

150 mm

2шт.

Not Illustrated

1шт.
