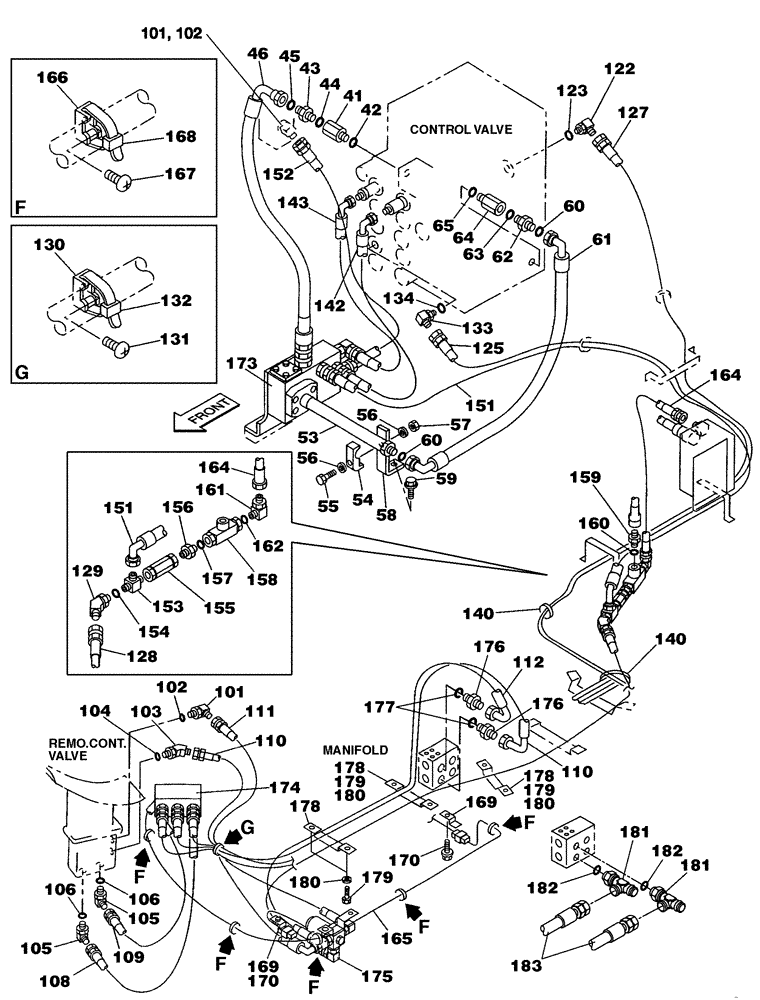

Запчасти Case CX350 (08-137-00[01]) - HYDRAULIC CIRCUIT - OPTIONAL - 3-WAY (08) - HYDRAULICS

41

152012A1

ELEC CONNECTOR

1шт.

Consists Of Ref. Number 42

1шт.

42

154503A1

O-RING

1шт.

43

KHJ1348

ADAPTER

1шт.

Consists Of Ref. Number 44

1шт.

44

154503A1

O-RING

1шт.

45

KHJ1360

O-RING,0.07" Thk x 0.739" ID

2шт.

46

KSJ2803

HYDRAULIC HOSE,19.05 mm ID x 600.00 mm

1шт.

53

KSJ2805

HYD TUBE,20.8 mm ID x 27.2 mm OD

1шт.

54

151486A1

CLAMP BRACKET

1шт.

55

827-12070

BOLT,Hex, M12 x 1.75 x 70mm, Cl 10.9

1шт.

56

150811A1

WASHER

M12

2шт.

57

829-1412

NUT,M12, Cl 10.9

1шт.

58

KSJ2749

BRACKET

1шт.

59

166352A1

BOLT

1шт.

60

KHJ1360

O-RING,0.07" Thk x 0.739" ID

2шт.

61

KRJ5937

HYDRAULIC HOSE,19.00 mm ID x 720.00 mm

1шт.

62

KHJ1348

ADAPTER

1шт.

Consists Of Ref. Number 63

1шт.

63

154503A1

O-RING

1шт.

64

159198A1

ADAPTER

1шт.

Consists Of Ref. Number 65

1шт.

65

154503A1

O-RING

1шт.

101

150933A1

ELBOW

2шт.

Consists Of Ref. Number 102

1шт.

102

154467A1

O-RING,10.8mm ID x 2.4mm Width

2шт.

103

KHJ0994

ADAPTER

1шт.

Consists Of Ref. Number 104

1шт.

104

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

105

150913A1

ELBOW,90 Degree, 1/4" O-Ring x 1/4"

2шт.

Consists Of Ref. Number 106

1шт.

106

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

108

161483A1

HOSE ASSY.

450 mm (17-3/4 in)

1шт.

109

165147A1

HOSE ASSY.

1шт.

110

164236A1

HOSE ASSY.

1000 mm (39-3/8 in)

1шт.

111

159013A1

HOSE ASSY.

1шт.

112

159235A1

HYDRAULIC HOSE

1шт.

122

150913A1

ELBOW,90 Degree, 1/4" O-Ring x 1/4"

1шт.

Consists Of Ref. Number 123

1шт.

123

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

125

KHJ1772

HOSE

1шт.

127

157839A1

HOSE,6.3 mm ID x 3900.00 mm

3900 mm (153-5/8 in)

1шт.

128

152581A1

HOSE,6.3mm ID x 1900mm L

1шт.

129

KHJ1222

ELBOW

1шт.

130

150860A1

COLLAR

1шт.

131

840-168

SCREW,Pan, M6 x 1 x 8mm, Cl 4.8

1шт.

132

150496A1

MOUNTING CLIP

250 mm

1шт.

133

150913A1

ELBOW,90 Degree, 1/4" O-Ring x 1/4"

1шт.

Consists Of Ref. Number 134

1шт.

134

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

140

150071A1

MOUNTING CLIP

380 mm

1шт.

142

159019A1

HOSE ASSY.

900 mm (35-1/2 in)

1шт.

143

159019A1

HOSE ASSY.

900 mm (35-1/2 in)

1шт.

151

161648A1

HOSE ASSY.

1шт.

152

152514A1

HOSE,63mm ID x 1000mm L

1шт.

153

159497A1

TEE

1шт.

Consists Of Ref. Number 154

1шт.

154

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

155

167853A1

ADAPTER

1шт.

156

162654A1

HYD CONNECTOR

1шт.

Consists Of Ref. Number 157

1шт.

157

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

158

KHJ17090

VALVE PRESSURE RELIE

1шт.

159

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

1шт.

Consists Of Ref. Number 160

1шт.

160

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

161

150913A1

ELBOW,90 Degree, 1/4" O-Ring x 1/4"

1шт.

Consists Of Ref. Number 162

1шт.

162

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

164

164727A1

HYDRAULIC HOSE,6.30 mm ID x 900.00 mm

1шт.

165

KHR3351

HARNESS

1шт.

166

150860A1

COLLAR

5шт.

167

840-168

SCREW,Pan, M6 x 1 x 8mm, Cl 4.8

5шт.

168

150496A1

MOUNTING CLIP

250 mm

5шт.

169

165405A1

CLIP

2шт.

170

156559A1

BOLT,High Strength, Hex, M6 x 12mm, W/ LW

2шт.

173

KHJ1340

VALVE

1шт.

See Page(s) 08-143-00

1шт.

174

KHJ17100

VALVE PRESSURE RELIE

1шт.

See Page(s) 08-143-00

1шт.

175

162538A1

VALVE

1шт.

See Page(s) 08-143-00

1шт.

176

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

2шт.

Consists Of Ref. Number 177

1шт.

177

154467A1

O-RING,10.8mm ID x 2.4mm Width

2шт.

178

KHJ1951

CLAMP

3шт.

179

627-8012

BOLT,Hex, M8 x 1.25 x 12mm, Cl 10.9, Full Thd

6шт.

180

153081A1

WASHER

6шт.

181

159497A1

TEE

2шт.

With Second Option

1шт.

Consists Of Ref. Number 182

1шт.

182

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

183

REF

INSTRUCTION

1шт.

See Page(s) 08-145-02

1шт.
