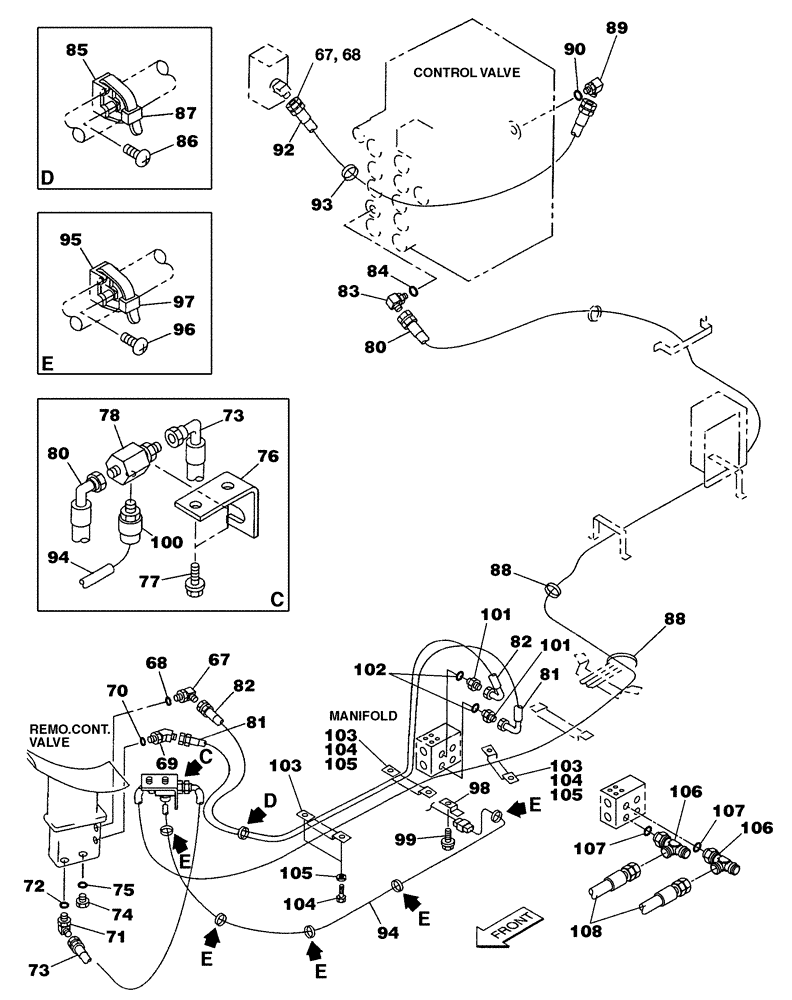

Запчасти Case CX350 (08-131-00[01]) - HYDRAULIC CIRCUIT - PICK HAMMER (08) - HYDRAULICS
![Схема запчастей Case CX350 - (08-131-00[01]) - HYDRAULIC CIRCUIT - PICK HAMMER (08) - HYDRAULICS](https://partsell.ru/storage/images/casece/1312732.png)
№
Артикул
Название
Примечание
Количество
67
150933A1
ELBOW
2шт.
Consists Of Ref. Number 68
1шт.
68
154467A1
O-RING,10.8mm ID x 2.4mm Width
2шт.
69
KHJ0994
ADAPTER
1шт.
Consists Of Ref. Number 70
1шт.
70
154467A1
O-RING,10.8mm ID x 2.4mm Width
1шт.
71
150913A1
ELBOW,90 Degree, 1/4" O-Ring x 1/4"
1шт.
Consists Of Ref. Number 72
1шт.
72
154467A1
O-RING,10.8mm ID x 2.4mm Width
1шт.
73
161483A1
HOSE ASSY.
450 mm (17-3/4 in)
1шт.
74
159002A1
PLUG
1шт.
Consists Of Ref. Number 75
1шт.
75
154467A1
O-RING,10.8mm ID x 2.4mm Width
1шт.
76
KHJ2127
BRACKET
1шт.
77
166345A1
BOLT
2шт.
78
KHJ11470
ADAPTER
1шт.
80
KRJ4792
HOSE
1шт.
81
164236A1
HOSE ASSY.
1000 mm (39-3/8 in)
1шт.
82
159019A1
HOSE ASSY.
900 mm (35-1/2 in)
1шт.
83
150913A1
ELBOW,90 Degree, 1/4" O-Ring x 1/4"
1шт.
Consists Of Ref. Number 84
1шт.
84
154467A1
O-RING,10.8mm ID x 2.4mm Width
1шт.
85
150860A1
COLLAR
1шт.
86
840-168
SCREW,Pan, M6 x 1 x 8mm, Cl 4.8
1шт.
87
150496A1
MOUNTING CLIP
250 mm
1шт.
87a
150067A1
MOUNTING CLIP
150 mm
1шт.
Not Illustrated
1шт.
88
150071A1
MOUNTING CLIP
380 mm
1шт.
89
150913A1
ELBOW,90 Degree, 1/4" O-Ring x 1/4"
1шт.
Consists Of Ref. Number 90
1шт.
90
154467A1
O-RING,10.8mm ID x 2.4mm Width
1шт.
92
158100A1
HOSE
1шт.
93
150071A1
MOUNTING CLIP
380 mm
1шт.
94
KHR3350
HARNESS
1шт.
95
150860A1
COLLAR
5шт.
96
840-168
SCREW,Pan, M6 x 1 x 8mm, Cl 4.8
5шт.
97
150496A1
MOUNTING CLIP
250 mm
5шт.
98
165405A1
CLIP
1шт.
99
156559A1
BOLT,High Strength, Hex, M6 x 12mm, W/ LW
1шт.
100
KHR24010
PRESSURE SWITCH
1шт.
101
152127A1
HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT
2шт.
Consists Of Ref. Number 102
1шт.
102
154467A1
O-RING,10.8mm ID x 2.4mm Width
2шт.
103
KHJ1951
CLAMP
3шт.
104
627-8012
BOLT,Hex, M8 x 1.25 x 12mm, Cl 10.9, Full Thd
6шт.
105
153081A1
WASHER
6шт.
106
159497A1
TEE
2шт.
Consists Of Ref. Number 107
1шт.
With Second Option
1шт.
107
154467A1
O-RING,10.8mm ID x 2.4mm Width
1шт.
108
REF
INSTRUCTION
1шт.
See Page(s) 08-145-02
1шт.
