(08-113-01[01]) - HYDRAULIC CIRCUIT - PILOT

Запчасти Case CX350 (08-113-01[01]) - HYDRAULIC CIRCUIT - PILOT (08) - HYDRAULICS

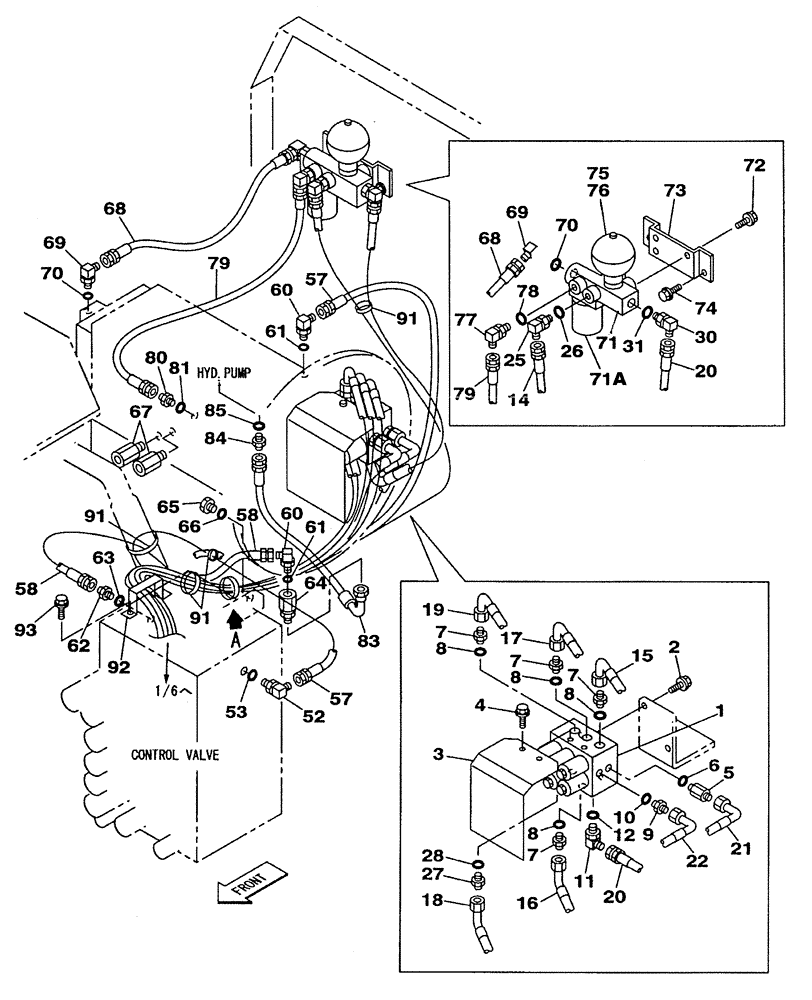

Схема запчастей Case CX350 - (08-113-01[01]) - HYDRAULIC CIRCUIT - PILOT (08) - HYDRAULICS
67
6
10
12
71a
60
2
58
7
85
92
27
64
26
74
20
80
7
66
63
79
31
69
3
17
61
30
73
91
22
84
62
91
8
9
61
8
65
18
57
1
53
78
8
91
8
79
14
71
28
77
68
83
70
58
60
68
81
20
4
75
93
7
5
19
72
70
7
25
69
15
57
76
21
16
52
11
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KHJ15460

SOLENOID VALVE

1шт.

See Page(s) 08-181-01 01

1шт.

2

166351A1

BOLT,Sems, M10 x 20mm

2шт.

3

KHJ1581

COVER

1шт.

4

156559A1

BOLT,High Strength, Hex, M6 x 12mm, W/ LW

2шт.

5

159226A1

ADAPTER

1шт.

Consists Of Ref. Number 6

1шт.

6

154475A1

O-RING

1шт.

7

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

4шт.

Consists Of Ref. Number 8

1шт.

8

154467A1

O-RING,10.8mm ID x 2.4mm Width

4шт.

9

152128A1

HYD CONNECTOR,3/8" NPT O-Ring x 3/8" NPT

1шт.

Consists Of Ref. Number 10

1шт.

10

154475A1

O-RING

1шт.

11

150916A1

ELBOW,90 Degree, 3/8" O-Ring x 3/8"

1шт.

Consists Of Ref. Number 12

1шт.

12

154475A1

O-RING

1шт.

14

161293A1

HOSE

3600 mm (141-3/4 in)

1шт.

15

162650A1

HOSE,3500.00 mm

1шт.

16

162649A1

HOSE,3100.00 mm

1шт.

17

164232A1

HOSE ASSY.

3150 mm (124-1/8 in)

1шт.

18

KTJ1786

HOSE

1шт.

19

KTJ1786

HOSE

1шт.

20

KMJ2204

HOSE

1шт.

21

164115A1

HYDRAULIC HOSE

1шт.

22

162531A1

HOSE

1шт.

25

150913A1

ELBOW,90 Degree, 1/4" O-Ring x 1/4"

1шт.

Consists Of Ref. Number 26

1шт.

26

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

27

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

1шт.

Consists Of Ref. Number 28

1шт.

28

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

30

157935A1

ELBOW

1шт.

Consists Of Ref. Number 31

1шт.

31

154487A1

O-RING

1шт.

52

150913A1

ELBOW,90 Degree, 1/4" O-Ring x 1/4"

1шт.

Consists Of Ref. Number 53

1шт.

53

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

57

157996A1

HOSE,6.3mm ID x 2750mm L

1шт.

58

152604A1

HOSE,63.00 mm ID x 1600.00 mm

1шт.

60

150913A1

ELBOW,90 Degree, 1/4" O-Ring x 1/4"

2шт.

Consists Of Ref. Number 61

1шт.

61

154467A1

O-RING,10.8mm ID x 2.4mm Width

2шт.

62

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

1шт.

Consists Of Ref. Number 63

1шт.

63

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

64

167662A1

FITTING

1шт.

65

159002A1

PLUG

1шт.

Consists Of Ref. Number 66

1шт.

66

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

67

KHV0373

STUD

2шт.

68

KHJ2427

HYDRAULIC HOSE,12.70 mm ID x 600.00 mm

1шт.

69

150919A1

ELBOW,90 Degree, 1/2" O-Ring x 1/2"

2шт.

Consists Of Ref. Number 70

1шт.

70

154487A1

O-RING

1шт.

71

KHJ2562

MANIFOLD

1шт.

Consists Of Ref. Number 71A, 71B

1шт.

71a

153233A1

HYDRAULIC OIL FILTER

1шт.

71b

164690A1

O-RING

1шт.

Not Illustrated

1шт.

72

166350A1

BOLT

3шт.

73

KRJ5948

BRACKET

1шт.

74

166351A1

BOLT,Sems, M10 x 20mm

2шт.

75

150894A1

ACCUMULATOR

1шт.

Consists Of Ref. Number 76

1шт.

76

154487A1

O-RING

1шт.

77

150913A1

ELBOW,90 Degree, 1/4" O-Ring x 1/4"

1шт.

Consists Of Ref. Number 78

1шт.

78

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

79

166480A1

HOSE

1шт.

80

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

1шт.

Consists Of Ref. Number 81

1шт.

81

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

83

161659A1

HYDRAULIC HOSE

1шт.

84

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

1шт.

Consists Of Ref. Number 85

1шт.

85

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

91

150071A1

MOUNTING CLIP

1шт.

92

159032A1

CLAMP

1шт.

93

166350A1

BOLT

2шт.
