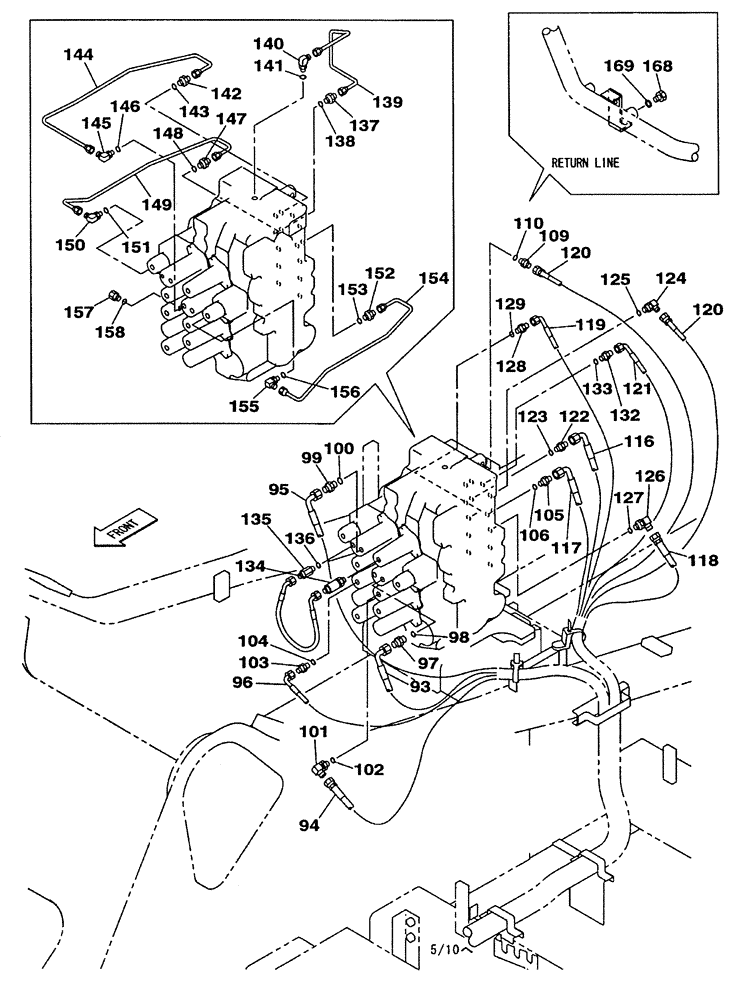

Запчасти Case CX350 (08-097-01[01]) - HYDRAULIC CIRCUIT - PILOT - WITHOUT VALVE, PRESSURE RELIEF (08) - HYDRAULICS

93

161487A1

HOSE ASSY.

1шт.

94

157972A1

HOSE ASSY.

2900 mm (114-1/4 in)

1шт.

95

KMJ1830

HOSE

1шт.

96

163359A1

HOSE ASSY.

1шт.

97

152128A1

HYD CONNECTOR,3/8" NPT O-Ring x 3/8" NPT

1шт.

Consists Of Ref. Number 98

1шт.

98

154475A1

O-RING

1шт.

99

152128A1

HYD CONNECTOR,3/8" NPT O-Ring x 3/8" NPT

1шт.

Consists Of Ref. Number 100

1шт.

100

154475A1

O-RING

1шт.

101

153559A1

ELBOW

1шт.

Consists Of Ref. Number 102

1шт.

102

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

103

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

1шт.

Consists Of Ref. Number 104

1шт.

104

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

105

152128A1

HYD CONNECTOR,3/8" NPT O-Ring x 3/8" NPT

1шт.

Consists Of Ref. Number 106

1шт.

106

154475A1

O-RING

1шт.

109

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

1шт.

Consists Of Ref. Number 110

1шт.

110

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

116

161487A1

HOSE ASSY.

2800 mm (110-1/4 in)

1шт.

117

KMJ1830

HOSE

1шт.

118

157970A1

HOSE ASSY.

2900 mm (114-1/4 in)

1шт.

119

163359A1

HOSE ASSY.

1шт.

120

152275A1

HOSE,63mm ID x 2900mm L

1шт.

121

162193A1

HOSE ASSY.

2900 mm (114-1/4 in)

1шт.

122

152128A1

HYD CONNECTOR,3/8" NPT O-Ring x 3/8" NPT

1шт.

Consists Of Ref. Number 123

1шт.

123

154475A1

O-RING

1шт.

124

150913A1

ELBOW,90 Degree, 1/4" O-Ring x 1/4"

1шт.

Consists Of Ref. Number 125

1шт.

125

154475A1

O-RING

1шт.

126

153559A1

ELBOW

1шт.

Consists Of Ref. Number 127

1шт.

127

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

128

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

1шт.

Consists Of Ref. Number 129

1шт.

129

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

132

162366A1

ADAPTER

1шт.

Consists Of Ref. Number 133

1шт.

133

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

134

KHJ2354

VALVE, CUSHION

1шт.

See Page(s) 08-179-00

1шт.

135

162554A1

FITTING

1шт.

136

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

137

KHJ1821

NIPPLE, LUBE

NIPPLE

1шт.

Consists Of Ref. Number 138

1шт.

138

154475A1

O-RING

1шт.

139

KRJ6097

TUBE ASSY.

1шт.

Consists Of Ref. Number 140

1шт.

140

KHJ1391

COUPLING

1шт.

Consists Of Ref. Number 141

1шт.

141

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

142

KHJ1390

NIPPLE, LUBE

NIPPLE

1шт.

Consists Of Ref. Number 143

1шт.

143

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

144

KRJ6098

HYD TUBE,6 mm ID x 8 mm OD

1шт.

145

KHJ1391

COUPLING

1шт.

146

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

147

KHJ1390

NIPPLE, LUBE

NIPPLE

1шт.

Consists Of Ref. Number 148

1шт.

148

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

149

KRJ6099

HYD TUBE,6 mm ID x 8 mm OD

1шт.

150

KHJ1391

COUPLING

1шт.

Consists Of Ref. Number 151

1шт.

151

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

152

KHJ1390

NIPPLE, LUBE

NIPPLE

1шт.

Consists Of Ref. Number 153

1шт.

153

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

154

KRJ6099

HYD TUBE,6 mm ID x 8 mm OD

1шт.

155

KHJ1391

COUPLING

1шт.

Consists Of Ref. Number 156

1шт.

156

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

157

KHJ11450

ADAPTER

1шт.

Consists Of Ref. Number 158

1шт.

158

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

168

152924A1

PLUG

1шт.

Consists Of Ref. Number 160

1шт.

169

154503A1

O-RING

1шт.
