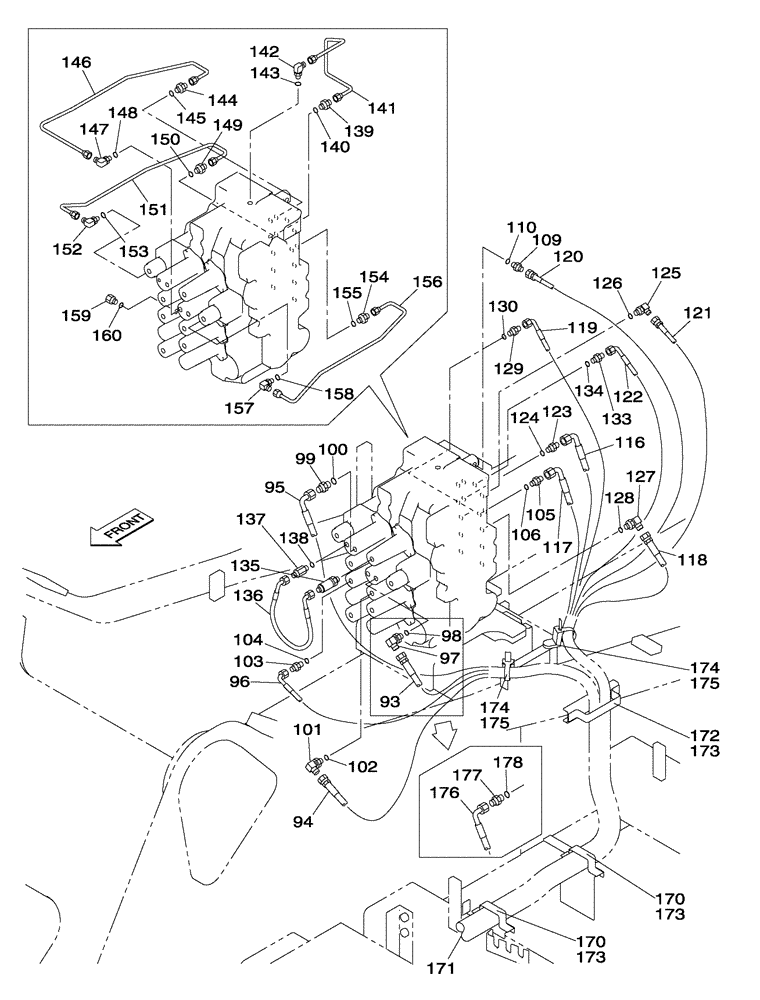

Запчасти Case CX350 (08-097-00[01]) - HYDRAULIC CIRCUIT - PILOT - WITHOUT VALVE, PRESSURE RELIEF (08) - HYDRAULICS

93

157971A1

HOSE

1шт.

94

157972A1

HOSE ASSY.

2900 mm (114-1/4 in)

1шт.

95

KMJ1830

HOSE

1шт.

96

163359A1

HOSE ASSY.

1шт.

97

150916A1

ELBOW,90 Degree, 3/8" O-Ring x 3/8"

1шт.

Consists Of Ref. Number 98

1шт.

98

154475A1

O-RING

1шт.

99

152128A1

HYD CONNECTOR,3/8" NPT O-Ring x 3/8" NPT

1шт.

Consists Of Ref. Number 100

1шт.

100

154475A1

O-RING

1шт.

101

153559A1

ELBOW

1шт.

Consists Of Ref. Number 102

1шт.

102

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

103

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

1шт.

Consists Of Ref. Number 104

1шт.

104

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

105

152128A1

HYD CONNECTOR,3/8" NPT O-Ring x 3/8" NPT

1шт.

Consists Of Ref. Number 106

1шт.

106

154475A1

O-RING

1шт.

109

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

1шт.

Consists Of Ref. Number 110

1шт.

110

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

116

161487A1

HOSE ASSY.

2800 mm (110-1/4 in)

1шт.

117

KMJ1830

HOSE

1шт.

118

157972A1

HOSE ASSY.

2900 mm (114-1/4 in)

1шт.

119

163359A1

HOSE ASSY.

1шт.

120

KAJ3508

HYDRAULIC HOSE

1шт.

121

152275A1

HOSE,63mm ID x 2900mm L

1шт.

122

162193A1

HOSE ASSY.

1шт.

123

152128A1

HYD CONNECTOR,3/8" NPT O-Ring x 3/8" NPT

1шт.

Consists Of Ref. Number 124

1шт.

124

154475A1

O-RING

1шт.

125

150913A1

ELBOW,90 Degree, 1/4" O-Ring x 1/4"

1шт.

Consists Of Ref. Number 126

1шт.

126

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

127

153559A1

ELBOW

1шт.

Consists Of Ref. Number 128

1шт.

128

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

129

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

1шт.

Consists Of Ref. Number 130

1шт.

130

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

133

162366A1

ADAPTER

1шт.

Consists Of Ref. Number 134

1шт.

134

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

135

KHJ1399

VALVE, CUSHION

1шт.

See Page(s) 08-179-00

1шт.

135

KHJ2354

VALVE, CUSHION

1шт.

See Page(s) 08-179-05

1шт.

136

161176A1

HOSE ASSY.

450 mm (17-3/4 in)

1шт.

137

162554A1

FITTING

1шт.

Consists Of Ref. Number 138

1шт.

138

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

139

KHJ1821

NIPPLE, LUBE

NIPPLE

1шт.

Consists Of Ref. Number 140

1шт.

140

154475A1

O-RING

1шт.

141

KRJ6097

TUBE ASSY.

1шт.

142

KHJ1391

COUPLING

1шт.

Consists Of Ref. Number 143

1шт.

143

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

144

KHJ1390

NIPPLE, LUBE

NIPPLE

1шт.

Consists Of Ref. Number 145

1шт.

145

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

146

KRJ6098

HYD TUBE,6 mm ID x 8 mm OD

1шт.

147

KHJ1391

COUPLING

1шт.

Consists Of Ref. Number 148

1шт.

148

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

149

KHJ1390

NIPPLE, LUBE

NIPPLE

1шт.

Consists Of Ref. Number 150

1шт.

150

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

151

KRJ6099

HYD TUBE,6 mm ID x 8 mm OD

1шт.

152

KHJ1391

COUPLING

1шт.

Consists Of Ref. Number 153

1шт.

153

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

154

KHJ1390

NIPPLE, LUBE

NIPPLE

1шт.

Consists Of Ref. Number 155

1шт.

155

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

156

KRJ6099

HYD TUBE,6 mm ID x 8 mm OD

1шт.

157

KHJ1391

COUPLING

1шт.

Consists Of Ref. Number 158

1шт.

158

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

159

KHJ11450

ADAPTER

1шт.

Consists Of Ref. Number 160

1шт.

160

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

170

161095A1

CLAMP

2шт.

171

REF

INSTRUCTION

1шт.

See Page(s) 08-089-00

1шт.

Circuit Hydraulic

1шт.

172

KHJ1906

CLAMP

1шт.

173

166350A1

BOLT

6шт.

174

KHR2581

CLAMP

2шт.

175

KHJ1215

BOLT,Spcl

2шт.

176

161487A1

HOSE ASSY.

2800 mm (110-1/4 in)

1шт.

177

152128A1

HYD CONNECTOR,3/8" NPT O-Ring x 3/8" NPT

1шт.

Consists Of Ref. Number 178

1шт.

178

154475A1

O-RING

1шт.
