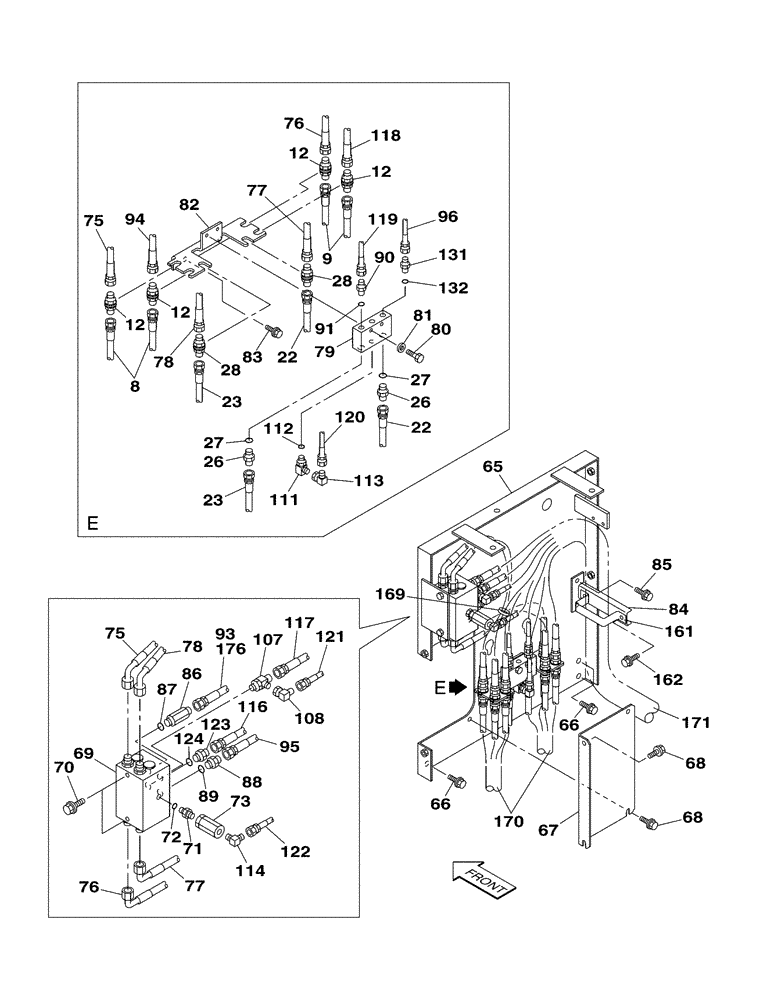

Запчасти Case CX350 (08-089-00[01]) - HYDRAULIC CIRCUIT - PILOT - WITHOUT VALVE, PRESSURE RELIEF (08) - HYDRAULICS
№
Артикул
Название
Примечание
Количество
8
KRJ4336
HYDRAULIC HOSE,9.50 mm ID x 2200.00 mm
2шт.
9
168025A1
HYDRAULIC HOSE,9.50 mm ID x 1950.00 mm
2шт.
12
162826A1
ADAPTER
4шт.
22
KHJ1345
HYDRAULIC HOSE,9.52 mm ID x 2150.00 mm
2шт.
23
168025A1
HYDRAULIC HOSE,9.50 mm ID x 1950.00 mm
2шт.
26
152747A1
ADAPTER
2шт.
Consists Of Ref. Number 27
1шт.
27
154467A1
O-RING,10.8mm ID x 2.4mm Width
1шт.
28
162826A1
ADAPTER
2шт.
65
KTJ2107
BRACKET
1шт.
66
166352A1
BOLT
3шт.
67
KTJ2108
COVER
1шт.
68
166052A1
BOLT
4шт.
69
KSJ2765
VALVE, CUSHION
1шт.
See Page(s) 08-189-05
1шт.
70
166052A1
BOLT
2шт.
71
152899A1
HYD CONNECTOR
1шт.
Consists Of Ref. Number 72
1шт.
72
154467A1
O-RING,10.8mm ID x 2.4mm Width
1шт.
75
KRJ3569
HOSE
1шт.
76
162835A1
HOSE ASSY.
1шт.
77
162835A1
HOSE ASSY.
1шт.
78
KRJ3569
HOSE
1шт.
79
KHJ17120
VALVE SECTION
1шт.
80
827-8045
BOLT,Hex, M8 x 1.25 x 45mm, Cl 10.9
2шт.
81
153081A1
WASHER
2шт.
82
KHJ1576
BRACKET
1шт.
83
166052A1
BOLT
2шт.
84
KTJ2109
BRACKET
1шт.
85
166052A1
BOLT
2шт.
86
KAJ2351
FITTING
1шт.
Consists Of Ref. Number 87
1шт.
87
154475A1
O-RING
1шт.
88
152128A1
HYD CONNECTOR,3/8" NPT O-Ring x 3/8" NPT
1шт.
Consists Of Ref. Number 89
1шт.
89
154475A1
O-RING
1шт.
90
152127A1
HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT
1шт.
Consists Of Ref. Number 91
1шт.
91
154467A1
O-RING,10.8mm ID x 2.4mm Width
1шт.
93
157971A1
HOSE
1шт.
94
157972A1
HOSE ASSY.
2900 mm (114-1/4 in)
1шт.
95
KMJ1830
HOSE
1шт.
96
163359A1
HOSE ASSY.
1шт.
107
163422A1
TEE
1шт.
108
163814A1
ELBOW
1шт.
111
KHJ2773
TEE
1шт.
Consists Of Ref. Number 112
1шт.
112
154467A1
O-RING,10.8mm ID x 2.4mm Width
1шт.
113
163814A1
ELBOW
1шт.
114
153596A1
ADAPTER
1шт.
116
161487A1
HOSE ASSY.
2800 mm (110-1/4 in)
1шт.
117
KMJ1830
HOSE
1шт.
118
157972A1
HOSE ASSY.
2900 mm (114-1/4 in)
1шт.
119
163359A1
HOSE ASSY.
1шт.
120
152275A1
HOSE,63mm ID x 2900mm L
1шт.
121
152275A1
HOSE,63mm ID x 2900mm L
1шт.
122
162193A1
HOSE ASSY.
1шт.
123
152128A1
HYD CONNECTOR,3/8" NPT O-Ring x 3/8" NPT
1шт.
Consists Of Ref. Number 124
1шт.
124
154475A1
O-RING
1шт.
131
152127A1
HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT
1шт.
Consists Of Ref. Number 132
1шт.
132
154467A1
O-RING,10.8mm ID x 2.4mm Width
1шт.
161
159036A1
CLAMP
1шт.
162
166350A1
BOLT
2шт.
169
150071A1
MOUNTING CLIP
380 mm
1шт.
170
REF
INSTRUCTION
1шт.
See Page(s) 08-085-00
1шт.
171
REF
INSTRUCTION
1шт.
See Page(s) 08-097-00
1шт.
176
161487A1
HOSE ASSY.
2800 mm (110-1/4 in)
1шт.
Выбрано товаров: 72
