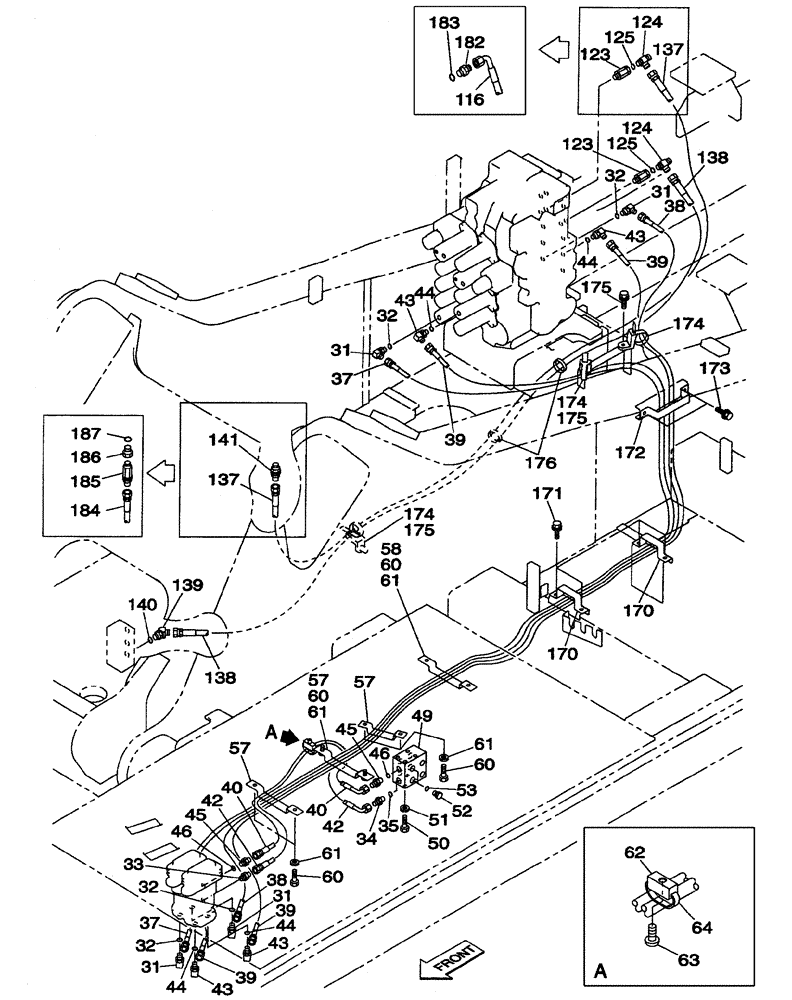

Запчасти Case CX350 (08-081-00[01]) - HYDRAULIC CIRCUIT - PILOT - WITH VALVE, PRESSURE RELIEF (08) - HYDRAULICS
![Схема запчастей Case CX350 - (08-081-00[01]) - HYDRAULIC CIRCUIT - PILOT - WITH VALVE, PRESSURE RELIEF (08) - HYDRAULICS](https://partsell.ru/storage/images/casece/1214460.png)
№
Артикул
Название
Примечание
Количество
31
150913A1
ELBOW,90 Degree, 1/4" O-Ring x 1/4"
4шт.
Consists Of Ref. Number 32
1шт.
32
154467A1
O-RING,10.8mm ID x 2.4mm Width
1шт.
33
161841A1
HYD CONNECTOR
1шт.
34
152127A1
HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT
1шт.
Consists Of Ref. Number 35
1шт.
35
154467A1
O-RING,10.8mm ID x 2.4mm Width
1шт.
37
161293A1
HOSE
3600 mm (141-3/4 in)
1шт.
38
161292A1
HOSE,3550.00 mm
1шт.
39
157838A1
HOSE,6.5 mm ID x 3500.00 mm
3500 mm (137-7/8 in)
2шт.
40
159019A1
HOSE ASSY.
900 mm (35-1/2 in)
1шт.
42
KAJ3524
HYDRAULIC HOSE
1шт.
43
150913A1
ELBOW,90 Degree, 1/4" O-Ring x 1/4"
4шт.
Consists Of Ref. Number 44
1шт.
44
154467A1
O-RING,10.8mm ID x 2.4mm Width
1шт.
45
152127A1
HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT
2шт.
Consists Of Ref. Number 46
1шт.
46
154467A1
O-RING,10.8mm ID x 2.4mm Width
1шт.
47
152128A1
HYD CONNECTOR,3/8" NPT O-Ring x 3/8" NPT
2шт.
49
KRJ5903
MANIFOLD
1шт.
50
828-8100
BOLT,Hex, M8 x 1.25 x 100mm, Cl 10.9
M8 x 100
4шт.
51
153081A1
WASHER
4шт.
52
159002A1
PLUG
2шт.
Consists Of Ref. Number 53
1шт.
53
154467A1
O-RING,10.8mm ID x 2.4mm Width
1шт.
57
KHJ1394
CLAMP
3шт.
58
KHJ1393
CLAMP
1шт.
60
627-8012
BOLT,Hex, M8 x 1.25 x 12mm, Cl 10.9, Full Thd
8шт.
61
153081A1
WASHER
8шт.
62
150860A1
COLLAR
1шт.
63
840-168
SCREW,Pan, M6 x 1 x 8mm, Cl 4.8
1шт.
64
150071A1
MOUNTING CLIP
380 mm
1шт.
116
161487A1
HOSE ASSY.
2800 mm (110-1/4 in)
1шт.
See Page(s) 08-103-00
1шт.
123
KHV0373
STUD
2шт.
123
KHV0373
STUD
1шт.
124
164107A1
TEE,3/8" ORB x 3/8" - 19 NPT x 3/8" - 19 NPT
2шт.
Consists Of Ref. Number 125
1шт.
124
164107A1
TEE,3/8" ORB x 3/8" - 19 NPT x 3/8" - 19 NPT
1шт.
Consists Of Ref. Number 125
1шт.
125
154475A1
O-RING
1шт.
137
159079A1
HYDRAULIC HOSE
2350 mm (92-5/8 in)
1шт.
138
157968A1
HOSE
1шт.
139
157584A1
ELBOW
1шт.
Consists Of Ref. Number 140
1шт.
140
154475A1
O-RING
1шт.
141
162826A1
ADAPTER
1шт.
170
161095A1
CLAMP
2шт.
171
166350A1
BOLT
4шт.
172
KHJ1906
CLAMP
1шт.
173
166350A1
BOLT
2шт.
174
KHR2581
CLAMP
3шт.
175
KHJ1215
BOLT,Spcl
3шт.
176
150071A1
MOUNTING CLIP
380 mm
1шт.
182
152128A1
HYD CONNECTOR,3/8" NPT O-Ring x 3/8" NPT
1шт.
Consists Of Ref. Number 183
1шт.
183
154475A1
O-RING
1шт.
184
159066A1
HOSE
1шт.
See Page(s) 08-093-00
1шт.
185
KHJ1078
ADAPTER
1шт.
186
KRJ1231
ADAPTER
1шт.
Consists Of Ref. Number 187
1шт.
187
154475A1
O-RING
1шт.
Выбрано товаров: 63
