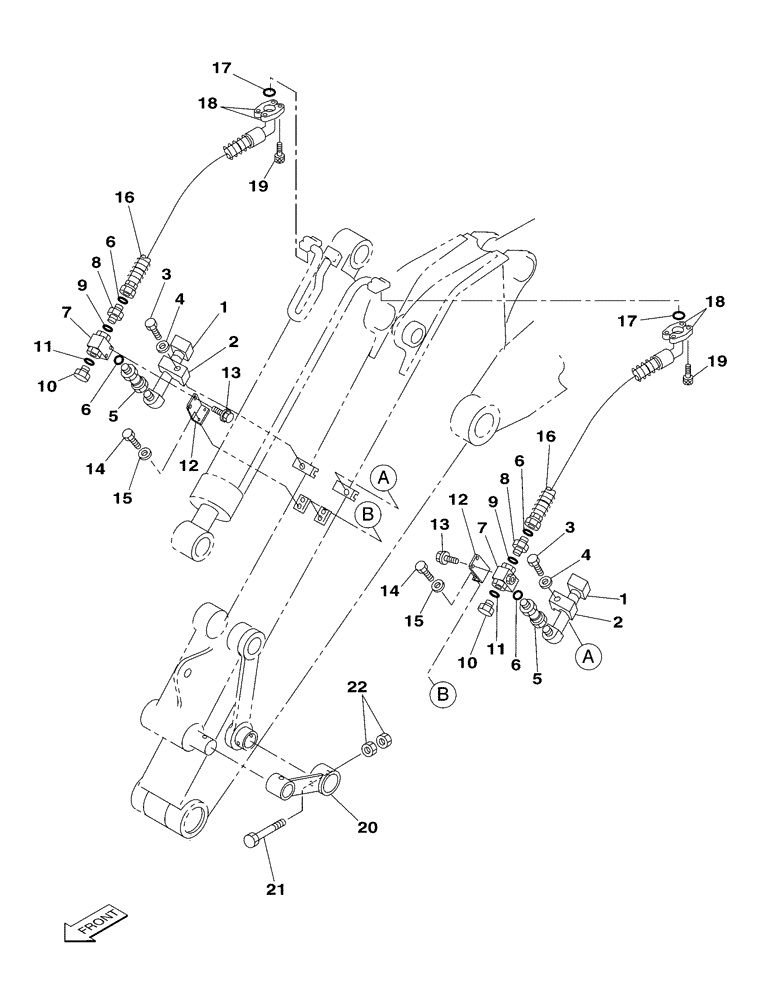

Запчасти Case CX350 (08-075-00[01]) - HYDRAULIC CIRCUIT - CLAMSHELL OR BUCKET - DIPPER (2.63 M) (08) - HYDRAULICS

1

KSV1567

TUBE ASSY.,26 mm ID x 34 mm OD

2шт.

2

150777A1

COLLAR

2шт.

3

827-16070

BOLT,Hex, M16 x 2 x 70mm, Cl 10.9

2шт.

4

150814A1

WASHER,17mm ID x 32mm OD x 4.5mm Thk

2шт.

5

KHV0326

ADAPTER

2шт.

6

KHJ1361

O-RING,0.07" Thk x 0.926" ID

4шт.

7

168905A1

VALVE

2шт.

8

KHJ1349

ADAPTER

2шт.

Consists Of Ref. Number 9

1шт.

9

154523A1

O-RING

1шт.

10

162659A1

PLUG

2шт.

Consists Of Ref. Number 11

1шт.

11

154523A1

O-RING

1шт.

12

KSV1565

SUPPORT

2шт.

13

166052A1

BOLT

4шт.

14

627-12025

BOLT,Hex, M12 x 1.75 x 25mm, Cl 10.9, Full Thd

4шт.

15

150811A1

WASHER

M12

4шт.

16

KSV1562

HYDRAULIC HOSE,25.40 mm ID x 1000.00 mm

2шт.

17

155211A1

O-RING

2шт.

18

153459A1

FLANGE

4шт.

19

862-10035

HEX SOC SCREW,M10 x 35mm, Cl 12.9

8шт.

20

KSV1564

SUPPORT

1шт.

21

132R024Y220R

BOLT,M24 x 2 x 220mm

1шт.

22

829-13424

NUT,M24 x 2, Cl 10

2шт.
