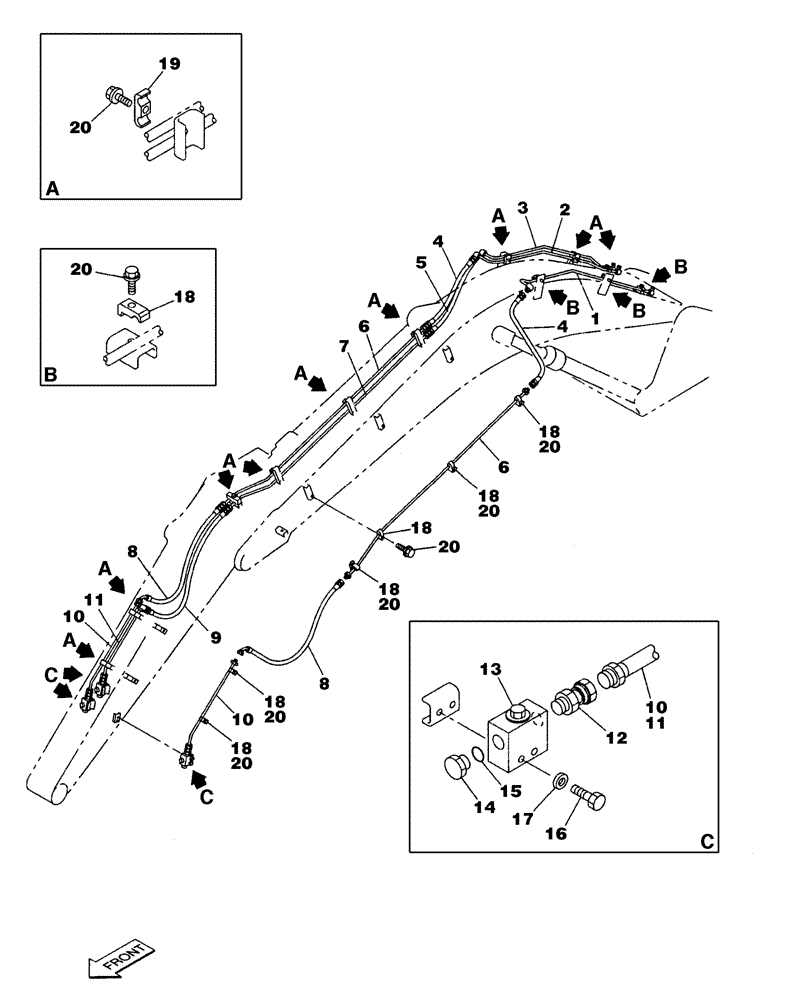

Запчасти Case CX350 (08-071-09[01]) - HYDRAULIC CIRCUIT, SMALL FLOW - DIPPER (3.25 M) (08) - HYDRAULICS

1

KSV1623

PIPE ASSY.

1шт.

2

KSV1624

PIPE ASSY.

1шт.

3

KSV1625

PIPE ASSY.

1шт.

4

KRJ4807

HYDRAULIC HOSE,19.00 mm ID x 1050.00 mm

2шт.

5

KMJ2827

HOSE ASSY.,19.00 mm ID x 1150.00 mm

1шт.

6

KSV1626

PIPE ASSY.

2шт.

7

KSV1627

PIPE ASSY.

1шт.

8

KTV1433

HYDRAULIC HOSE,19.00 mm ID x 1700.00 mm

2шт.

9

KTV1432

HYDRAULIC HOSE,19.00 mm ID x 1700.00 mm

1шт.

10

KTV1430

HYD TUBE,20.8 mm ID x 27.2 mm OD

2шт.

11

KTV1431

HYD TUBE,21.6 mm ID x 27.2 mm OD

1шт.

12

167248A1

FITTING

3шт.

13

KHV0453

VALVE

3шт.

14

152924A1

PLUG

3шт.

Consists Of Ref. Number 15

1шт.

15

154503A1

O-RING

1шт.

16

827-12070

BOLT,Hex, M12 x 1.75 x 70mm, Cl 10.9

6шт.

17

150811A1

WASHER

6шт.

18

151486A1

CLAMP BRACKET

9шт.

19

152085A1

COLLAR

9шт.

20

167183A1

BOLT,Sems, M12 x 60mm, Cl 10.9

18шт.
