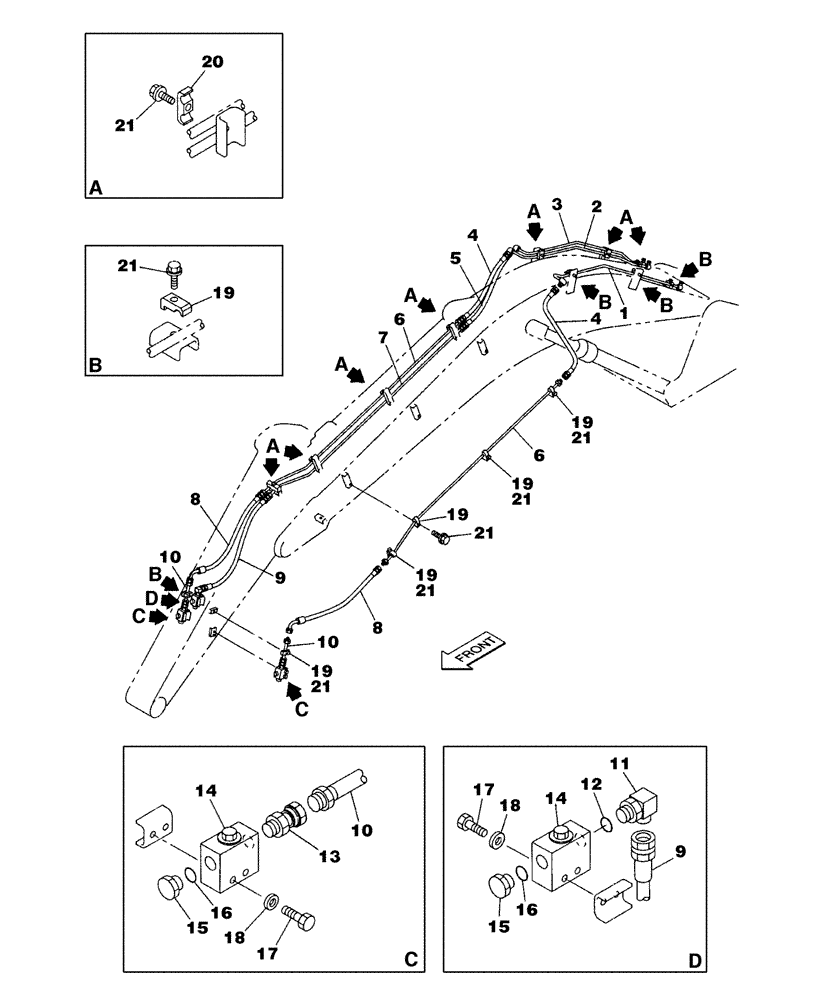

Запчасти Case CX350 (08-071-05[01]) - HYDRAULIC CIRCUIT, SMALL FLOW - DIPPER (2.20 M) (08) - HYDRAULICS

1

KSV1623

PIPE ASSY.

1шт.

2

KSV1624

PIPE ASSY.

1шт.

3

KSV1625

PIPE ASSY.

1шт.

4

KRJ4807

HYDRAULIC HOSE,19.00 mm ID x 1050.00 mm

2шт.

5

KMJ2827

HOSE ASSY.,19.00 mm ID x 1150.00 mm

1шт.

6

KSV1626

PIPE ASSY.

2шт.

7

KSV1627

PIPE ASSY.

1шт.

8

KSV1634

HYDRAULIC HOSE,19.05 mm ID x 1500.00 mm

2шт.

9

KSV1635

HYDRAULIC HOSE,19.05 mm ID x 1400.00 mm

1шт.

10

KTV1439

HYD TUBE,20.8 mm ID x 27.2 mm OD

2шт.

11

157580A1

ELBOW,90 Degree, 3/4" O-Ring x 3/4"

1шт.

Consists Of Ref. Number 12

1шт.

12

154503A1

O-RING

1шт.

13

167248A1

FITTING

2шт.

14

KHV0453

VALVE

3шт.

15

152924A1

PLUG

3шт.

Consists Of Ref. Number 16

1шт.

16

154503A1

O-RING

1шт.

17

827-12070

BOLT,Hex, M12 x 1.75 x 70mm, Cl 10.9

6шт.

18

150811A1

WASHER

6шт.

19

151486A1

CLAMP BRACKET

9шт.

20

152085A1

COLLAR

7шт.

21

167183A1

BOLT,Sems, M12 x 60mm, Cl 10.9

16шт.
