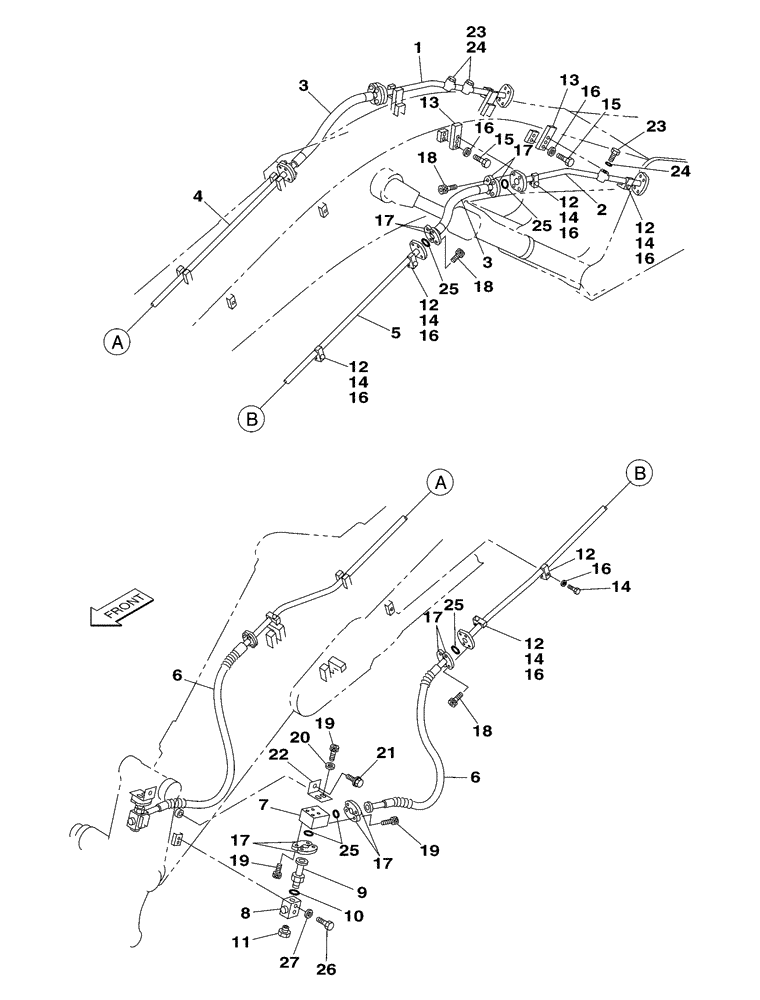

Запчасти Case CX350 (08-065-00[01]) - HYDRAULIC CIRCUIT - PICK HAMMER - DIPPER (2.20 M) (08) - HYDRAULICS

1

KSV1383

HYD TUBE,34.7 mm ID x 42.7 mm OD

1шт.

2

KSV1384

TUBE ASSY.,34.7 mm ID x 42.7 mm OD

1шт.

3

162610A1

HOSE ASSY.

1300 mm (51-1/4 in)

2шт.

4

KSV1385

HYD TUBE,34.7 mm ID x 42.7 mm OD

1шт.

5

KSV1386

HYD TUBE,34.7 mm ID x 42.7 mm OD

1шт.

6

KSV1546

HYDRAULIC HOSE,31.80 mm ID x 2200.00 mm

2шт.

7

KRV3226

MANIFOLD

2шт.

8

KHV0389

VALVE

2шт.

9

KHV0451

FITTING

2шт.

Consists Of Ref. Number 10

1шт.

10

154559A1

O-RING

1шт.

11

162335A1

PLUG

2шт.

12

KTV1209

CLAMP

12шт.

13

KTV1210

SUPPORT

4шт.

14

827-16080

BOLT,Hex, M16 x 2 x 80mm, Cl 10.9

12шт.

15

627-16050

BOLT,Hex, M16 x 2 x 50mm, Cl 10.9, Full Thd

8шт.

16

150814A1

WASHER,17mm ID x 32mm OD x 4.5mm Thk

20шт.

17

150124A1

FLANGE

20шт.

18

862-14050

HEX SOC SCREW,M14 x 50mm, Cl 12.9

M14 x 50; 12.9

24шт.

19

108R014Y045R

BOLT,Hex Skt, M14 x 45mm, Cl 12.9

M14 x 45

20шт.

20

150418A1

WASHER

4шт.

21

166373A1

BOLT,Sems, M16 x 40mm

2шт.

22

KRV3227

SUPPORT

2шт.

23

152924A1

PLUG

3шт.

Consists Of Ref. Number 24

1шт.

24

154503A1

O-RING

1шт.

25

164450A1

O-RING

10шт.

26

827-12080

BOLT,Hex, M12 x 1.75 x 80mm, Cl 10.9

4шт.

27

150811A1

WASHER

M12

4шт.
