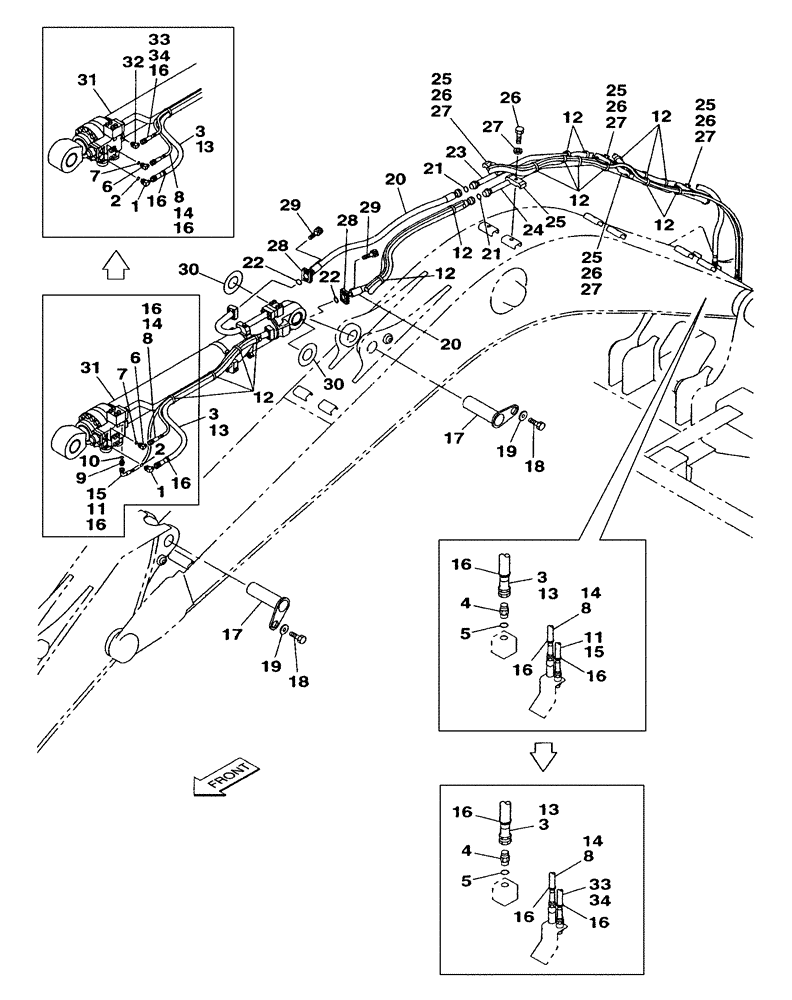

Запчасти Case CX350 (08-053-00[01]) - HYDRAULIC CIRCUIT - DIPPER CYLINDER - WITH VALVE, PRESSURE RELIEF (08) - HYDRAULICS

1

157580A1

ELBOW,90 Degree, 3/4" O-Ring x 3/4"

1шт.

Consists Of Ref. Number 2

1шт.

2

154503A1

O-RING

1шт.

3

MPV2073

HOSE ASSY.,19.00 mm ID x 6935.00 mm

1шт.

4

164176A1

ADAPTER

1шт.

Consists Of Ref. Number 5

1шт.

5

154487A1

O-RING

1шт.

6

150916A1

ELBOW,90 Degree, 3/8" O-Ring x 3/8"

1шт.

Consists Of Ref. Number 7

1шт.

7

154475A1

O-RING

1шт.

8

162008A1

HOSE

1шт.

9

152128A1

HYD CONNECTOR,3/8" NPT O-Ring x 3/8" NPT

1шт.

Consists Of Ref. Number 10

1шт.

10

154475A1

O-RING

1шт.

11

KHJ2303

HOSE

1шт.

12

150071A1

MOUNTING CLIP

380 mm

1шт.

13

168363A1

PLASTIC-RUBBER TUBE

1шт.

14

169298A1

PLASTIC-RUBBER TUBE

1шт.

15

168873A1

PLASTIC-RUBBER TUBE

1шт.

16

150067A1

MOUNTING CLIP

150 mm

6шт.

17

KSV1417

PIN

2шт.

18

102R020Y035R

BOLT

M20 x 35

2шт.

19

KTV1185

SPACER

2шт.

20

KSV1366

HYDRAULIC HOSE,25.40 mm ID x 1500.00 mm

2шт.

21

KHJ1361

O-RING,0.07" Thk x 0.926" ID

2шт.

22

164450A1

O-RING

2шт.

23

KSV1612

TUBE ASSY.

1шт.

24

KSV1607

TUBE ASSY.

1шт.

25

162595A1

CLAMP

5шт.

26

827-16070

BOLT,Hex, M16 x 2 x 70mm, Cl 10.9

5шт.

27

150814A1

WASHER,17mm ID x 32mm OD x 4.5mm Thk

5шт.

28

150124A1

FLANGE

4шт.

29

862-14050

HEX SOC SCREW,M14 x 50mm, Cl 12.9

M14 x 50; 12.9

8шт.

30

158451A1

SPACER

1шт.

31

REF

INSTRUCTION

1шт.

See Page(s) 08-055-00-01

1шт.

32

157937A1

ELBOW

1шт.

33

KHJ2421

HYDRAULIC HOSE,12.70 mm ID x 6600.00 mm

1шт.

34

168879A1

PLASTIC-RUBBER TUBE

1шт.
