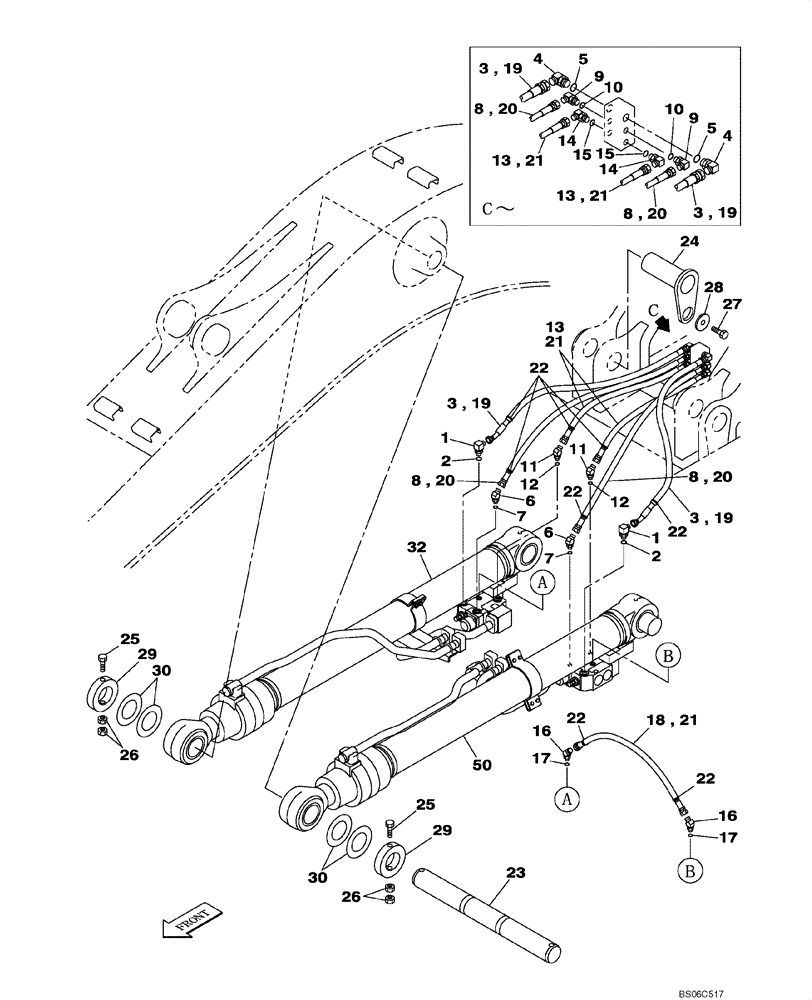

Запчасти Case CX330 (08-014-00[01]) - HYDRAULICS - BOOM CYLINDER, MODELS WITH LOAD HOLD (08) - HYDRAULICS

1

150919A1

ELBOW,90 Degree, 1/2" O-Ring x 1/2"

Incl. 2

2шт.

2

154487A1

O-RING

1шт.

3

164175A1

HYDRAULIC HOSE,12.70 mm ID x 950.00 mm

2шт.

4

150919A1

ELBOW,90 Degree, 1/2" O-Ring x 1/2"

Incl. 5

2шт.

5

154487A1

O-RING

1шт.

6

157584A1

ELBOW

Incl. 7

2шт.

7

154475A1

O-RING

1шт.

8

162032A1

HYDRAULIC HOSE,9.50 mm ID x 850.00 mm

2шт.

9

150916A1

ELBOW,90 Degree, 3/8" O-Ring x 3/8"

Incl. 10

2шт.

10

154475A1

O-RING

1шт.

11

157584A1

ELBOW

Incl. 12

2шт.

12

154475A1

O-RING

1шт.

13

162037A1

HYDRAULIC HOSE,9.50 mm ID x 700.00 mm

2шт.

14

150916A1

ELBOW,90 Degree, 3/8" O-Ring x 3/8"

Incl. 15

2шт.

15

154475A1

O-RING

1шт.

16

150933A1

ELBOW

Incl. 17

2шт.

17

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

18

164174A1

HYDRAULIC HOSE,6.30 mm ID x 900.00 mm

1шт.

19

158061A1

PLASTIC-RUBBER TUBE

2шт.

20

150773A1

PLASTIC-RUBBER TUBE

2шт.

21

157766A1

PLASTIC-RUBBER TUBE,15 mm ID, 19.5 mm OD, 500 mm Length

3шт.

22

150067A1

MOUNTING CLIP

150 mm

1шт.

23

KSV1344

PIN

1шт.

24

KSV1520

PIN

2шт.

25

514-1404

BOLT,Hex, M24 x 2 x 190mm, Cl 10.9

2шт.

26

829-13424

NUT,M24 x 2, Cl 10

4шт.

27

102R020Y035R

BOLT

M20 x 35

2шт.

28

KTV1185

SPACER

2шт.

29

KSV1352

RING, LOCKING

RING, LOCK

2шт.

30

162102A1

SHIM

1шт.

32

KSV11420

HYDRAULIC CYLINDER

Boom, Right Hand, See Figure 08-300-01 01

1шт.

50

KSV11430

HYDRAULIC CYLINDER

Boom, Left Hand, See Figure 08-301-01 01

1шт.
