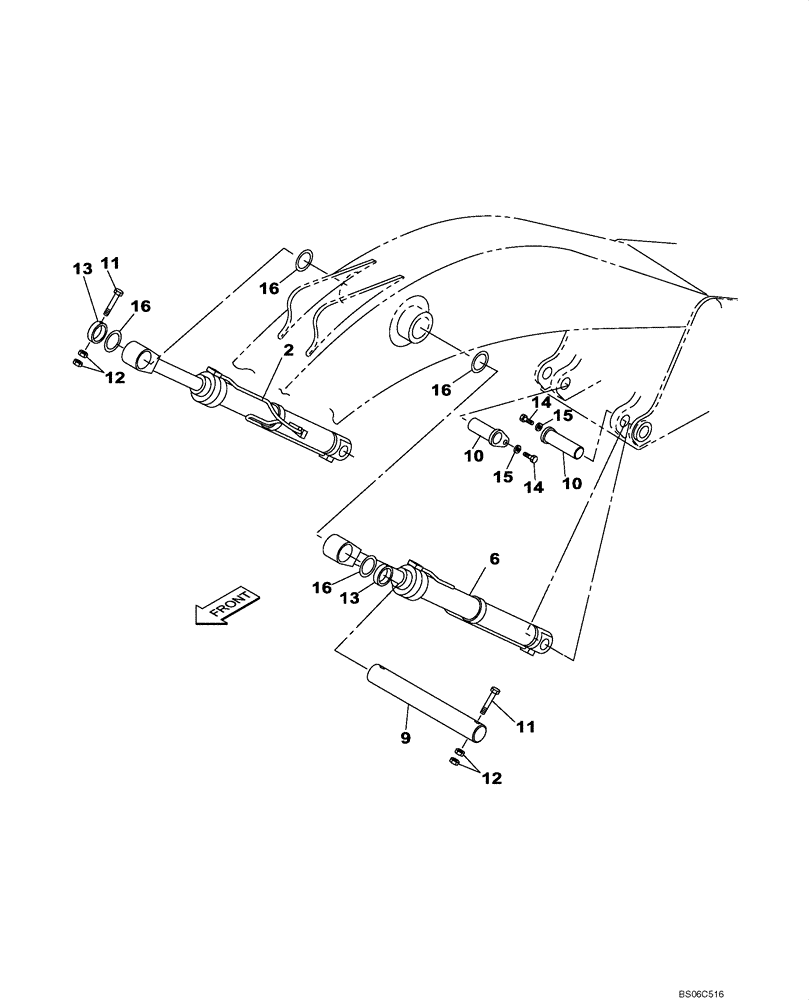

Запчасти Case CX330 (08-013-00[01]) - HYDRAULICS - BOOM CYLINDER, MODELS WITHOUT LOAD HOLD (08) - HYDRAULICS

2

KSV1925

HYDRAULIC CYLINDER

Boom, Right-Hand, Models Without Load Hold; See Figure 08-300-00 01

1шт.

2

KSV18670R

REMAN-HYD CYLINDER

Boom, Right Hand

1шт.

2

KSV18670C

CORE-HYD CYLINDER

Return Number

1шт.

6

KSV1926

HYDRAULIC CYLINDER

Boom, Left Hand, Models Without Load Hold; See Figure 08-301-00 01

1шт.

6

KSV18680R

REMAN-HYD CYLINDER

Boom, Left Hand

1шт.

6

KSV18680C

CORE-HYD CYLINDER

Return Number

1шт.

9

KSV1344

PIN

1шт.

10

KSV1520

PIN

2шт.

11

514-1404

BOLT,Hex, M24 x 2 x 190mm, Cl 10.9

2шт.

12

829-13424

NUT,M24 x 2, Cl 10

4шт.

13

KSV1352

RING, LOCKING

RING, LOCK

2шт.

14

102R020Y035R

BOLT

M20 x 35

2шт.

15

KTV1185

SPACER

2шт.

16

162102A1

SHIM

1шт.
