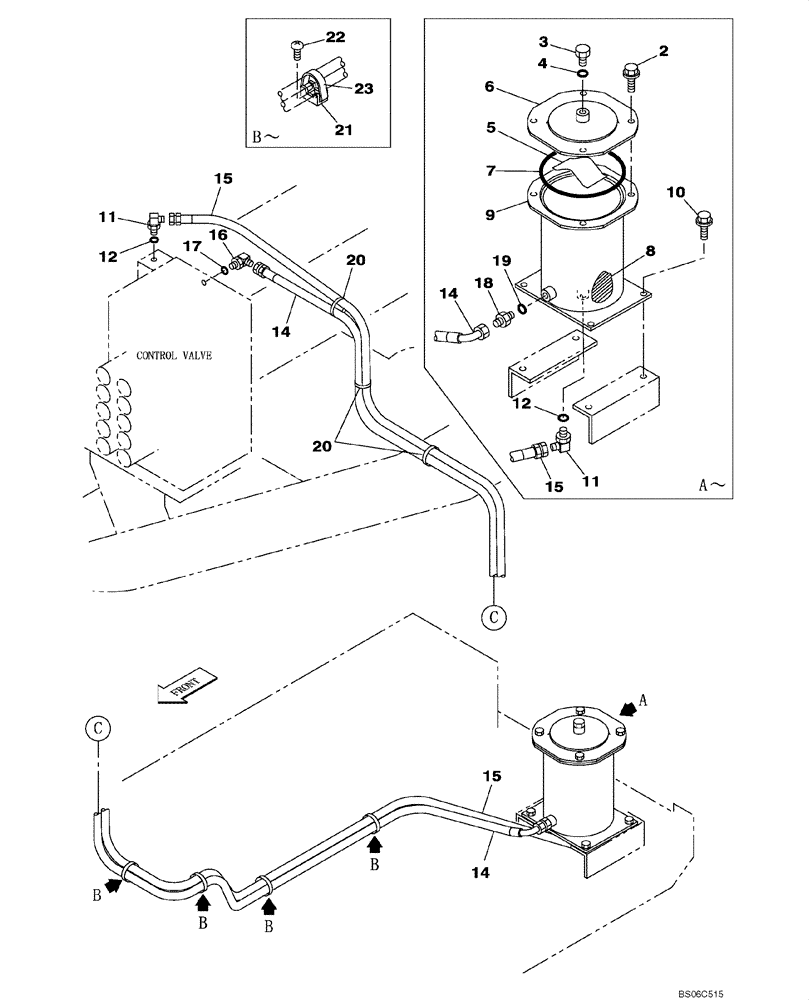

Запчасти Case CX330 (08-007-00[01]) - HYDRAULICS - BYPASS FILTER (08) - HYDRAULICS

2

166351A1

BOLT,Sems, M10 x 20mm

M10 x 20

4шт.

3

159285A1

PLUG

Incl. 4

1шт.

4

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

5

KHJ1588

SPRING

1шт.

6

KHJ1564

COVER

1шт.

7

KHJ1404

O-RING

1шт.

8

159282A1

HYDRAULIC OIL FILTER

1шт.

9

KHJ2592

HOUSING

1шт.

10

166052A1

BOLT

M10 x 25

4шт.

11

150913A1

ELBOW,90 Degree, 1/4" O-Ring x 1/4"

Incl. 12

2шт.

12

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

14

FAJ0426

HOSE

2300 mm (90-5/8 in)

1шт.

15

157790A1

HOSE,6.3mm ID x 3000mm L

1шт.

16

150913A1

ELBOW,90 Degree, 1/4" O-Ring x 1/4"

Incl. 17

1шт.

17

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

18

KHJ2012

ORIFICE

Incl. 19

1шт.

19

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

20

150071A1

MOUNTING CLIP

380 mm

1шт.

21

150860A1

COLLAR

4шт.

22

840-168

SCREW,Pan, M6 x 1 x 8mm, Cl 4.8

4шт.

23

150496A1

MOUNTING CLIP

250 mm

4шт.
