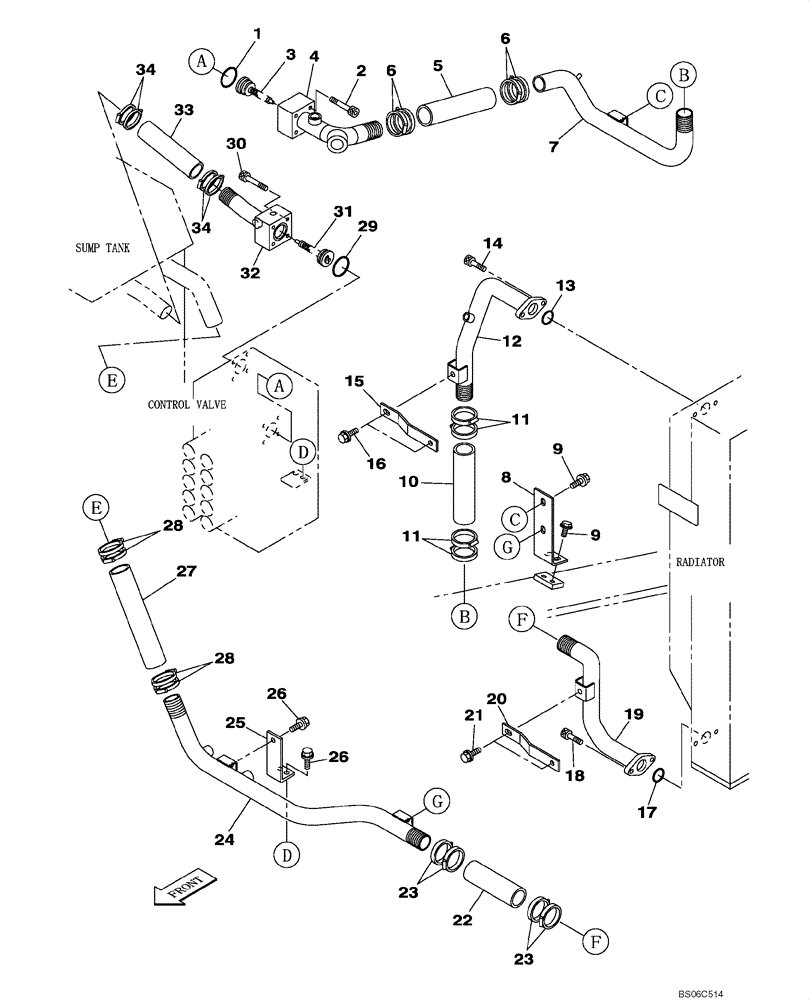

Запчасти Case CX330 (08-006-00[01]) - HYDRAULICS - RESERVOIR RETURN (08) - HYDRAULICS

1

154641A1

O-RING

1шт.

2

862-10060

HEX SOC SCREW,M10 x 60mm, Cl 12.9

4шт.

3

KRJ6992

CHECK VALVE

1шт.

4

KSJ2898

TUBE ASSY.,41.6 mm ID x 48.6 mm OD

P.I.N. N5SAP7001 - P.I.N. N6SAP7086

1шт.

4a

KSJ11730

HYD TUBE

P.I.N. N6SAP7086 And After; Not Illustrated

1шт.

5

KHJ1792

HOSE

No Longer Used, Order 168189A1

1шт.

5a

168189A1

HOSE

Not Illustrated

1шт.

6

165793A1

COLLAR

4шт.

7

KSJ3136

HYD TUBE,41.6 mm ID x 48.6 mm OD

1шт.

8

KSJ3149

SUPPORT

No Longer Used, Order KSJ11800

1шт.

8a

KSJ11800

BRACKET

Not Illustrated

1шт.

9

152718A1

BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9

4шт.

10

KHJ1792

HOSE

No Longer Used, Order 168189A1

1шт.

10a

168189A1

HOSE

Not Illustrated

1шт.

11

165793A1

COLLAR

4шт.

12

KSJ3139

HYD TUBE,41.6 mm ID x 48.6 mm OD

1шт.

13

154588A1

O-RING

1шт.

14

862-12040

HEX SOC SCREW,M12 x 40mm, Cl 12.9

2шт.

15

KSJ3138

SUPPORT

1шт.

16

152718A1

BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9

2шт.

17

154588A1

O-RING

1шт.

18

862-12040

HEX SOC SCREW,M12 x 40mm, Cl 12.9

2шт.

19

KSJ3140

HYD TUBE,41.6 mm ID x 48.6 mm OD

1шт.

19

KSJ13840

HYD TUBE

P.I.N. DCH330R3N8EAP7235, DAC330K3N8SAP7298 And After

1шт.

20

KSJ3138

SUPPORT

1шт.

21

152718A1

BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9

2шт.

22

153385A1

HOSE

1шт.

20

KSJ13830

BRACKET

P.I.N. DCH330R3N8EAP7235, DAC330K3N8SAP7298 And After

1шт.

23

165793A1

COLLAR

4шт.

24

KSJ10930

HYD TUBE,41.6 mm ID x 48.6 mm OD

1шт.

25

KSJ2708

BRACKET

1шт.

26

152718A1

BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9

3шт.

27

162348A1

HOSE,48.5mm ID x 310mm L

1шт.

28

165793A1

COLLAR

4шт.

29

154641A1

O-RING

1шт.

30

862-10060

HEX SOC SCREW,M10 x 60mm, Cl 12.9

2-4шт.

30

862-10035

HEX SOC SCREW,M10 x 35mm, Cl 12.9

2шт.

31

159054A1

VALVE

1шт.

32

KSJ2892

TUBE ASSY.,35.7 mm ID x 42.7 mm OD

P.I.N. N5SAP7001 - P.I.N. N6SAP7086

1шт.

32a

KSJ11740

HYD TUBE

P.I.N. N6SAP7086 And After; Not Illustrated

1шт.

33

152788A1

HYDRAULIC HOSE

1шт.

34

165793A1

COLLAR

4шт.

35

162860A1

SOCKET

Not Illustrated

1шт.
