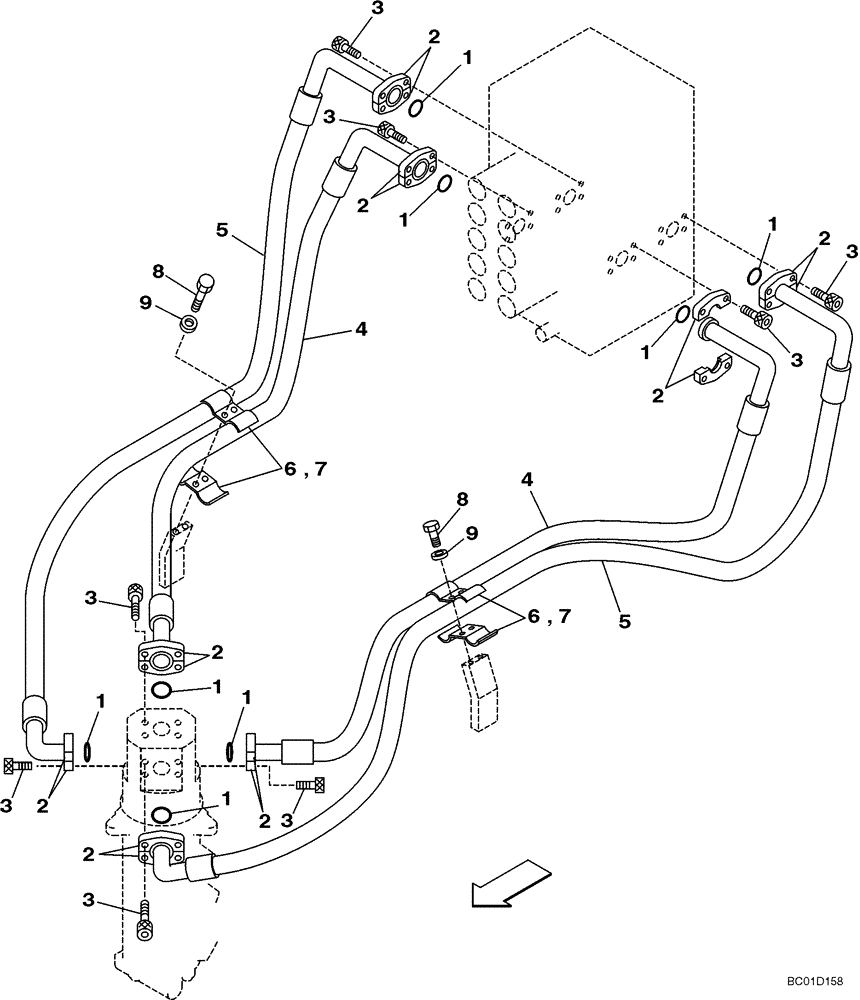

Запчасти Case CX330 (06-006-00[01]) - HYDRAULIC CIRCUIT - TRAVEL (06) - POWER TRAIN

1

155211A1

O-RING

8шт.

2

153459A1

FLANGE

16шт.

3

862-10030

HEX SOC SCREW,M10 x 30mm, Cl 12.9

32шт.

4

KSJ2720

HYDRAULIC HOSE,25.40 mm ID x 1450.00 mm

2шт.

5

KSJ10730

HYDRAULIC HOSE,25.40 mm ID x 1730.00 mm

2шт.

6

KSJ2724

CLAMP

4шт.

7

161678A1

HALF-FLANGE

4шт.

8

627-8030

BOLT,Hex, M8 x 1.25 x 30mm, Cl 10.9, Full Thd

4шт.

9

153081A1

WASHER

4шт.
