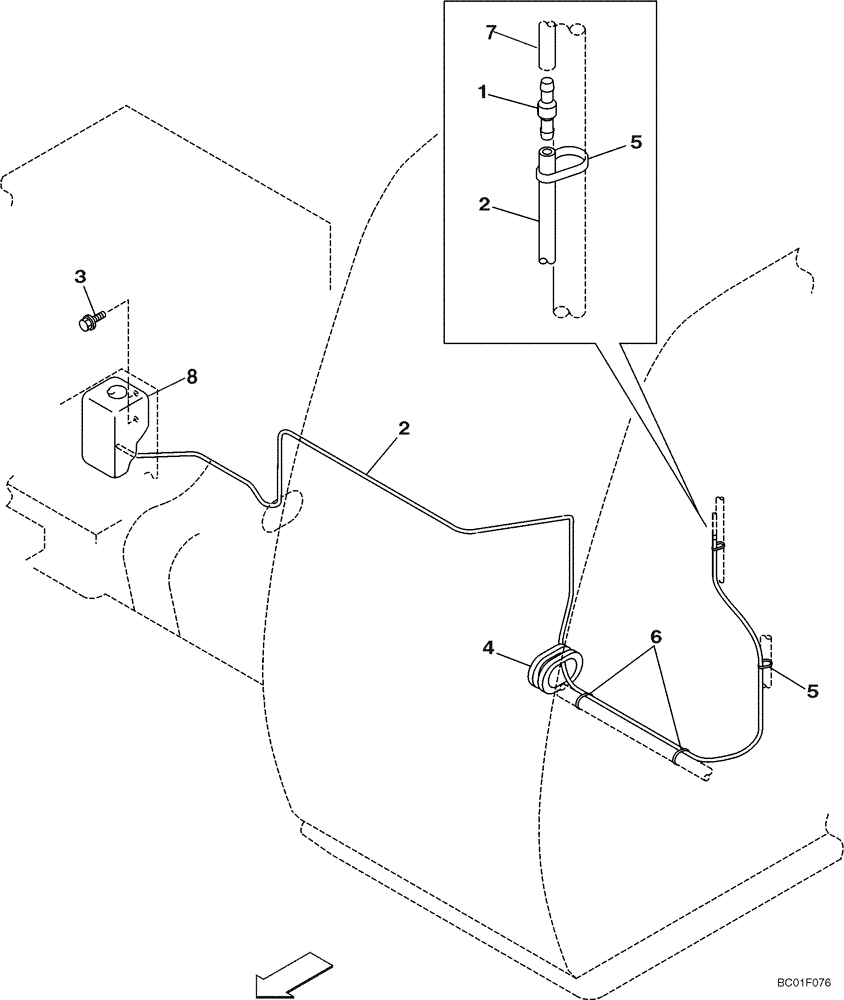

Запчасти Case CX330 (04-012-00[01]) - WINDSHIELD WASHER (04) - ELECTRICAL SYSTEMS

1

152824A1

ADAPTER

1шт.

2

152831A1

PLASTIC-RUBBER TUBE,4 mm ID, 7 mm OD, 4000 mm Length

4000 mm (157-1/2 in); Cut From 162127A1

1шт.

3

159602A1

BOLT,Sems, Hex, M6 x 16mm

2шт.

4

163732A1

GROMMET

1шт.

5

150067A1

MOUNTING CLIP

2шт.

6

150496A1

MOUNTING CLIP

250 mm (10 in)

2шт.

7

KHN2747

HOSE

See Figure 04-011-01 00, REF 122

1шт.

8

161374A1

RESERVOIR ASSY.

See Figure 04-011-01 00, REF 18

1шт.
