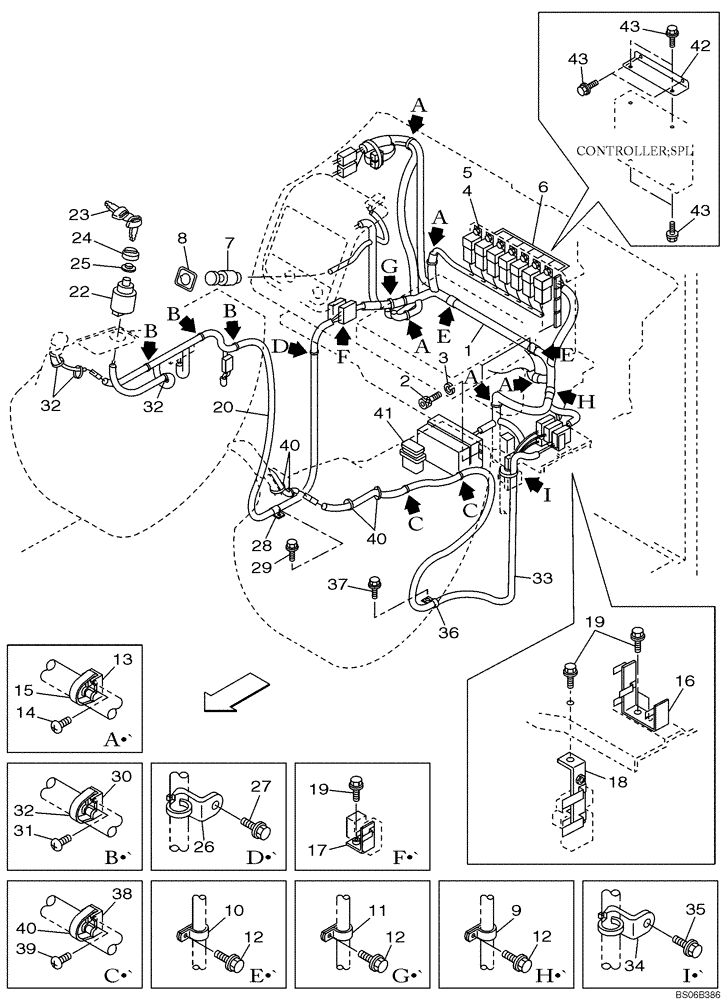

Запчасти Case CX330 (04-003-00[02]) - ELECTRICAL - CAB (04) - ELECTRICAL SYSTEMS
![Схема запчастей Case CX330 - (04-003-00[02]) - ELECTRICAL - CAB (04) - ELECTRICAL SYSTEMS](https://partsell.ru/storage/images/casece/777196.png)
№
Артикул
Название
Примечание
Количество
1
KHR16150
HARNESS
Harness; Replaces KHR4299
1шт.
2
108R006Y020R
BOLT
M6 x 20
2шт.
3
892-11006
LOCK WASHER,M6
2шт.
4
159919A1
RELAY
6-7шт.
5
159602A1
BOLT,Sems, Hex, M6 x 16mm
M6 x 16
6-7шт.
6
KHP12470
DECAL
Replaces KHP10460, KHP11130
1шт.
7
KHR2488
LIGHTER, CIGARETTE
1шт.
8
KHR3141
PROTECTOR
1шт.
9
159149A1
COLLAR
1шт.
10
157807A1
COLLAR
2шт.
11
157806A1
COLLAR
1шт.
12
159602A1
BOLT,Sems, Hex, M6 x 16mm
M6 x 16
4шт.
13
150860A1
COLLAR
5шт.
14
840-168
SCREW,Pan, M6 x 1 x 8mm, Cl 4.8
5шт.
15
150067A1
MOUNTING CLIP
150 mm
6шт.
16
KHR4304
BRACKET
1шт.
17
KHR2747
BRACKET
1шт.
18
KHR2748
BRACKET
No Longer Used, For Service Order Ref. 18A
1шт.
18a
KHR13420
SUPPORT
Not Illustrated
1шт.
18b
KHR2583
CLAMP
Not Illustrated
1шт.
18c
159602A1
BOLT,Sems, Hex, M6 x 16mm
Not Illustrated
1шт.
19
166345A1
BOLT
M6 x 16
3шт.
20
KHR4306
HARNESS
1шт.
21
KHR20050
IGNITION SWITCH
SWITCH, IGNITION, Incl. 22 - 25, Replaces KHR3270
1шт.
22
KHR3078
IGNITION SWITCH
1шт.
23
KHR20070
IGNITION KEY
KEY CASE, Replaces 150979A1
2шт.
24
KHR3080
CAP
1шт.
25
KHR3081
WASHER
1шт.
26
KHR2580
CLAMP
1шт.
27
159905A1
BOLT,Sems, Hex, M6 x 25mm, Spcl
M6 x 25
1шт.
28
157806A1
COLLAR
1шт.
29
156559A1
BOLT,High Strength, Hex, M6 x 12mm, W/ LW
M6 x 12
1шт.
30
150860A1
COLLAR
3шт.
31
840-168
SCREW,Pan, M6 x 1 x 8mm, Cl 4.8
3шт.
32
150067A1
MOUNTING CLIP
150 mm
5шт.
33
KHR4302
HARNESS
1шт.
34
KHR2580
CLAMP
1шт.
35
159905A1
BOLT,Sems, Hex, M6 x 25mm, Spcl
M6 x 25
1шт.
36
157806A1
COLLAR
1шт.
37
156559A1
BOLT,High Strength, Hex, M6 x 12mm, W/ LW
M6 x 12
1шт.
38
150860A1
COLLAR
2шт.
39
840-168
SCREW,Pan, M6 x 1 x 8mm, Cl 4.8
2шт.
40
150067A1
MOUNTING CLIP
150 mm
1шт.
41
KHR3196
SWITCH
Travel Alarm
1шт.
42
KHR4303
BRACKET
1шт.
43
159602A1
BOLT,Sems, Hex, M6 x 16mm
M6 x 16
6шт.
44
KHR13870
COLLAR
Not Illustrated
3шт.
