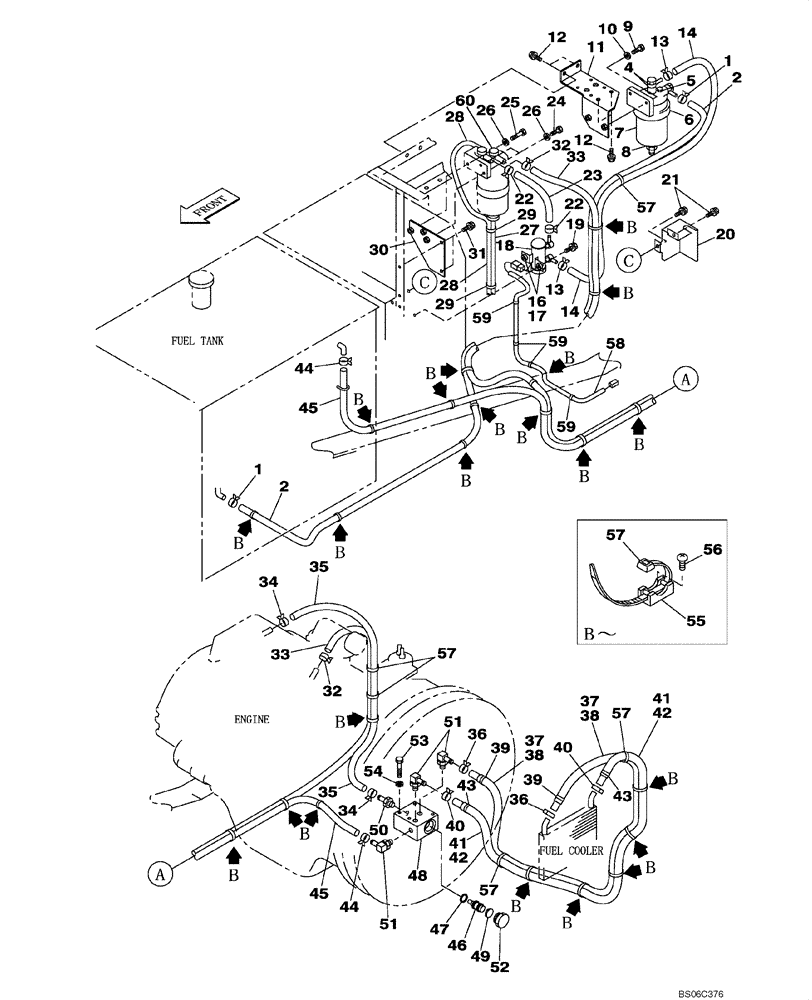

Запчасти Case CX330 (03-001-00[01]) - FUEL SYSTEM (03) - FUEL SYSTEM

1

KHH0405

MOUNTING CLIP

2шт.

2

KHH0420

FUEL HOSE

2600 mm

1шт.

3

KHH12020

FILTER ASSY

Incl. 4 - 8A, Replaces KHH10550

1шт.

4

158678A1

GASKET

Connector, Replaces KHH10570

4шт.

5

158676A1

GASKET

Air Plug; Replaces KHH10580

1шт.

6

LBQ5245

O-RING

1шт.

7

KHH12030

FUEL FILTER

Incl. 6, 8, Replaces KHH10590

1шт.

8

KHH10600

GASKET

1шт.

8a

155467A1

PLUG, DRAIN

Not Illustrated

1шт.

9

827-8040

BOLT,Hex, M8 x 1.25 x 40mm, Cl 10.9

2шт.

10

153081A1

WASHER

W M8

2шт.

11

KSH10100

SUPPORT

1шт.

12

166352A1

BOLT

M12 x 30

4шт.

13

KHH0405

MOUNTING CLIP

2шт.

14

KHH10610

FUEL HOSE,700.00 mm

1шт.

15

KHH11880

FEED PUMP

Incl. 16 - 18; Replaces KHH10460

1шт.

16

KHH10470

GROMMET

2шт.

17

KHH10480

COLLAR

2шт.

18

KHH11890

FILTER SCREEN

Replaces KHH10490

1шт.

18a

KHH11900

GASKET

Not Illustrated

1шт.

18

KHH10490

FILTER SCREEN

1шт.

19

162056A1

BOLT,Spcl, M6 x 30mm

M6 x 30

2шт.

20

KSH10110

COVER

1шт.

21

166352A1

BOLT

M12 x 30

2шт.

22

KHH0405

MOUNTING CLIP

2шт.

23

KHH10620

FUEL HOSE,300.00 mm

1шт.

24

827-8040

BOLT,Hex, M8 x 1.25 x 40mm, Cl 10.9

2шт.

25

102R008Y075R

BOLT

M8 x 75

1шт.

26

153081A1

WASHER

W M8

3шт.

27

KHH10280

PLASTIC-RUBBER TUBE,7 mm ID x 11 mm OD

500 mm, If Used

1шт.

28

KHH10290

PLASTIC-RUBBER TUBE,7 mm ID x 11 mm OD

800 mm

1шт.

29

150496A1

MOUNTING CLIP

250 mm, If Used

2шт.

30

KSH1057

SUPPORT

1шт.

31

166052A1

BOLT

M10 x 25

2шт.

32

KHH0405

MOUNTING CLIP

2шт.

33

KHH0527

FUEL HOSE,3350.00 mm

1шт.

34

KHH0405

MOUNTING CLIP

2шт.

35

KHH11230

HYDRAULIC HOSE,9.50 mm ID x 1150.00 mm

Replaces KHH0524

1шт.

36

KHH0405

MOUNTING CLIP

2шт.

37

KHH11220

FUEL HOSE,9.50 mm ID x 2300.00 mm

Replaces KHH0525

1шт.

38

KHR11730

FLEXIBLE SHEATH

19 x 2100

1шт.

39

150496A1

MOUNTING CLIP

250 mm

2шт.

40

KHH0405

MOUNTING CLIP

2шт.

41

KHH10260

FUEL HOSE,2050.00 mm

1шт.

42

KHR3052

PLASTIC-RUBBER TUBE

19 x 1800

1шт.

43

150496A1

MOUNTING CLIP

250 mm

2шт.

44

KHH0405

MOUNTING CLIP

2шт.

45

KHH0526

FUEL HOSE,2800.00 mm

1шт.

46

KBH0950

VALVE

1шт.

47

KHH0498

O-RING

1шт.

48

KHH0537

MANIFOLD

1шт.

49

KBH0953

O-RING

1шт.

50

KHH0538

ADAPTER

3/8-10

1шт.

51

KHH0539

ELBOW

3/8-10

3шт.

52

162335A1

PLUG

1-1/4

1шт.

53

827-10090

BOLT,Hex, M10 x 1.5 x 90mm, Cl 10.9

4шт.

54

150409A1

WASHER

W M10

4шт.

55

150860A1

COLLAR

20шт.

56

840-168

SCREW,Pan, M6 x 1 x 8mm, Cl 4.8

20шт.

57

150496A1

MOUNTING CLIP

250 mm

25шт.

58

KHH10320

HARNESS

If Used

1шт.

59

KHR2787

CLAMP

If Used

4шт.

59a

150529A1

WASHER

If Used

4шт.

60

REF

INSTRUCTION

Fuel Filter; See Figure 03-041-01 01, Ref 1

1шт.
