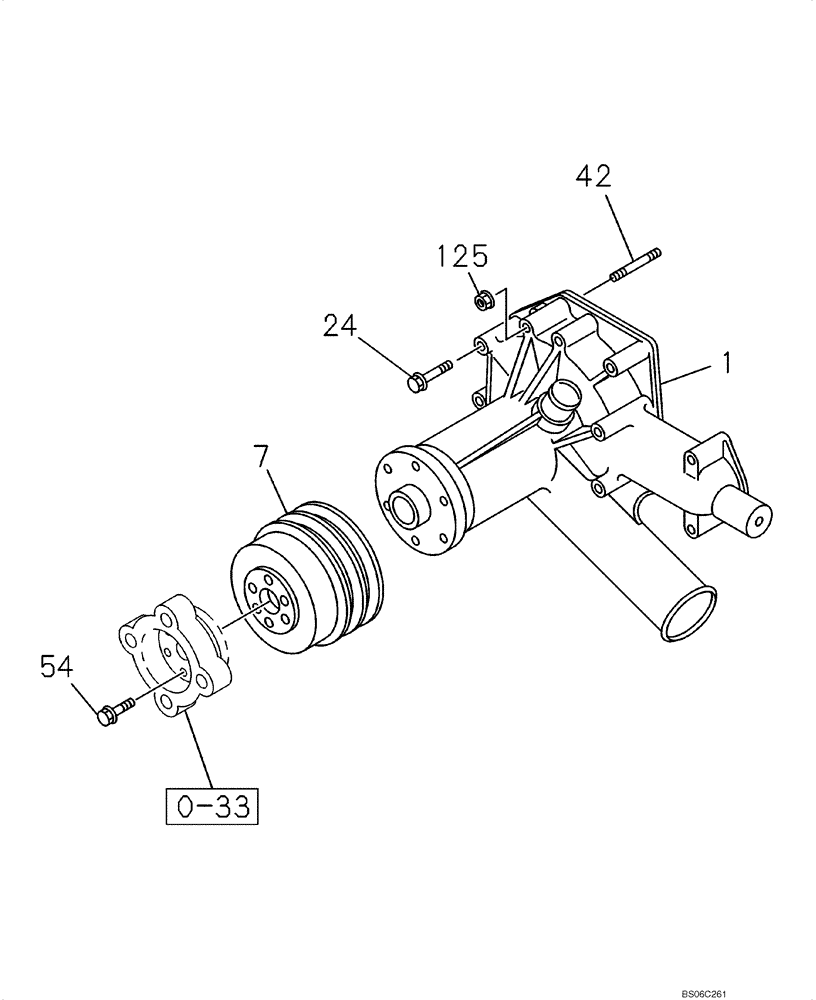

Запчасти Case CX330 (02-030-01[01]) - WATER PUMP SYSTEM (02) - ENGINE

0-33

REF

INSTRUCTION

See Figure 02-033-01 01

1шт.

1

437924A1

PUMP, WATER

1шт.

1

437924A1R

REMAN-WATER PUMP

CX330 CRAWLER EXCAVATOR TIER 3 ASN N5SAP7001 (NA) (1/06-)

1шт.

1

437924A1C

CORE-WATER PUMP

Return Number

1шт.

7

437920A1

PULLEY

1шт.

24

288696A1

BOLT

M8 x 80

5шт.

24

437848A1

FLANGE BOLT

M8 x 110

3шт.

42

438180A1

STUD

M8 x 55 L=67mm

1шт.

54

355652A1

BOLT

M10 x 60

6шт.

125

289042A1

NUT

M8

1шт.

125

426067A1

FLANGE NUT

M10, Replaces 419929A1

1шт.
