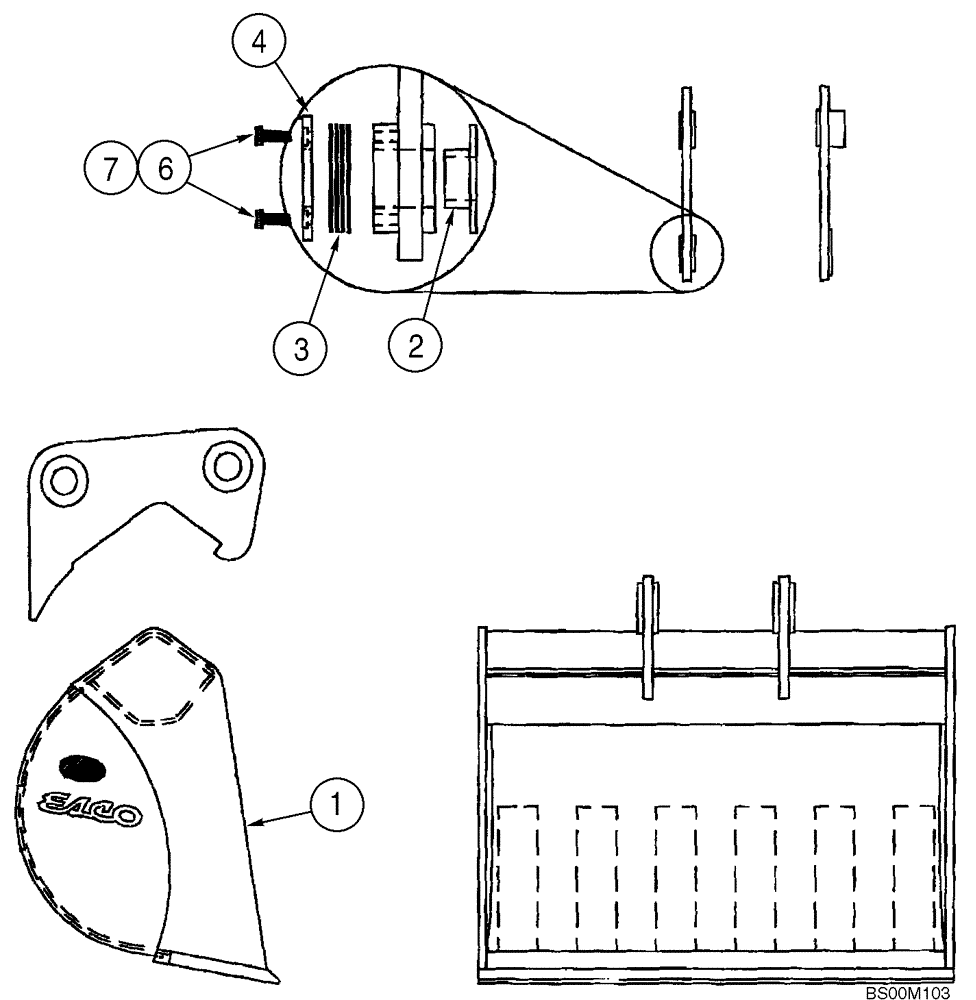

Запчасти Case CX330 (09-504-00[01]) - BUCKETS, ESCO - DITCH CLEANING BUCKETS (09) - CHASSIS

1

442297A1

BUCKET

1.69 cu m (2.20 cu yd)

1шт.

2

443467A1

BUSHING

1шт.

3

378635A1

SHIM

6шт.

4

378636A1

PLATE

1шт.

5

378637A1

PIN

Not Illustrated

2шт.

6

892-16016

LOCK WASHER,M16, Hvy

4шт.

7

863-16055

HEX SOC SCREW,M16 x 55mm, Cl 12.9

4шт.

443468A1

KIT

Adjustment; Incl. 2 - 7

1шт.
