/ / / / / / / / (09-042-00[01]) - CAB GUARD - WINDSHIELD, UPPER

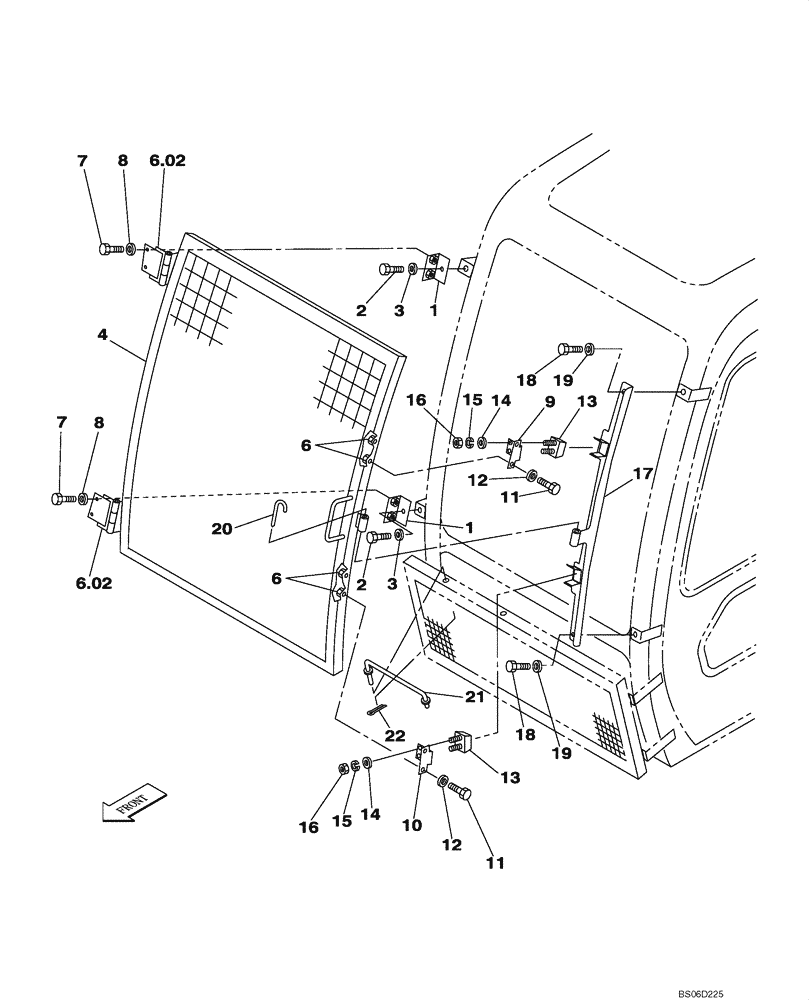

Запчасти Case CX330 (09-042-00[01]) - CAB GUARD - WINDSHIELD, UPPER (09) - CHASSIS
![Схема запчастей Case CX330 - (09-042-00[01]) - CAB GUARD - WINDSHIELD, UPPER (09) - CHASSIS](https://partsell.ru/storage/images/casece/1007827.png)
3
19
21
12
15
7
3
12
8
6
17
16
4
18
8
9
16
11
19
14
6.02
15
1
10
1
2
6
13
14
13
2
11
18
6.02
20
7
22
1
KHN3387
SUPPORT
2шт.
2
159657A1
BOLT,High Strength, M10
M10 x 1.25 x 25
2шт.
3
150409A1
WASHER
W M10
2шт.
4
KHN3385
STONEGUARD
Incl. 6.02
1шт.
6
157742A1
NUT
2шт.
6.02
KSN0545
HINGE
2шт.
7
159657A1
BOLT,High Strength, M10
M10 x 1.25 x 25
4шт.
8
150409A1
WASHER
W M10
4шт.
9
KHN2875
BRACKET
1шт.
10
KHN2876
BRACKET
1шт.
11
159657A1
BOLT,High Strength, M10
M10 x 1.25 x 25
4шт.
12
150409A1
WASHER
W M10
4шт.
13
KRN2098
STOP
2шт.
14
150409A1
WASHER
W M10
4шт.
15
892-11010
LOCK WASHER,M10
4шт.
16
829-1410
NUT,M10 x 1.5, Cl 10.9
4шт.
17
KHN3386
SUPPORT
1шт.
18
159657A1
BOLT,High Strength, M10
M10 x 1.25 x 25
2шт.
19
150409A1
WASHER
W M10
2шт.
20
KHN2878
PIN
1шт.
21
159101A1
STAY
1шт.
22
153181A1
COTTER PIN
1шт.
