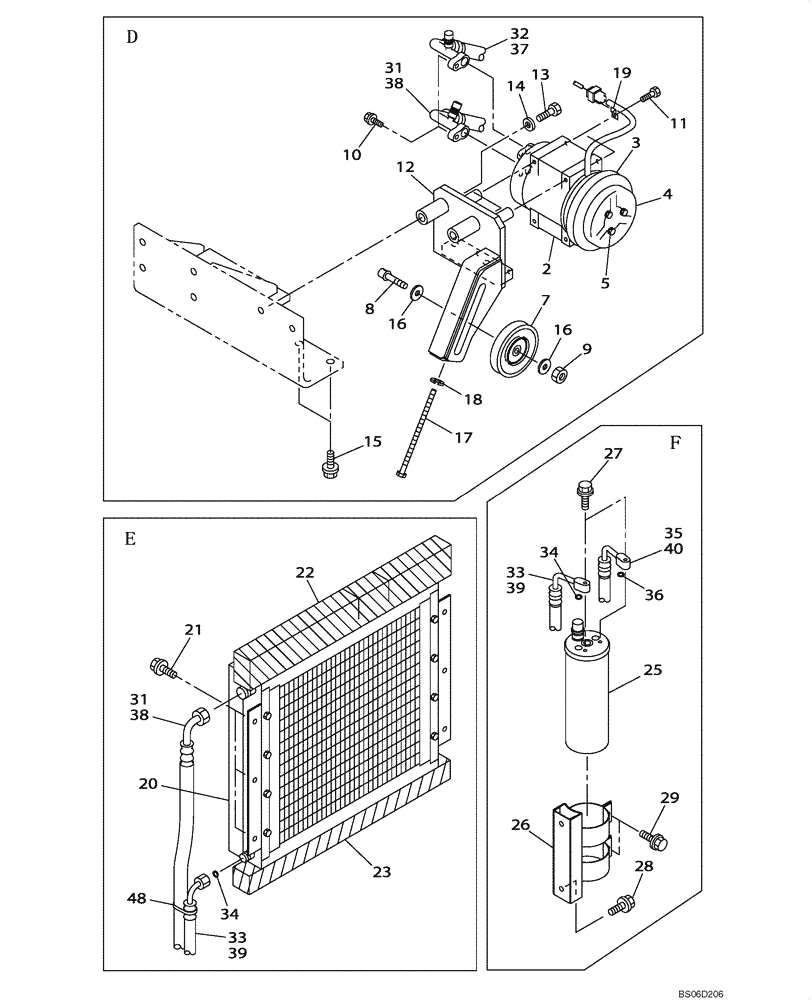

Запчасти Case CX330 (09-025-00[02]) - CAB AIR CONDITIONING - CONDENSER - RECEIVER-DRYER - COMPRESSOR (09) - CHASSIS

2

KHR3197

COMPRESSOR

Incl. 3 - 5

1шт.

KHR3197R

REMAN-COMPRESSOR

CX330 Tier 3 ASN N5SAP7001 (1/06-)

1шт.

KHR3197C

CORE-COMPRESSOR

Return Number

1шт.

.

KHR3198

CLUTCH

1шт.

4

KHR3974

PROTECTIVE COVER

1шт.

5

KHR3975

BOLT

3шт.

7

KHR11760

PULLEY

1шт.

8

157299A1

SHAFT

1шт.

9

157292A1

NUT

M10 x 1.25

1шт.

10

162457A1

SPECIAL BOLT,Spcl

M8 x 25

2шт.

11

KAR0921

BOLT,Spcl

M8 x 90

4шт.

12

KSR11340

SUPPORT

Replaces KSR0914

1шт.

13

827-12090

BOLT,Hex, M12 x 1.75 x 90mm, Cl 10.9

2шт.

14

150811A1

WASHER

2шт.

15

158919A1

CAPTIVE WASHER SCREW,Hex Wshr Hd, M12 x 1.75 x 35mm, Cl 10.9, Spcl

2шт.

16

151977A1

WASHER

2шт.

17

KHR3171

BOLT,Spcl

M8 x 160

1шт.

18

183-108VR

SPRING WASHER

1шт.

19

158962A1

CLIP

1шт.

20

KHR2989

CONDENSER

See Figure 09-025-01 01

1шт.

21

167182A1

BOLT,Sems, M8 x 25mm

M8 x 25

6шт.

22

KSR0918

SEAL

1шт.

23

KTR0530

SEAL

1шт.

25

KHR13590

RECEIVER-DRYER

Replaces 167528A1, KHR3751

1шт.

Check stock dimension before order

1шт.

26

KHR13600

BRACKET

Replaces 159635A1

1шт.

26

159635A1

SUPPORT

1шт.

Valid for KHR3751

1шт.

27

162043A1

BOLT,Spcl, M6

M6 x 28

2шт.

28

167182A1

BOLT,Sems, M8 x 25mm

M8 x 25

2шт.

29

159906A1

BOLT,Sems, Hex, M6 x 20mm, Spcl

M6 x 20

2шт.

31

KHR3167

HOSE

Incl. 31A

1шт.

31a

169053A1

O-RING

Not Illustrated

2шт.

32

KHR3168

HOSE

Incl. 32A

1шт.

32a

169052A1

O-RING

Not Illustrated

2шт.

33

KHR3087

HOSE

Incl. 34

1шт.

34

169054A1

O-RING

2шт.

35

KHR3088

HOSE

Incl. 36

1шт.

36

169054A1

O-RING

2шт.

37

KBR0668

PLASTIC-RUBBER TUBE

4100 mm

1шт.

38

158069A1

PLASTIC-RUBBER TUBE

3000 mm

1шт.

39

157768A1

PLASTIC-RUBBER TUBE

1300 mm

1шт.

40

151175A1

PLASTIC-RUBBER TUBE

3000 mm

1шт.

48

150496A1

MOUNTING CLIP

250 mm

5шт.

49

167518A1

BOLT

Not Shown

1шт.
