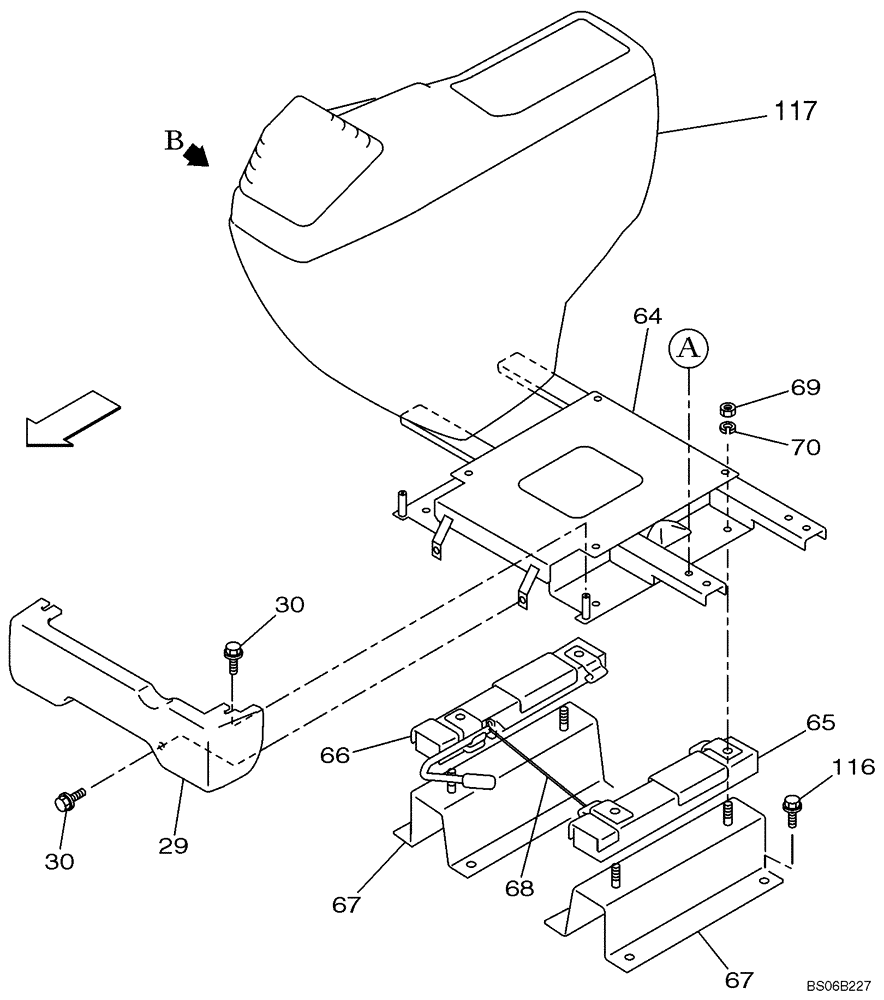

Запчасти Case CX330 (09-019-00[01]) - OPERATORS COMPARTMENT - SEAT AND CONTROL ARM MOUNTING (09) - CHASSIS

29

KHN3586

COVER

1шт.

30

KHN2132

BOLT,Hex Flg Hd, M6 x 16

4шт.

64

KHN2823

HOLDER

1шт.

65

KHN2473

SLIDE GUIDE

1шт.

66

KHN2474

SLIDE GUIDE

1шт.

67

KHN2475

CENTRAL RAIL

1шт.

68

KHN2476

CENTRAL RAIL

1шт.

69

829-1410

NUT,M10 x 1.5, Cl 10.9

8шт.

70

892-11010

LOCK WASHER,M10

8шт.

116

166346A1

BOLT,Sems, M10

8шт.

117

REF

INSTRUCTION

Arm, Right; See Figure 09-021-00 01

1шт.

118

REF

INSTRUCTION

Arm, Left; Not Illustrated; See Figure 09-020-00 01

1шт.

119

87344650

DRIVER SEAT

Not Illustrated; See Figure 09-022-00 01

1шт.
