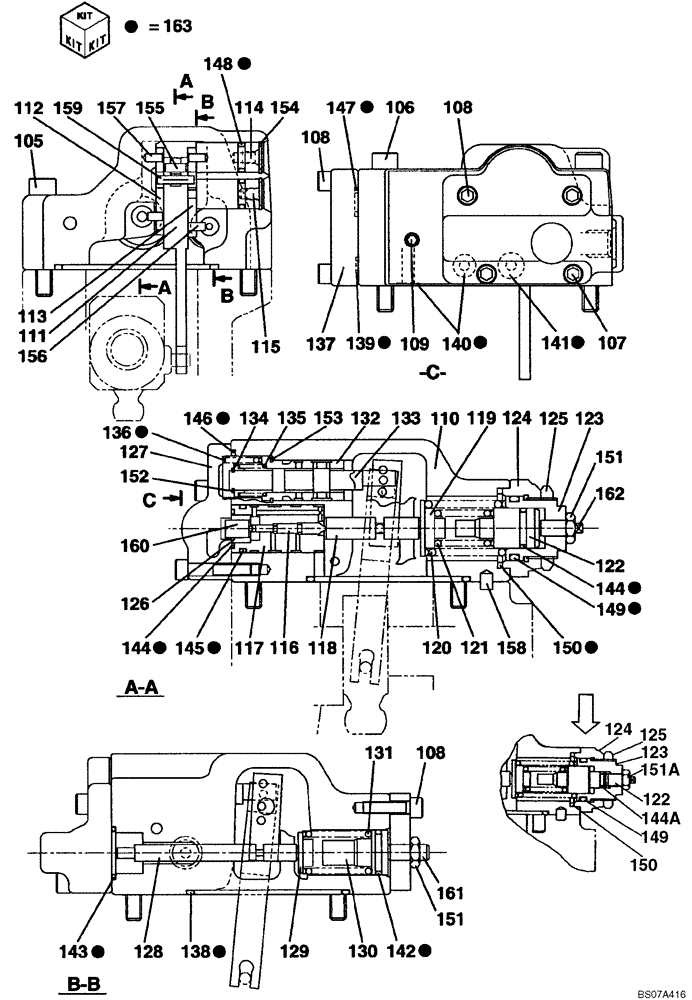

Запчасти Case CX330 (08-103-00[01]) - HIGH PRESSURE PUMP - REGULATOR (STANDARD) (08) - HYDRAULICS

KSJ2851

PUMP, HYDRAULIC

Includes Parts On Figures 08-100-00 01 - 08-103-00 01

1шт.

KSJ15460R

REMAN-HYD PUMP

New style pilot pumps are internally drained. If drain port is not present the dealer can discard the 2 elbows and use plug PN159085A1 in the tube assembly.

1шт.

KSJ15460C

CORE-HYDRAULIC PUMP

Return Number

1шт.

LJ015230

REGULATOR

Incl. 105 - 162, Replaces LL00093

2шт.

105

108R008Z050N

BOLT

2шт.

106

861-8070

HEX SOC SCREW,M8 x 70mm, Cl 12.9

2шт.

107

861-6030

HEX SOC SCREW,M6 x 30mm, Cl 12.9

2шт.

108

862-6020

HEX SOC SCREW,M6 x 20mm, Cl 12.9

10шт.

109

LK00003

PLUG

5шт.

110

NSS

NOT SOLD SEPARAT

Case

1шт.

111

NSS

NOT SOLD SEPARAT

Lever

1шт.

112

NSS

NOT SOLD SEPARAT

Lever

1шт.

113

NSS

NOT SOLD SEPARAT

Lever

1шт.

114

NSS

NOT SOLD SEPARAT

Plug

1шт.

115

NSS

NOT SOLD SEPARAT

Plug

1шт.

116

NSS

NOT SOLD SEPARAT

Piston

1шт.

117

NSS

NOT SOLD SEPARAT

Piston

1шт.

118

NSS

NOT SOLD SEPARAT

Rod

1шт.

119

NSS

NOT SOLD SEPARAT

Seat, Spring

1шт.

120

NSS

NOT SOLD SEPARAT

Spring, Compression

1шт.

121

NSS

NOT SOLD SEPARAT

Spring

1шт.

122

NSS

NOT SOLD SEPARAT

Seal, Spring

1шт.

123

NSS

NOT SOLD SEPARAT

Screw

1шт.

124

NSS

NOT SOLD SEPARAT

Cover

1шт.

125

NSS

NOT SOLD SEPARAT

Nut

1шт.

126

NSS

NOT SOLD SEPARAT

Sleeve

1шт.

127

NSS

NOT SOLD SEPARAT

Cover

1шт.

128

NSS

NOT SOLD SEPARAT

Piston

1шт.

129

NSS

NOT SOLD SEPARAT

Seat, Spring

1шт.

130

NSS

NOT SOLD SEPARAT

Seat, Spring

1шт.

131

NSS

NOT SOLD SEPARAT

Spring

1шт.

132

NSS

NOT SOLD SEPARAT

Sleeve

1шт.

133

NSS

NOT SOLD SEPARAT

Spool

1шт.

134

NSS

NOT SOLD SEPARAT

Seat, Spring

1шт.

135

NSS

NOT SOLD SEPARAT

Spring

1шт.

136

NSS

NOT SOLD SEPARAT

Spring

1шт.

137

NSS

NOT SOLD SEPARAT

Cover

1шт.

138

LE013390

O-RING

Replaces 154681A1

1шт.

139

LE013460

O-RING

Replaces 154447A1

3шт.

140

LE013470

O-RING

Replaces 154455A1

9шт.

141

LE013400

O-RING

Replaces 154463A1

1шт.

142

154489A1

O-RING

Replaces 154487A1

1шт.

143

LE00608

O-RING

Replaces 154499A1

1шт.

144

LE013420

O-RING

Replaces 154485A1

1-2шт.

144a

LE013430

O-RING

Replaces LE013540

1шт.

145

LE013380

O-RING

Replaces 154491A1

1шт.

146

LE013520

O-RING

Replaces 154509A1

1шт.

147

LE013540

O-RING

Replaces 155063A1

1шт.

148

LE013410

O-RING

Replaces 154467A1

2шт.

149

LE013450

O-RING

Replaces 154515A1

1шт.

150

154553A1

O-RING

Replaces 154549A1

1шт.

151

LA00065

JAM NUT

1-2шт.

151a

LA010640

JAM NUT

1шт.

152

800-1110

SNAP RING,M10, Ext

1шт.

153

NSS

NOT SOLD SEPARAT

Ring, Snap

1шт.

154

800-2115

SNAP RING,M15, Int

2шт.

155

NSS

NOT SOLD SEPARAT

Pin

1шт.

156

NSS

NOT SOLD SEPARAT

Pin

2шт.

157

NSS

NOT SOLD SEPARAT

Pin

2шт.

158

NSS

NOT SOLD SEPARAT

Pin

1шт.

159

NSS

NOT SOLD SEPARAT

Pin

1шт.

160

NSS

NOT SOLD SEPARAT

Pin

1шт.

161

LA00759

BOLT,Hex Skt Hd

1шт.

162

NSS

NOT SOLD SEPARAT

Screw; No Longer Used

1шт.

163

LZ006740

SEAL KIT

Incl. 138 - 150; Also Includes Figure 08-100-00 01 Ref 63 - 73, Figure 08-101-00 01 Ref 188 - 190, Figure 08-102-00 01 Ref 89, 90, 98 - 100

1шт.
