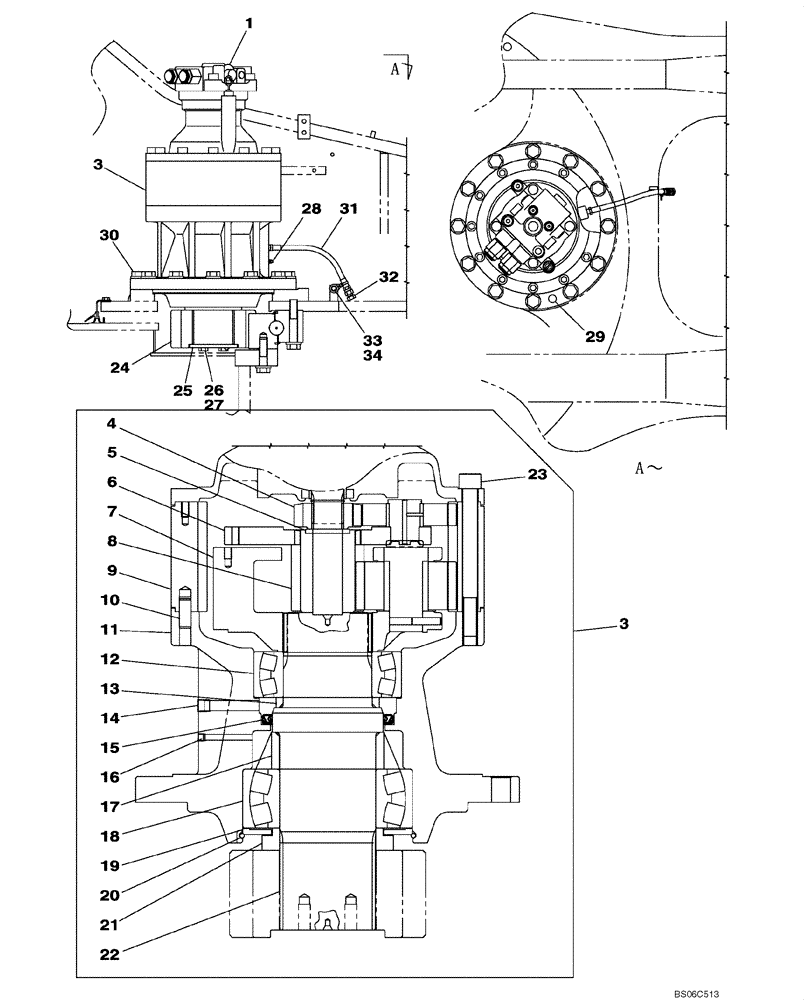

Запчасти Case CX330 (08-060-00[01]) - SWING MOTOR-DRIVE REDUCTION GEAR (08) - HYDRAULICS

1

KSC0247

MOTOR, HYDRAULIC

See Figure 08-061-00 01, REFERENCE ONLY - 330STD AND 350 DCH33B0291 / 330NLC DCH33B0290 / DAC0733203 ...AND AFTER

1шт.

1

KSC10170R

REMAN-HYD MOTOR

CX330 CRAWLER EXCAVATOR TIER 3, ASN N5SAP7001 (NA) (1/06-), Reman for New PN KSC0247

1шт.

1

KSC10170C

CORE-MOTOR HYDRAULIC

Return Number

1шт.

3

KSC0253

REDUCER

Incl. 4 - 23

1шт.

3

KSC10250R

REMAN-REDUCTION UNIT

CX330 CRAWLER EXCAVATOR TIER 3, ASN N5SAP7001 (1/06-), Reman for New PN KSC0253

1шт.

3

KSC10250C

CORE-REDUCTION UNIT

Return Number

1шт.

1

KSC10170

HYDRAULIC MOTOR

See Figure 08-061-00 01, Replaces KSC0247

1шт.

1

KSC10170R

REMAN-HYD MOTOR

CX330 CRAWLER EXCAVATOR TIER 3, ASN N5SAP7001 (NA) (1/06-)

1шт.

1

KSC10170C

CORE-MOTOR HYDRAULIC

Return Number

1шт.

4

KSC0220

SUN GEAR

1шт.

5

KSC0212

PLATE, THRUST

1шт.

6

KSC0245

CARRIER

1шт.

7

KSC0246

CARRIER

1шт.

8

KSC0219

SUN GEAR

1шт.

9

KSC0221

RING

1шт.

10

KTC0155

PIN

4шт.

11

KSC0248

BOX

D16 x 40

1шт.

12

KSC0207

BEARING,120mm ID x 200mm OD x 62mm W

1шт.

13

KSC0210

SPACER

1шт.

14

150824A1

PLUG

1шт.

15

KTC0153

OIL SEAL

1шт.

16

158352A1

PLUG

2шт.

17

KSC0249

SPACER

1шт.

18

150491A1

ROLLER BEARING,130mm ID x 280mm OD x 93mm W

1шт.

19

KSC0250

BEARING COVER

1шт.

20

KSC0251

RETAINING WIRE

1шт.

21

KSC0214

SPACER

1шт.

22

KSC0222

SHAFT

1шт.

23

150483A1

BOLT,Hex Skt, M20

M20 x 200

12шт.

24

KSC0201

GEAR

1шт.

25

150285A1

PLATE, LOCKING

1шт.

26

167069A1

WASHER

1шт.

27

627-16040

BOLT,Hex, M16 x 2 x 40mm, Cl 10.9, Full Thd

2шт.

28

153630A1

LUBE NIPPLE

1шт.

29

150317A1

HEADED PIN,24mm OD x 90mm L

1шт.

30

166477A1

BOLT,Sems, M24 x 90mm

12шт.

31

KTJ0315

HYDRAULIC HOSE,9.52 mm ID x 350.00 mm

1шт.

32

KHP0501

PLUG

1шт.

33

KHR2584

CLAMP

1шт.

34

KHJ1215

BOLT,Spcl

1шт.
