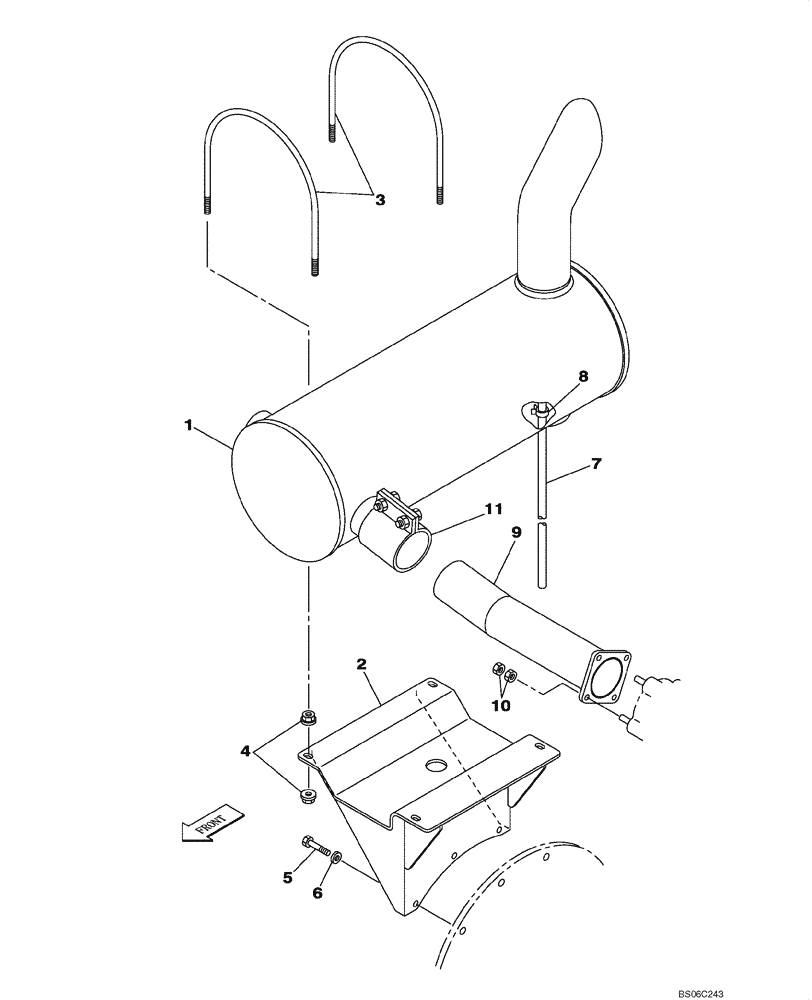

Запчасти Case CX330 (02-003-00[01]) - EXHAUST SYSTEM - MUFFLER (02) - ENGINE

1

KSH0948

MUFFLER

1шт.

2

KSH1037

SUPPORT

1шт.

3

KHH11400

RETAINER COLLAR

Replaces KBH0850

2шт.

4

KHH11440

FLANGE NUT

Replaces 150472A1

8шт.

5

827-10050

BOLT,Hex, M10 x 1.5 x 50mm, Cl 10.9

3шт.

6

150409A1

WASHER

W M10

3шт.

7

150668A1

TUBE

1шт.

8

165952A1

MOUNTING CLIP

1шт.

9

KSH1038

EXHAUST SYSTEM PIPE

1шт.

10

153856A1

NUT

M10 x 1.25

8шт.

11

KSH0951

COLLAR ASSY.

1шт.
