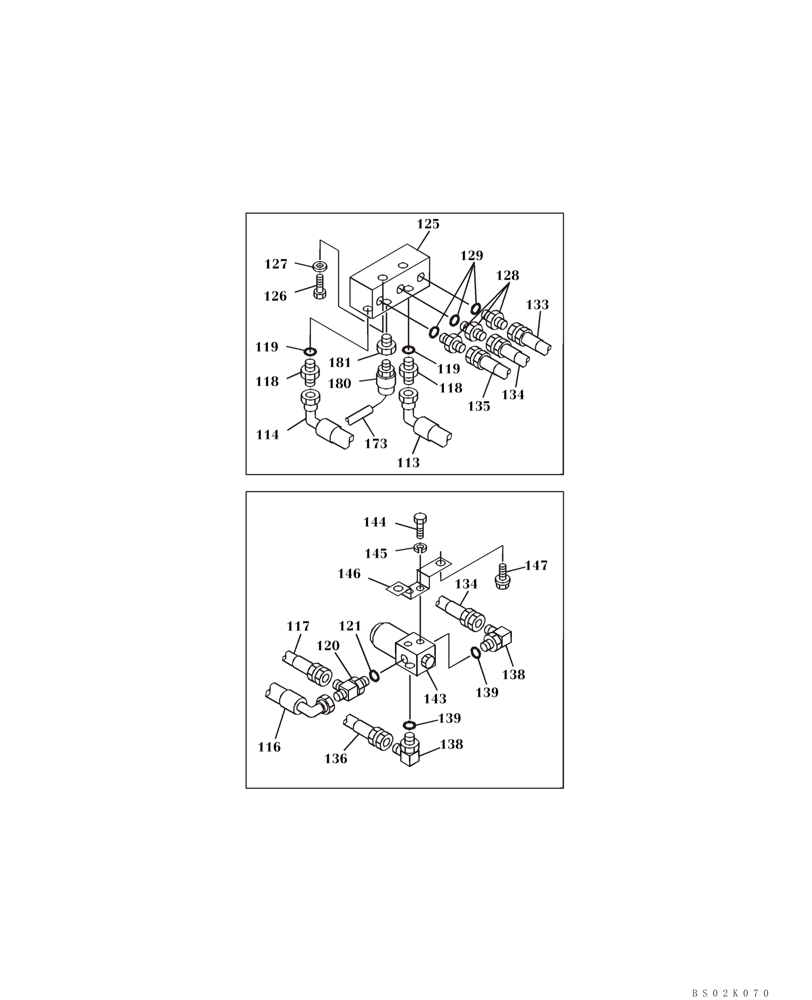

Запчасти Case CX330 (08-046-02[01]) - HYDRAULICS, AUXILIARY - MULTI-PURPOSE + 3 WAY VALVE, TRIGGER ACTIVATED (08) - HYDRAULICS

113

KRJ4748

PLASTIC-RUBBER TUBE

1шт.

114

KAJ3243

HYDRAULIC HOSE

1шт.

116

161494A1

HOSE ASSY.

1шт.

117

159235A1

HYDRAULIC HOSE

850 mm (KRJ3572)

1шт.

118

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

Incl. 119

2шт.

119

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

120

159497A1

TEE

Incl. 121

1шт.

121

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

125

KHJ17100

VALVE PRESSURE RELIE

Shuttle, Replaces KHJ1655

1шт.

126

827-8055

BOLT,Hex, M8 x 1.25 x 55mm, Cl 10.9

2шт.

127

153081A1

WASHER

2шт.

128

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

Incl. 129

3шт.

129

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

133

KHJ1772

HOSE

1шт.

134

161272A1

HOSE

1шт.

135

157839A1

HOSE,6.3 mm ID x 3900.00 mm

1шт.

136

152581A1

HOSE,6.3mm ID x 1900mm L

1шт.

138

150913A1

ELBOW,90 Degree, 1/4" O-Ring x 1/4"

Inc. 139

2шт.

139

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

143

162538A1

VALVE

Solenoid; See Figure 08-252-00 01

1шт.

144

627-6012

BOLT,Hex, M6 x 1 x 12mm, Cl 10.9, Full Thd

2шт.

145

892-11006

LOCK WASHER,M6

2шт.

146

KRJ5751

BRACKET

1шт.

147

166346A1

BOLT,Sems, M10

2шт.

173

KHR3351

HARNESS

1шт.

180

KHR10800

PRESSURE SWITCH

1шт.

181

KHJ11460

ADAPTER

1шт.
