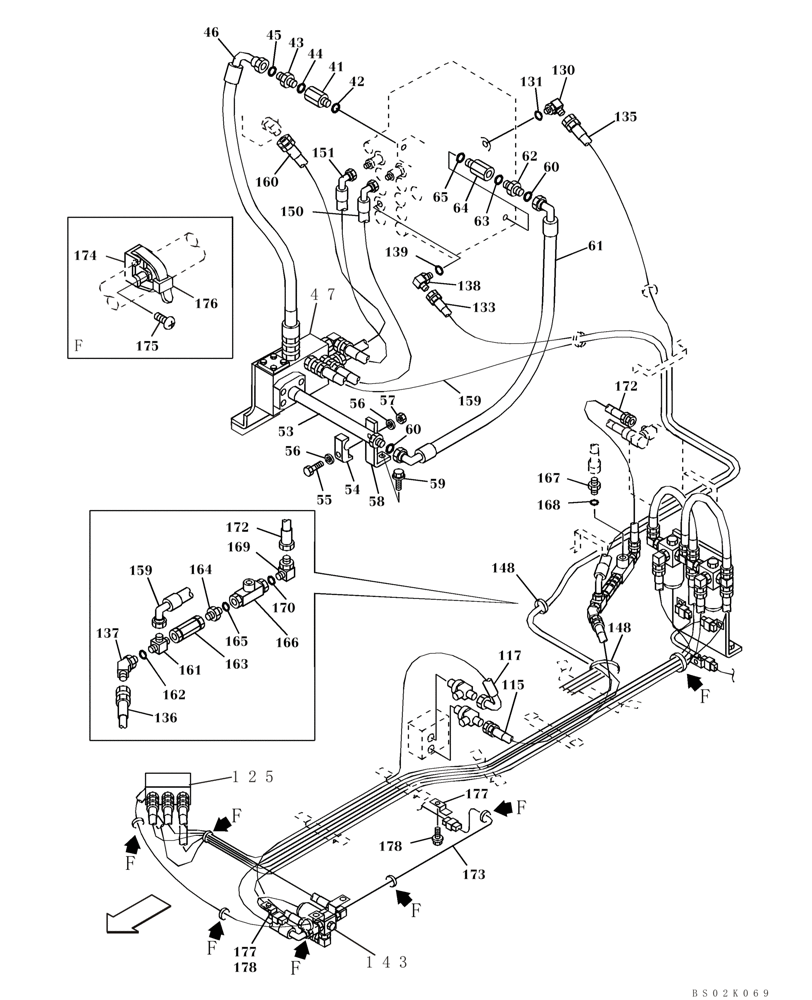

Запчасти Case CX330 (08-046-01[01]) - HYDRAULICS, AUXILIARY - MULTI-PURPOSE + 3 WAY VALVE, TRIGGER ACTIVATED (08) - HYDRAULICS

41

152012A1

ELEC CONNECTOR

Incl. 42

1шт.

42

154503A1

O-RING

1шт.

43

KHJ1348

ADAPTER

Incl. 44

1шт.

44

154503A1

O-RING

1шт.

45

KHJ1360

O-RING,0.07" Thk x 0.739" ID

1шт.

46

KSJ2803

HYDRAULIC HOSE,19.05 mm ID x 600.00 mm

1шт.

47

KHJ1340

VALVE

See Figure 08-253-00 01

1шт.

53

KSJ2805

HYD TUBE,20.8 mm ID x 27.2 mm OD

1шт.

54

151486A1

CLAMP BRACKET

1шт.

55

827-12070

BOLT,Hex, M12 x 1.75 x 70mm, Cl 10.9

1шт.

56

150811A1

WASHER

M12

2шт.

57

829-1412

NUT,M12, Cl 10.9

1шт.

58

KSJ2749

BRACKET

1шт.

59

166352A1

BOLT

1шт.

60

KHJ1360

O-RING,0.07" Thk x 0.739" ID

2шт.

61

KRJ5937

HYDRAULIC HOSE,19.00 mm ID x 720.00 mm

1шт.

62

KHJ1348

ADAPTER

Incl. 63

1шт.

63

154503A1

O-RING

1шт.

64

159198A1

ADAPTER

Incl. 65

1шт.

65

154503A1

O-RING

1шт.

115

151888A1

HOSE,63.00 mm ID x 1350.00 mm

1шт.

117

159235A1

HYDRAULIC HOSE

850 mm (KRJ3572)

1шт.

125

KHJ17100

VALVE PRESSURE RELIE

Shuttle, Replaces KHJ1655

1шт.

130

150913A1

ELBOW,90 Degree, 1/4" O-Ring x 1/4"

Incl. 131

1шт.

131

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

133

KHJ1772

HOSE

1шт.

135

157839A1

HOSE,6.3 mm ID x 3900.00 mm

1шт.

136

152581A1

HOSE,6.3mm ID x 1900mm L

1шт.

137

KHJ1222

ELBOW

1шт.

138

150913A1

ELBOW,90 Degree, 1/4" O-Ring x 1/4"

Incl. 139

1шт.

139

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

143

162538A1

VALVE

Solenoid; See Figure 08-252-00 01

1шт.

148

150071A1

MOUNTING CLIP

1шт.

150

159019A1

HOSE ASSY.

1шт.

151

159019A1

HOSE ASSY.

1шт.

159

161648A1

HOSE ASSY.

1шт.

160

152514A1

HOSE,63mm ID x 1000mm L

1шт.

161

159497A1

TEE

Incl. 162

1шт.

162

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

163

167853A1

ADAPTER

1шт.

164

162654A1

HYD CONNECTOR

1шт.

165

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

166

KHJ17090

VALVE PRESSURE RELIE

Shuttle; Replaces 158186A1

1шт.

167

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

Incl. 168

1шт.

168

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

169

150913A1

ELBOW,90 Degree, 1/4" O-Ring x 1/4"

Incl. 170

1шт.

170

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

172

164727A1

HYDRAULIC HOSE,6.30 mm ID x 900.00 mm

1шт.

173

KHR3351

HARNESS

1шт.

174

150860A1

COLLAR

7шт.

175

840-168

SCREW,Pan, M6 x 1 x 8mm, Cl 4.8

7шт.

176

150496A1

MOUNTING CLIP

7шт.

177

165405A1

CLIP

2шт.

178

156559A1

BOLT,High Strength, Hex, M6 x 12mm, W/ LW

2шт.

190

150067A1

MOUNTING CLIP

Not Illustrated

1шт.
