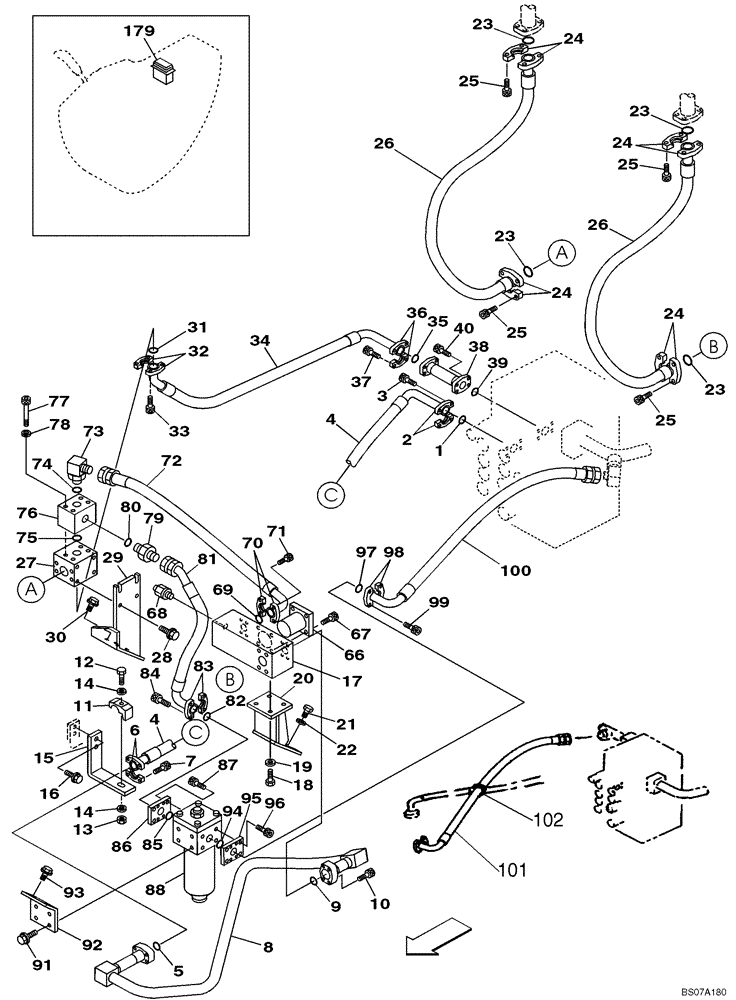

Запчасти Case CX330 (08-046-00[01]) - HYDRAULICS, AUXILIARY - MULTI-PURPOSE + 3 WAY VALVE, TRIGGER ACTIVATED (08) - HYDRAULICS

1

155211A1

O-RING

1шт.

2

153459A1

FLANGE

Split

2шт.

3

862-10030

HEX SOC SCREW,M10 x 30mm, Cl 12.9

4шт.

4

KSJ2737

HYDRAULIC HOSE,31.80 mm ID x 1000.00 mm

1шт.

5

164450A1

O-RING

1шт.

6

150124A1

FLANGE

Split

2шт.

7

862-14045

HEX SOC SCREW,M14 x 45mm, Cl 12.9

4шт.

8

KSJ2799

HYD TUBE,34.7 mm ID x 42.7 mm OD

1шт.

9

164450A1

O-RING

1шт.

10

862-14045

HEX SOC SCREW,M14 x 45mm, Cl 12.9

4шт.

11

KTV1209

CLAMP

1шт.

12

827-16100

BOLT,Hex, M16 x 2 x 100mm, Cl 10.9

1шт.

13

829-1416

NUT,M16, Cl 10

1шт.

14

150814A1

WASHER,17mm ID x 32mm OD x 4.5mm Thk

2шт.

15

KSJ2800

BRACKET

1шт.

16

166352A1

BOLT

2шт.

17

KSJ2740

MANIFOLD

1шт.

18

627-16030

BOLT,Hex, M16 x 2 x 30mm, Cl 10.9, Full Thd

4шт.

19

150814A1

WASHER,17mm ID x 32mm OD x 4.5mm Thk

4шт.

20

KSJ2741

BRACKET

1шт.

21

627-16030

BOLT,Hex, M16 x 2 x 30mm, Cl 10.9, Full Thd

4шт.

22

150814A1

WASHER,17mm ID x 32mm OD x 4.5mm Thk

4шт.

23

164450A1

O-RING

4шт.

24

150124A1

FLANGE

Split

8шт.

25

862-14045

HEX SOC SCREW,M14 x 45mm, Cl 12.9

16шт.

26

KSJ2742

HYDRAULIC HOSE,31.8mm ID x 1670mm L

2шт.

27

KSJ2755

VALVE

See Figure 08-251-00 01

1шт.

28

166352A1

BOLT

4шт.

29

KSJ2743

BRACKET

1шт.

30

152718A1

BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9

4шт.

31

164450A1

O-RING

1шт.

32

150124A1

FLANGE

Split

1шт.

33

862-14045

HEX SOC SCREW,M14 x 45mm, Cl 12.9

1шт.

34

KSJ2844

HYDRAULIC HOSE,31.80 mm ID x 1140.00 mm

1шт.

35

155211A1

O-RING

1шт.

36

153459A1

FLANGE

Split

2шт.

37

862-10030

HEX SOC SCREW,M10 x 30mm, Cl 12.9

4шт.

38

KSJ2802

HYD TUBE,26 mm ID x 34 mm OD

1шт.

39

154548A1

O-RING

1шт.

40

862-10035

HEX SOC SCREW,M10 x 35mm, Cl 12.9

1шт.

66

162658A1

MANIFOLD VALVE

Stop; Incl. 66A

1шт.

66a

LQC0039

SEAL KIT

Not Illustrated

1шт.

67

862-16030

HEX SOC SCREW,M16 x 30mm, Cl 12.9

4шт.

68

162656A1

VALVE

Relief

1шт.

69

164450A1

O-RING

1шт.

70

157856A1

CLAMP BRACKET

2шт.

71

862-10030

HEX SOC SCREW,M10 x 30mm, Cl 12.9

4шт.

72

KSJ2750

HYDRAULIC HOSE,31.80 mm ID x 780.00 mm

1шт.

73

157582A1

ELBOW,90 Degree, 1 1/4" O-Ring x 1 1/4"

Incl. 74

1шт.

74

154559A1

O-RING

1шт.

75

164450A1

O-RING

1шт.

76

162667A1

MANIFOLD

1шт.

77

862-14090

HEX SOC SCREW,M14 x 90mm, Cl 12.9

4шт.

78

150336A1

SPRING WASHER

4шт.

79

159047A1

ADAPTER

Incl. 80

1шт.

80

154559A1

O-RING

1шт.

81

KSJ2751

HYDRAULIC HOSE,31.80 mm ID x 700.00 mm

1шт.

82

164450A1

O-RING

1шт.

83

157856A1

CLAMP BRACKET

Split

2шт.

84

862-10025

HEX SOC SCREW,M10 x 25mm, Cl 12.9

4шт.

85

154625A1

O-RING

1шт.

86

KSJ2752

FLANGE

1шт.

87

862-10025

HEX SOC SCREW,M10 x 25mm, Cl 12.9

4шт.

88

159704A1

FILTER ASSY

See Figure 08-254-00 01

1шт.

91

166052A1

BOLT

4шт.

92

KSJ2753

BRACKET

1шт.

93

166352A1

BOLT

2шт.

94

154625A1

O-RING

1шт.

95

KSJ2752

FLANGE

Flat

1шт.

96

862-10025

HEX SOC SCREW,M10 x 25mm, Cl 12.9

4шт.

97

164450A1

O-RING

1шт.

98

157856A1

CLAMP BRACKET

Split

2шт.

99

862-10025

HEX SOC SCREW,M10 x 25mm, Cl 12.9

4шт.

100

KSJ2754

HYDRAULIC HOSE,31.80 mm ID x 1080.00 mm

Prior To P.I.N. DAC331483

1шт.

101

KSJ11830

HYDRAULIC HOSE

P.I.N. DAC331483 and After

1шт.

102

150496A1

MOUNTING CLIP

1шт.

179

KHR2948

SWITCH

Console Box, Left

1шт.
