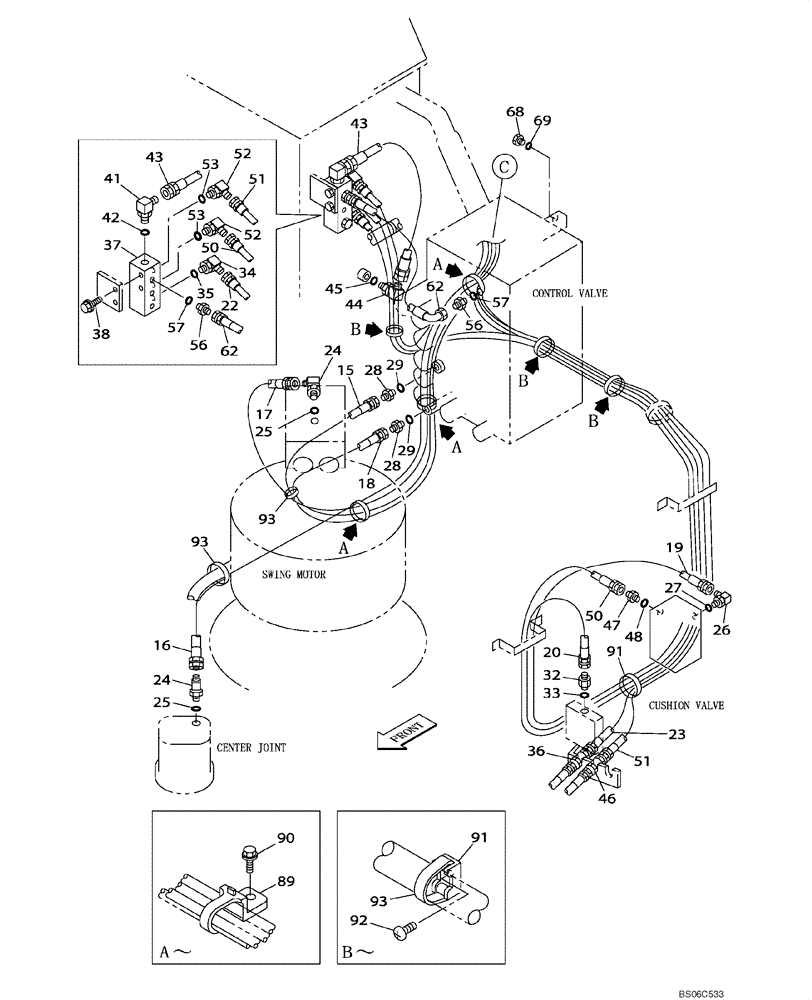

Запчасти Case CX330 (08-039-00[01]) - HYDRAULICS - PILOT PRESSURE, RETURN LINES (08) - HYDRAULICS

15

161293A1

HOSE

3600 mm

1шт.

16

162650A1

HOSE,3500.00 mm

1шт.

17

162649A1

HOSE,3100.00 mm

1шт.

18

164232A1

HOSE ASSY.

3150 mm

1шт.

19

KTJ1786

HOSE

4750 mm

1шт.

20

KTJ1786

HOSE

1шт.

22

164115A1

HYDRAULIC HOSE

1шт.

23

KRJ3894

HOSE

1шт.

24

150933A1

ELBOW

Incl. 25

2шт.

25

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

26

150913A1

ELBOW,90 Degree, 1/4" O-Ring x 1/4"

Incl. 27

1шт.

27

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

28

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

Incl. 29, Was Qty. 2

1шт.

28

150933A1

ELBOW

Incl. 29

1шт.

29

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

32

KHJ1291

ORIFICE

Incl. 33

1шт.

33

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

34

150916A1

ELBOW,90 Degree, 3/8" O-Ring x 3/8"

Incl. 35

1шт.

35

154475A1

O-RING

1шт.

36

162826A1

ADAPTER

1шт.

37

KNJ2574

MANIFOLD

1шт.

38

166350A1

BOLT

M8 x 20

2шт.

39

159002A1

PLUG

Incl. 40

1шт.

40

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

41

150919A1

ELBOW,90 Degree, 1/2" O-Ring x 1/2"

Incl. 42

1шт.

42

154487A1

O-RING

1шт.

43

KHJ1767

HYDRAULIC HOSE

1шт.

44

150919A1

ELBOW,90 Degree, 1/2" O-Ring x 1/2"

Incl. 45

1шт.

45

154487A1

O-RING

1шт.

46

162826A1

ADAPTER

1шт.

47

152747A1

ADAPTER

Incl. 48

1шт.

48

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

50

159063A1

HOSE

3800 mm

1шт.

51

157971A1

HOSE

2800 mm

1шт.

52

150916A1

ELBOW,90 Degree, 3/8" O-Ring x 3/8"

Incl. 53

2шт.

53

154475A1

O-RING

1шт.

56

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

Incl. 57, Was Qty. 2

1шт.

56

150933A1

ELBOW

Incl. 29

1шт.

57

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

62

KHJ2732

HYDRAULIC HOSE,6.30 mm ID x 600.00 mm

1шт.

68

159002A1

PLUG

Incl. 69

1шт.

69

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

89

KHR2581

CLAMP

4шт.

90

KHJ1215

BOLT,Spcl

4шт.

91

150860A1

COLLAR

3шт.

92

840-168

SCREW,Pan, M6 x 1 x 8mm, Cl 4.8

3шт.

93

150071A1

MOUNTING CLIP

380 mm

1шт.
