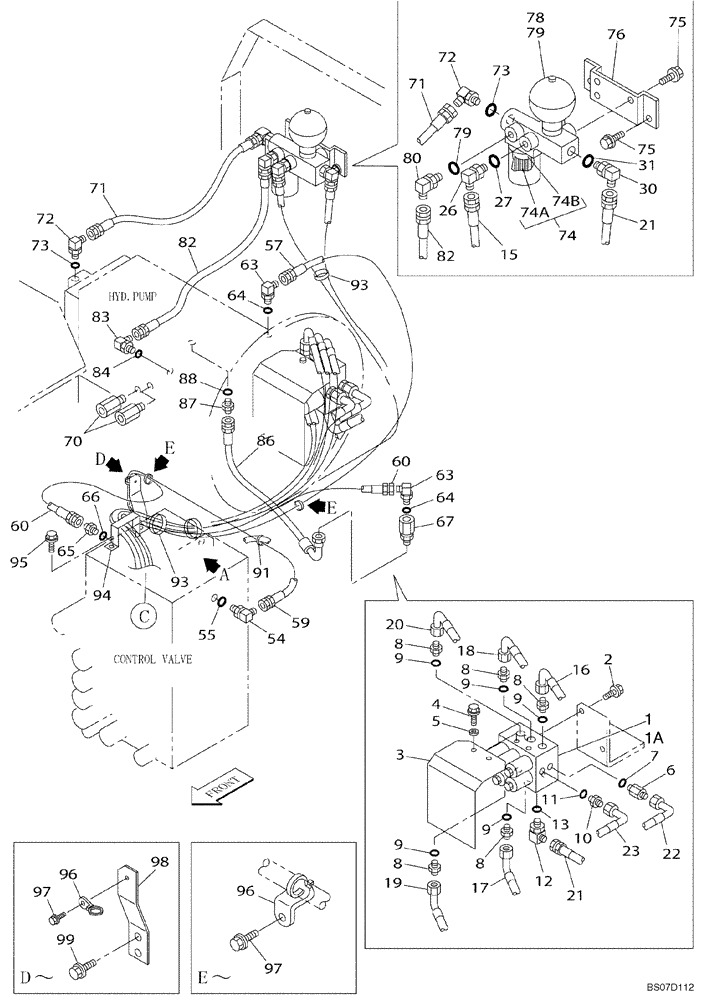

Запчасти Case CX330 (08-038-00[01]) - HYDRAULICS - PILOT PRESSURE, RETURN LINES (08) - HYDRAULICS

1

KHJ1972

SOLENOID VALVE

See Figure 08-250-00 01; No Longer Available, Order KHJ15460

1шт.

1a

KHJ15460

SOLENOID VALVE

See Figure 08-250-01 01

1шт.

2

166351A1

BOLT,Sems, M10 x 20mm

M10 x 20

2шт.

3

KHJ1581

COVER

1шт.

4

156559A1

BOLT,High Strength, Hex, M6 x 12mm, W/ LW

M6 x 12

2шт.

5

895-1106

WASHER

W6

2шт.

6

159226A1

ADAPTER

Incl. 7

1шт.

7

154475A1

O-RING

1шт.

8

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

Incl. 9

5шт.

9

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

10

152128A1

HYD CONNECTOR,3/8" NPT O-Ring x 3/8" NPT

Incl. 11

1шт.

11

154475A1

O-RING

1шт.

12

150916A1

ELBOW,90 Degree, 3/8" O-Ring x 3/8"

Incl. 13

1шт.

13

154475A1

O-RING

1шт.

15

161293A1

HOSE

3600 mm

1шт.

16

162650A1

HOSE,3500.00 mm

1шт.

17

162649A1

HOSE,3100.00 mm

1шт.

18

164232A1

HOSE ASSY.

3150 mm

1шт.

19

KTJ1786

HOSE

4750 mm

1шт.

20

KTJ1786

HOSE

1шт.

21

KMJ2204

HOSE

1шт.

22

164115A1

HYDRAULIC HOSE

1шт.

23

KRJ3894

HOSE

1шт.

26

150913A1

ELBOW,90 Degree, 1/4" O-Ring x 1/4"

Incl. 27

1шт.

27

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

30

157935A1

ELBOW

Incl. 31

1шт.

31

154487A1

O-RING

1шт.

54

150913A1

ELBOW,90 Degree, 1/4" O-Ring x 1/4"

Incl. 55

1шт.

55

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

59

KHJ2691

HYDRAULIC HOSE,6.30 mm ID x 2600.00 mm

1шт.

60

KHJ1226

HYDRAULIC HOSE,6.35 mm ID x 1550.00 mm

1шт.

63

150913A1

ELBOW,90 Degree, 1/4" O-Ring x 1/4"

Incl. 64

2шт.

64

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

65

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

Incl. 66

1шт.

66

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

67

167662A1

FITTING

1шт.

70

KHV0373

STUD

2шт.

71

KHJ2427

HYDRAULIC HOSE,12.70 mm ID x 600.00 mm

1шт.

72

150919A1

ELBOW,90 Degree, 1/2" O-Ring x 1/2"

Incl. 73

2шт.

73

154487A1

O-RING

1шт.

74

KHJ2562

MANIFOLD

Incl. 74A, 74B

1шт.

74a

153233A1

HYDRAULIC OIL FILTER

1шт.

74b

164690A1

O-RING

1шт.

75

166350A1

BOLT

M8 x 20

3шт.

76

KRJ5948

BRACKET

1шт.

77

166351A1

BOLT,Sems, M10 x 20mm

M10 x 20

2шт.

78

150894A1

ACCUMULATOR

Incl. 79

1шт.

79

154487A1

O-RING

1шт.

80

150913A1

ELBOW,90 Degree, 1/4" O-Ring x 1/4"

Incl. 81

1шт.

81

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

82

161272A1

HOSE

1шт.

83

150913A1

ELBOW,90 Degree, 1/4" O-Ring x 1/4"

Incl. 84

1шт.

84

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

85

KHJ2733

HYDRAULIC HOSE,6.30 mm ID x 700.00 mm

1шт.

86

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

Incl. 88

1шт.

88

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

93

150071A1

MOUNTING CLIP

380 mm

1шт.

94

159032A1

CLAMP

1шт.

95

166350A1

BOLT

M8 x 20

2шт.

96

KHR2583

CLAMP

3шт.

97

159906A1

BOLT,Sems, Hex, M6 x 20mm, Spcl

M6 x 20

3шт.

98

KSJ10830

SUPPORT

1шт.

99

166351A1

BOLT,Sems, M10 x 20mm

M10 x 20

2шт.
