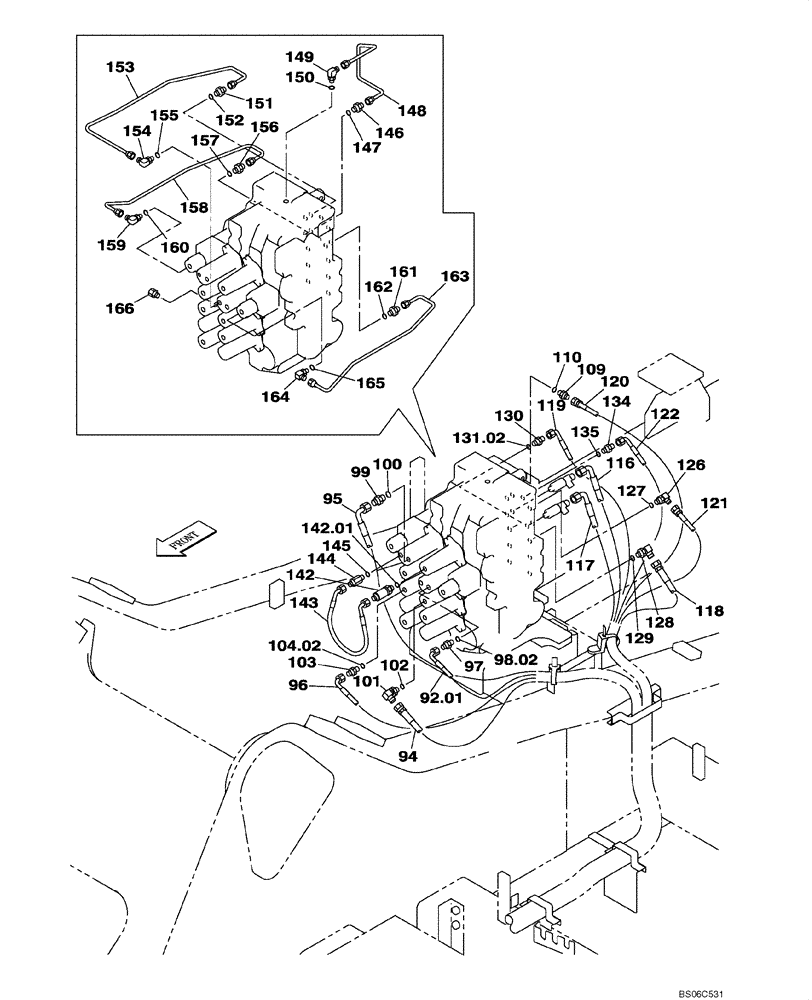

Запчасти Case CX330 (08-037-00[01]) - PILOT CONTROL LINES, CONTROL VALVE - MODELS WITH LOAD HOLD (08) - HYDRAULICS
![Схема запчастей Case CX330 - (08-037-00[01]) - PILOT CONTROL LINES, CONTROL VALVE - MODELS WITH LOAD HOLD (08) - HYDRAULICS](https://partsell.ru/storage/images/casece/268526.png)
№
Артикул
Название
Примечание
Количество
92.01
161487A1
HOSE ASSY.
2800 mm
1шт.
94
157972A1
HOSE ASSY.
2900 mm
1шт.
95
KMJ1830
HOSE
2900 mm
1шт.
96
163359A1
HOSE ASSY.
2750 mm
1шт.
97
152128A1
HYD CONNECTOR,3/8" NPT O-Ring x 3/8" NPT
Incl. 98.02
1шт.
98.02
154475A1
O-RING
1шт.
99
152128A1
HYD CONNECTOR,3/8" NPT O-Ring x 3/8" NPT
Incl. 100
1шт.
100
154475A1
O-RING
1шт.
101
153559A1
ELBOW
Incl. 102
1шт.
102
154467A1
O-RING,10.8mm ID x 2.4mm Width
1шт.
103
152127A1
HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT
Incl. 104.02
1шт.
104.02
154467A1
O-RING,10.8mm ID x 2.4mm Width
1шт.
109
152127A1
HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT
Incl. 110
1шт.
110
154467A1
O-RING,10.8mm ID x 2.4mm Width
1шт.
116
161487A1
HOSE ASSY.
2800 mm
1шт.
117
KMJ1830
HOSE
2900 mm
1шт.
118
157972A1
HOSE ASSY.
2900 mm
1шт.
119
163359A1
HOSE ASSY.
2750 mm
1шт.
120
KAJ3508
HYDRAULIC HOSE
1шт.
121
152275A1
HOSE,63mm ID x 2900mm L
1шт.
122
162193A1
HOSE ASSY.
2900 mm
1шт.
126
150913A1
ELBOW,90 Degree, 1/4" O-Ring x 1/4"
Incl. 127
1шт.
127
154467A1
O-RING,10.8mm ID x 2.4mm Width
1шт.
128
153559A1
ELBOW
Incl. 129
1шт.
129
154467A1
O-RING,10.8mm ID x 2.4mm Width
1шт.
130
152127A1
HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT
Incl. 131
1шт.
131
154467A1
O-RING,10.8mm ID x 2.4mm Width
1шт.
134
162366A1
ADAPTER
Incl. 135
1шт.
135
154467A1
O-RING,10.8mm ID x 2.4mm Width
1шт.
142
163104A1
ADAPTER
Incl. 142.01
1шт.
142.01
154467A1
O-RING,10.8mm ID x 2.4mm Width
1шт.
143
161176A1
HOSE ASSY.
450 mm
1шт.
144
162554A1
FITTING
Incl. 145
1шт.
145
154467A1
O-RING,10.8mm ID x 2.4mm Width
1шт.
146
KHJ1821
NIPPLE, LUBE
NIPPLE Incl. 147
1шт.
147
154475A1
O-RING
1шт.
148
KRJ6097
TUBE ASSY.
1шт.
149
KHJ1391
COUPLING
Incl. 150
1шт.
150
154467A1
O-RING,10.8mm ID x 2.4mm Width
1шт.
151
KHJ1390
NIPPLE, LUBE
NIPPLE Incl. 152
1шт.
152
154467A1
O-RING,10.8mm ID x 2.4mm Width
1шт.
153
KRJ6098
HYD TUBE,6 mm ID x 8 mm OD
1шт.
154
KHJ1391
COUPLING
Incl. 155
1шт.
155
154467A1
O-RING,10.8mm ID x 2.4mm Width
1шт.
156
KHJ1390
NIPPLE, LUBE
NIPPLE Incl. 157
1шт.
157
154467A1
O-RING,10.8mm ID x 2.4mm Width
1шт.
158
KRJ6099
HYD TUBE,6 mm ID x 8 mm OD
1шт.
159
KHJ1391
COUPLING
Incl. 160
1шт.
160
154467A1
O-RING,10.8mm ID x 2.4mm Width
1шт.
161
KHJ1390
NIPPLE, LUBE
NIPPLE Incl. 162
1шт.
162
154467A1
O-RING,10.8mm ID x 2.4mm Width
1шт.
163
KRJ6099
HYD TUBE,6 mm ID x 8 mm OD
1шт.
164
KHJ1391
COUPLING
Incl. 165
1шт.
165
154467A1
O-RING,10.8mm ID x 2.4mm Width
1шт.
166
KHJ11450
ADAPTER
Incl. 167
1шт.
167
154467A1
O-RING,10.8mm ID x 2.4mm Width
1шт.
Выбрано товаров: 56
