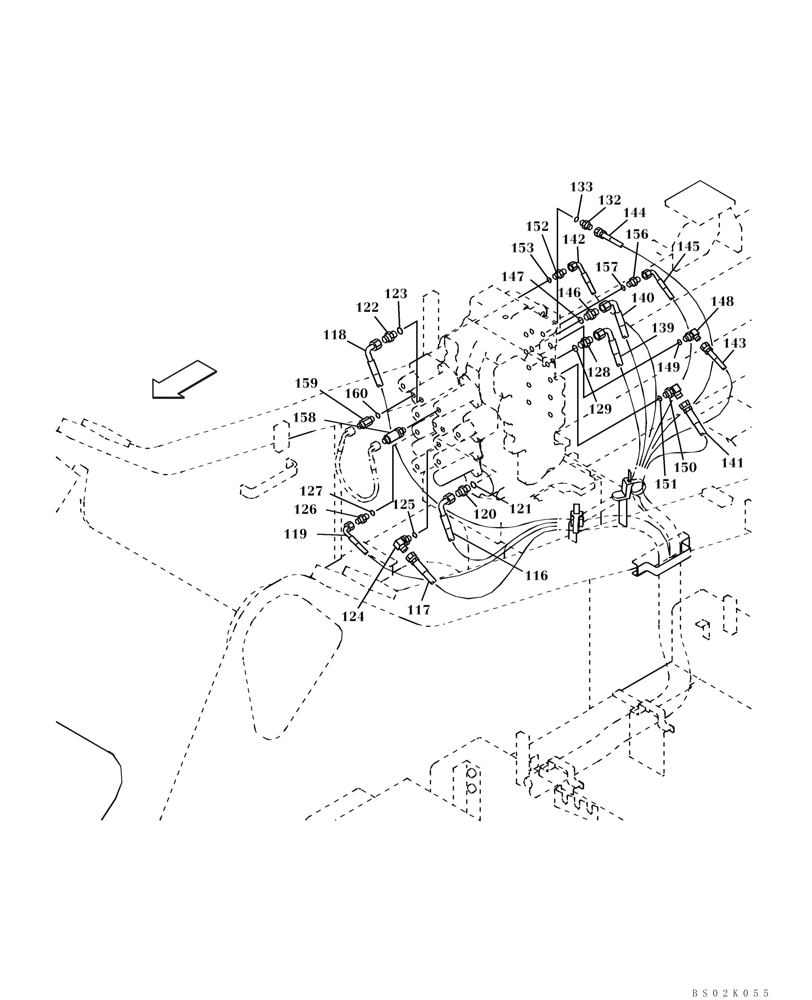

Запчасти Case CX330 (08-036-01[01]) - PILOT CONTROL LINES, CONTROL VALVE - MODELS WITH CONTROL SELECTOR VALVE (08) - HYDRAULICS

116

161487A1

HOSE ASSY.

2800 mm (110-1/4 in)

1шт.

117

157972A1

HOSE ASSY.

2900 mm (114-3/16 in)

1шт.

118

KMJ1830

HOSE

1шт.

119

163359A1

HOSE ASSY.

2750 mm (108-1/4 in)

1шт.

120

152128A1

HYD CONNECTOR,3/8" NPT O-Ring x 3/8" NPT

Incl. 121

1шт.

121

154475A1

O-RING

1шт.

122

152128A1

HYD CONNECTOR,3/8" NPT O-Ring x 3/8" NPT

Incl. 123

1шт.

123

154475A1

O-RING

1шт.

124

153559A1

ELBOW

Incl. 125

1шт.

125

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

126

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

Incl. 127

1шт.

127

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

128

152128A1

HYD CONNECTOR,3/8" NPT O-Ring x 3/8" NPT

Incl. 129

1шт.

129

154475A1

O-RING

1шт.

132

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

Incl. 133

1шт.

133

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

139

161487A1

HOSE ASSY.

2800 mm (110-1/4 in)

1шт.

140

KMJ1830

HOSE

1шт.

141

157972A1

HOSE ASSY.

2900 mm (114-3/16 in)

1шт.

142

163359A1

HOSE ASSY.

2750 mm (108-1/4 in)

1шт.

143

KAJ3508

HYDRAULIC HOSE

1шт.

144

152275A1

HOSE,63mm ID x 2900mm L

1шт.

145

162193A1

HOSE ASSY.

1шт.

146

152128A1

HYD CONNECTOR,3/8" NPT O-Ring x 3/8" NPT

Incl. 147

1шт.

147

154475A1

O-RING

1шт.

148

150913A1

ELBOW,90 Degree, 1/4" O-Ring x 1/4"

Incl. 149

1шт.

149

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

150

153559A1

ELBOW

Incl. 151

1шт.

151

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

152

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

Incl. 153

1шт.

153

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

156

162366A1

ADAPTER

Incl. 157

1шт.

157

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

158

KHJ2354

VALVE, CUSHION

See Figure 08-256-00 01

1шт.

159

162554A1

FITTING

Incl. 160

1шт.

160

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.
