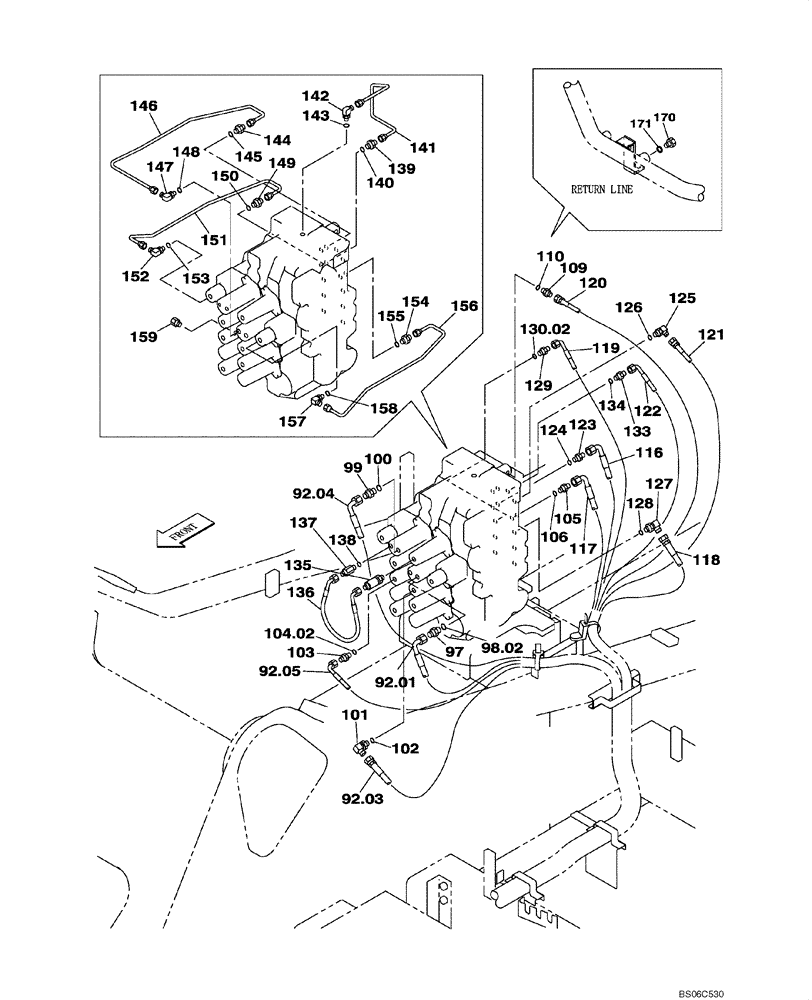

Запчасти Case CX330 (08-036-00[01]) - PILOT CONTROL LINES, CONTROL VALVE - MODELS WITHOUT LOAD HOLD (08) - HYDRAULICS
![Схема запчастей Case CX330 - (08-036-00[01]) - PILOT CONTROL LINES, CONTROL VALVE - MODELS WITHOUT LOAD HOLD (08) - HYDRAULICS](https://partsell.ru/storage/images/casece/59958.png)
№
Артикул
Название
Примечание
Количество
92.01
161487A1
HOSE ASSY.
2800 mm
1шт.
92.03
157972A1
HOSE ASSY.
2900 mm
1шт.
92.04
KMJ1830
HOSE
2900 mm
1шт.
92.05
163359A1
HOSE ASSY.
2750 mm
1шт.
97
152128A1
HYD CONNECTOR,3/8" NPT O-Ring x 3/8" NPT
Incl. 98.02
1шт.
98.02
154475A1
O-RING
1шт.
99
152128A1
HYD CONNECTOR,3/8" NPT O-Ring x 3/8" NPT
Incl. 100
1шт.
100
154475A1
O-RING
1шт.
101
153559A1
ELBOW
Incl. 102
1шт.
102
154467A1
O-RING,10.8mm ID x 2.4mm Width
1шт.
103
152127A1
HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT
Incl. 104.02
1шт.
104.02
154467A1
O-RING,10.8mm ID x 2.4mm Width
1шт.
105
152128A1
HYD CONNECTOR,3/8" NPT O-Ring x 3/8" NPT
Incl. 106
1шт.
106
154475A1
O-RING
1шт.
109
152127A1
HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT
Incl. 110
1шт.
110
154467A1
O-RING,10.8mm ID x 2.4mm Width
1шт.
116
161487A1
HOSE ASSY.
2800 mm
1шт.
117
KMJ1830
HOSE
2800 mm
1шт.
118
157972A1
HOSE ASSY.
2900 mm
1шт.
119
163359A1
HOSE ASSY.
2750 mm
1шт.
120
KAJ3508
HYDRAULIC HOSE
1шт.
121
152275A1
HOSE,63mm ID x 2900mm L
1шт.
122
162193A1
HOSE ASSY.
2900 mm
1шт.
123
152128A1
HYD CONNECTOR,3/8" NPT O-Ring x 3/8" NPT
Incl. 124
1шт.
124
154475A1
O-RING
1шт.
125
150913A1
ELBOW,90 Degree, 1/4" O-Ring x 1/4"
Incl. 126
1шт.
126
154467A1
O-RING,10.8mm ID x 2.4mm Width
1шт.
127
153559A1
ELBOW
Incl. 128
1шт.
128
154467A1
O-RING,10.8mm ID x 2.4mm Width
1шт.
129
152127A1
HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT
Incl. 130.02
1шт.
130.02
154467A1
O-RING,10.8mm ID x 2.4mm Width
1шт.
133
162366A1
ADAPTER
Incl. 134
1шт.
134
154467A1
O-RING,10.8mm ID x 2.4mm Width
1шт.
135
KHJ2354
VALVE, CUSHION
See Page(s) 02-256-00 01
1шт.
136
161176A1
HOSE ASSY.
450 mm
1шт.
137
162554A1
FITTING
Incl. 138
1шт.
138
154467A1
O-RING,10.8mm ID x 2.4mm Width
1шт.
139
KHJ1821
NIPPLE, LUBE
NIPPLE Incl. 140
1шт.
140
154475A1
O-RING
1шт.
141
KRJ6097
TUBE ASSY.
1шт.
142
KHJ1391
COUPLING
Incl. 143
1шт.
143
154467A1
O-RING,10.8mm ID x 2.4mm Width
1шт.
144
KHJ1390
NIPPLE, LUBE
NIPPLE Incl. 145
1шт.
145
154467A1
O-RING,10.8mm ID x 2.4mm Width
1шт.
146
KRJ6098
HYD TUBE,6 mm ID x 8 mm OD
1шт.
147
KHJ1391
COUPLING
Incl. 148
1шт.
148
154467A1
O-RING,10.8mm ID x 2.4mm Width
1шт.
149
KHJ1390
NIPPLE, LUBE
NIPPLE Incl. 150
1шт.
150
154467A1
O-RING,10.8mm ID x 2.4mm Width
1шт.
151
KRJ6099
HYD TUBE,6 mm ID x 8 mm OD
1шт.
152
KHJ1391
COUPLING
Incl. 153
1шт.
153
154467A1
O-RING,10.8mm ID x 2.4mm Width
1шт.
154
KHJ1390
NIPPLE, LUBE
NIPPLE Incl. 155
1шт.
155
154467A1
O-RING,10.8mm ID x 2.4mm Width
1шт.
156
KRJ6099
HYD TUBE,6 mm ID x 8 mm OD
1шт.
157
KHJ1391
COUPLING
Incl. 158
1шт.
158
154467A1
O-RING,10.8mm ID x 2.4mm Width
1шт.
159
KHJ11450
ADAPTER
1шт.
170
152924A1
PLUG
Incl. 171
1шт.
Выбрано товаров: 60
