Запчасти Case CX330 (08-035-02[01]) - PILOT CONTROL LINES, PARTITION - MODELS WITH LOAD HOLD & CONTROL SELECTOR VALVE (08) - HYDRAULICS

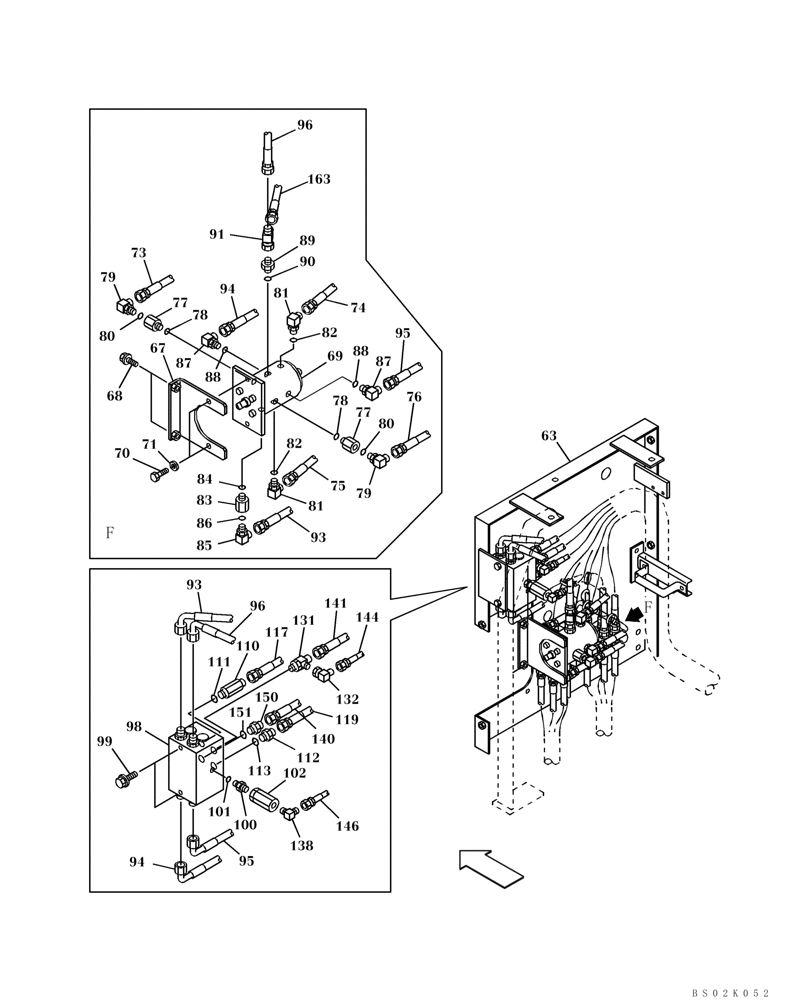

Схема запчастей Case CX330 - (08-035-02[01]) - PILOT CONTROL LINES, PARTITION - MODELS WITH LOAD HOLD & CONTROL SELECTOR VALVE (08) - HYDRAULICS
75
113
f
80
69
102
99
88
82
87
132
111
bs02k052
117
131
81
101
100
138
151
71
94
86
110
140
95
98
79
146
80
82
68
f
76
93
63
78
70
90
78
141
95
84
88
96
67
94
119
89
93
163
81
85
77
87
79
144
112
150
74
77
83
96
73
91

Артикул

Название

Примечание

Количество

63

KTJ2107

BRACKET

1шт.

67

KNJ2946

BRACKET

1шт.

68

166052A1

BOLT

2шт.

69

KHJ2184

VALVE

See Figure 08-260-00 01

1шт.

70

167836A1

BOLT,High Strength, M10 x 25mm

2шт.

71

150409A1

WASHER

2шт.

73

KHJ1306

HYDRAULIC HOSE,9.52 mm ID x 550.00 mm

1шт.

74

167871A1

HYDRAULIC HOSE,19.00 mm ID x 700.00 mm

1шт.

75

KHJ1306

HYDRAULIC HOSE,9.52 mm ID x 550.00 mm

1шт.

76

167871A1

HYDRAULIC HOSE,19.00 mm ID x 700.00 mm

1шт.

77

KHJ1584

UNION

Incl. 78

2шт.

78

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

79

150916A1

ELBOW,90 Degree, 3/8" O-Ring x 3/8"

Incl. 80

2шт.

80

154475A1

O-RING

1шт.

81

153559A1

ELBOW

Incl. 82

2шт.

82

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

83

KHJ1584

UNION

Incl. 84

1шт.

84

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

85

150916A1

ELBOW,90 Degree, 3/8" O-Ring x 3/8"

Incl. 86

1шт.

86

154475A1

O-RING

1шт.

87

153559A1

ELBOW

Incl. 88

2шт.

88

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

89

152747A1

ADAPTER

Incl. 90

1шт.

90

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

91

KHJ2234

TEE

1шт.

93

KHJ1169

HYDRAULIC HOSE,9.52 mm ID x 2400.00 mm

1шт.

94

KHJ1193

HYDRAULIC HOSE,9.52 mm ID x 450.00 mm

1шт.

95

KHJ1062

HYDRAULIC HOSE,9.52 mm ID x 550.00 mm

1шт.

96

KHJ1168

HYDRAULIC HOSE,9.52 mm ID x 350.00 mm

1шт.

98

KSJ2845

VALVE, CUSHION

1шт.

99

166052A1

BOLT

2шт.

100

152899A1

HYD CONNECTOR

Incl. 101

1шт.

101

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

102

151552A1

FILTER

1шт.

110

KAJ2351

FITTING

Incl. 111

1шт.

111

154475A1

O-RING

1шт.

112

152128A1

HYD CONNECTOR,3/8" NPT O-Ring x 3/8" NPT

Incl. 113

1шт.

113

154475A1

O-RING

1шт.

117

161487A1

HOSE ASSY.

1шт.

119

KMJ1830

HOSE

1шт.

131

163422A1

TEE

1шт.

132

163814A1

ELBOW

1шт.

138

153596A1

ADAPTER

1шт.

140

161487A1

HOSE ASSY.

1шт.

141

KMJ1830

HOSE

1шт.

144

KAJ3508

HYDRAULIC HOSE

1шт.

146

162193A1

HOSE ASSY.

1шт.

150

152128A1

HYD CONNECTOR,3/8" NPT O-Ring x 3/8" NPT

Incl. 151

1шт.

151

154475A1

O-RING

1шт.

163

159066A1

HOSE

1шт.

Выбрано товаров: 50
