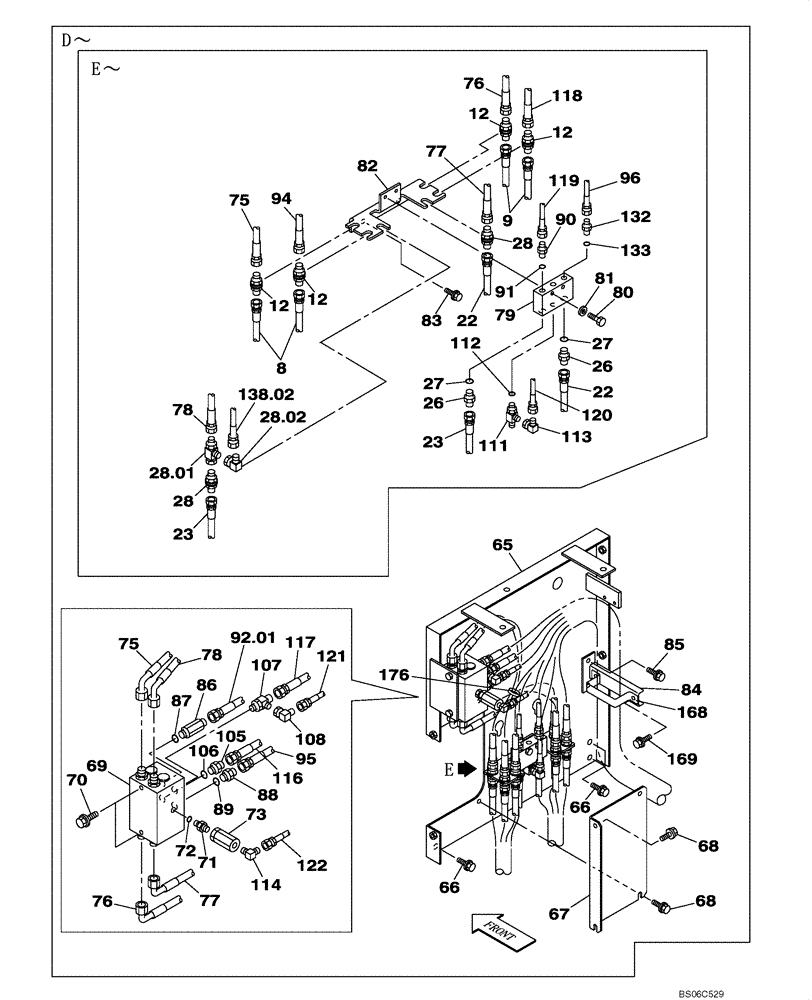

Запчасти Case CX330 (08-035-00[01]) - PILOT CONTROL LINES, PARTITION - MODELS WITH LOAD HOLD (08) - HYDRAULICS

8

KRJ4336

HYDRAULIC HOSE,9.50 mm ID x 2200.00 mm

2шт.

9

168025A1

HYDRAULIC HOSE,9.50 mm ID x 1950.00 mm

2шт.

12

162826A1

ADAPTER

4шт.

22

KHJ1345

HYDRAULIC HOSE,9.52 mm ID x 2150.00 mm

2шт.

23

168025A1

HYDRAULIC HOSE,9.50 mm ID x 1950.00 mm

2шт.

26

152747A1

ADAPTER

Incl. 27

2шт.

27

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

28

162826A1

ADAPTER

2шт.

28.01

KHJ2234

TEE

1шт.

28.02

153526A1

ELBOW

1шт.

65

KTJ2107

BRACKET

1шт.

66

166352A1

BOLT

M12 x 30

3шт.

67

KTJ2108

COVER

1шт.

68

166052A1

BOLT

M10 x 25

4шт.

69

KSJ2845

VALVE, CUSHION

See Figure 08-258-00 01

1шт.

70

166052A1

BOLT

M10 x 25

2шт.

71

152899A1

HYD CONNECTOR

Incl. 72

1шт.

72

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

73

151552A1

FILTER

1шт.

75

KRJ3569

HOSE

1шт.

76

162835A1

HOSE ASSY.

600 mm

1шт.

77

162835A1

HOSE ASSY.

600 mm

1шт.

78

KRJ3569

HOSE

1шт.

79

KHJ17120

VALVE SECTION

; Replaces KHJ1973

1шт.

80

827-8045

BOLT,Hex, M8 x 1.25 x 45mm, Cl 10.9

2шт.

81

153081A1

WASHER

M8

2шт.

82

KHJ1576

BRACKET

1шт.

83

166052A1

BOLT

M10 x 25

2шт.

84

KTJ2109

BRACKET

1шт.

85

166052A1

BOLT

M10 x 25

2шт.

86

KAJ2351

FITTING

Incl. 87

1шт.

87

154475A1

O-RING

1шт.

88

152128A1

HYD CONNECTOR,3/8" NPT O-Ring x 3/8" NPT

Incl. 89

1шт.

89

154475A1

O-RING

1шт.

90

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

Incl. 91

1шт.

91

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

92.01

161487A1

HOSE ASSY.

2800 mm

1шт.

94

157972A1

HOSE ASSY.

2900 mm

1шт.

95

KMJ1830

HOSE

2900 mm

1шт.

96

163359A1

HOSE ASSY.

275 mm

1шт.

105

152128A1

HYD CONNECTOR,3/8" NPT O-Ring x 3/8" NPT

Incl. 106

1шт.

106

154475A1

O-RING

1шт.

107

163422A1

TEE

1шт.

108

163814A1

ELBOW

1шт.

111

KHJ2773

TEE

Incl. 112

1шт.

112

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

113

163814A1

ELBOW

1шт.

114

153596A1

ADAPTER

1шт.

116

161487A1

HOSE ASSY.

2800 mm

1шт.

117

KMJ1830

HOSE

1шт.

118

157972A1

HOSE ASSY.

2900 mm

1шт.

119

163359A1

HOSE ASSY.

275 mm

1шт.

120

KAJ3508

HYDRAULIC HOSE

1шт.

121

152275A1

HOSE,63mm ID x 2900mm L

1шт.

122

162193A1

HOSE ASSY.

2900 mm

1шт.

132

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

Incl. 133

1шт.

133

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

138.02

159066A1

HOSE

4100 mm

1шт.

168

159036A1

CLAMP

1шт.

169

166350A1

BOLT

M8 x 20

2шт.

176

150071A1

MOUNTING CLIP

380 mm

1шт.
