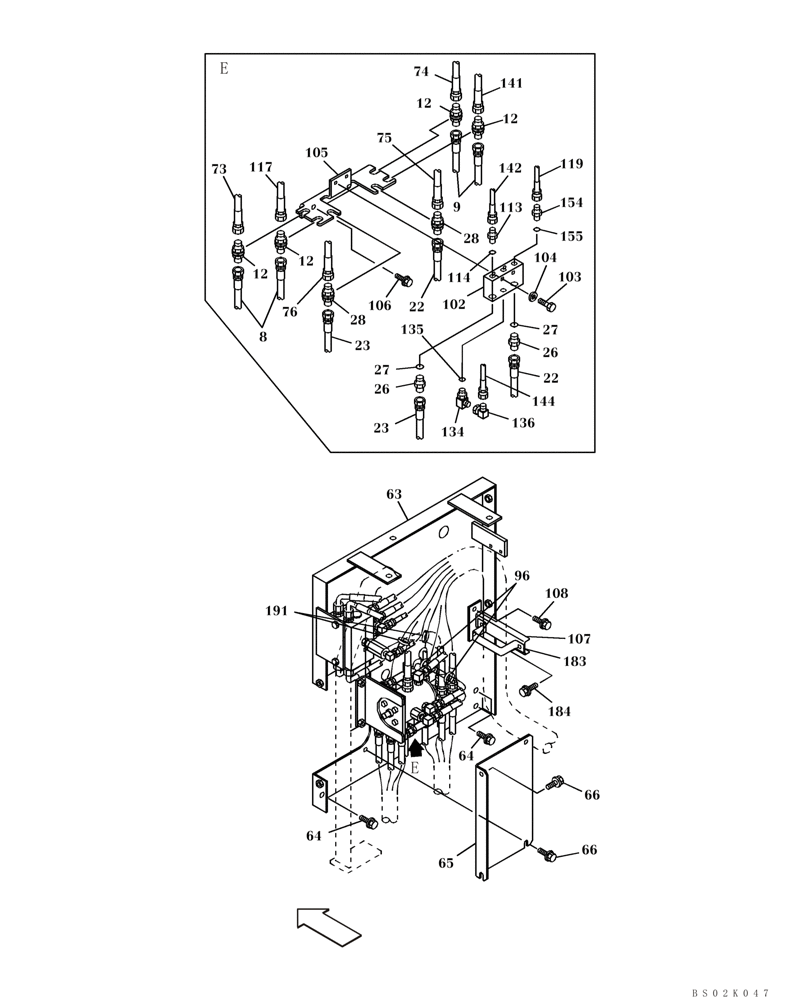

Запчасти Case CX330 (08-034-01[01]) - PILOT CONTROL LINES, PARTITION - MODELS WITH CONTROL SELECTOR VALVE (08) - HYDRAULICS

8

KRJ4336

HYDRAULIC HOSE,9.50 mm ID x 2200.00 mm

2шт.

9

168025A1

HYDRAULIC HOSE,9.50 mm ID x 1950.00 mm

2шт.

12

162826A1

ADAPTER

4шт.

22

KHJ1345

HYDRAULIC HOSE,9.52 mm ID x 2150.00 mm

2шт.

23

168025A1

HYDRAULIC HOSE,9.50 mm ID x 1950.00 mm

2шт.

26

152747A1

ADAPTER

Incl. 27

2шт.

27

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

28

162826A1

ADAPTER

2шт.

63

KTJ2107

BRACKET

1шт.

64

166352A1

BOLT

3шт.

65

KTJ2108

COVER

1шт.

66

166052A1

BOLT

4шт.

73

KHJ1306

HYDRAULIC HOSE,9.52 mm ID x 550.00 mm

1шт.

74

167871A1

HYDRAULIC HOSE,19.00 mm ID x 700.00 mm

1шт.

75

KHJ1306

HYDRAULIC HOSE,9.52 mm ID x 550.00 mm

1шт.

76

167871A1

HYDRAULIC HOSE,19.00 mm ID x 700.00 mm

1шт.

96

150496A1

MOUNTING CLIP

1шт.

102

KHJ17120

VALVE SECTION

; Replaces KHJ1973

1шт.

103

827-8045

BOLT,Hex, M8 x 1.25 x 45mm, Cl 10.9

2шт.

104

153081A1

WASHER

2шт.

105

KHJ1576

BRACKET

1шт.

106

166052A1

BOLT

2шт.

107

KTJ2109

BRACKET

1шт.

108

166052A1

BOLT

2шт.

113

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

Incl. 114

1шт.

114

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

117

157972A1

HOSE ASSY.

1шт.

119

163359A1

HOSE ASSY.

1шт.

134

KHJ2773

TEE

Incl. 135

1шт.

135

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

136

163814A1

ELBOW

1шт.

141

157972A1

HOSE ASSY.

1шт.

142

163359A1

HOSE ASSY.

1шт.

144

152275A1

HOSE,63mm ID x 2900mm L

1шт.

154

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

Incl. 155

1шт.

155

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

183

159036A1

CLAMP

1шт.

184

166350A1

BOLT

2шт.

191

150071A1

MOUNTING CLIP

1шт.
