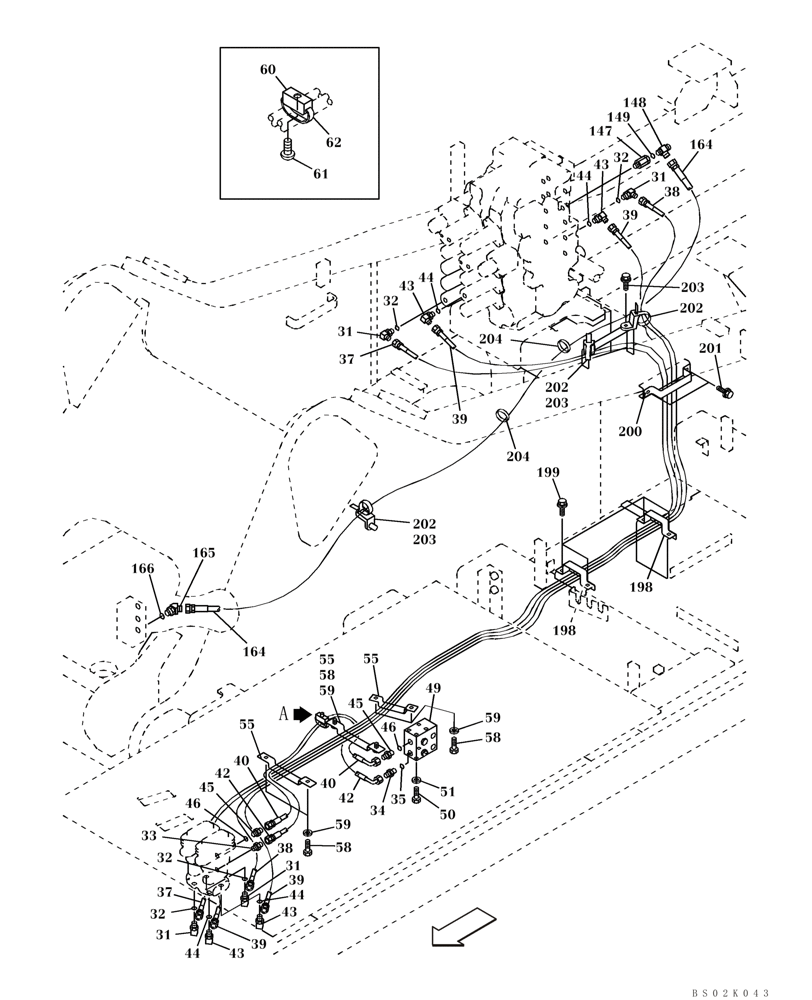

Запчасти Case CX330 (08-032-01[01]) - PILOT CONTROL LINES, TRAVEL - MODELS WITH LOAD HOLD & CONTROL SELECTOR VALVE (08) - HYDRAULICS

31

150913A1

ELBOW,90 Degree, 1/4" O-Ring x 1/4"

Incl. 32

4шт.

32

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

33

161841A1

HYD CONNECTOR

1шт.

34

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

Incl. 35

1шт.

35

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

37

161293A1

HOSE

1шт.

38

161292A1

HOSE,3550.00 mm

1шт.

39

157838A1

HOSE,6.5 mm ID x 3500.00 mm

2шт.

40

159019A1

HOSE ASSY.

900 mm (35-1/2 in)

1шт.

42

KAJ3524

HYDRAULIC HOSE

1шт.

43

150913A1

ELBOW,90 Degree, 1/4" O-Ring x 1/4"

Incl. 44

4шт.

44

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

45

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

Incl. 46

2шт.

46

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

49

KRJ5903

MANIFOLD

1шт.

50

828-8100

BOLT,Hex, M8 x 1.25 x 100mm, Cl 10.9

4шт.

51

153081A1

WASHER

4шт.

55

KHJ1394

CLAMP

3шт.

58

627-8012

BOLT,Hex, M8 x 1.25 x 12mm, Cl 10.9, Full Thd

6шт.

59

153081A1

WASHER

6шт.

60

150860A1

COLLAR

1шт.

61

840-168

SCREW,Pan, M6 x 1 x 8mm, Cl 4.8

1шт.

62

150071A1

MOUNTING CLIP

1шт.

147

KHV0373

STUD

1шт.

148

164107A1

TEE,3/8" ORB x 3/8" - 19 NPT x 3/8" - 19 NPT

Incl. 149

1шт.

149

154475A1

O-RING

1шт.

164

157968A1

HOSE

1шт.

165

157584A1

ELBOW

Incl. 166

1шт.

166

154475A1

O-RING

1шт.

198

161095A1

CLAMP

2шт.

199

166350A1

BOLT

4шт.

200

KHJ1906

CLAMP

1шт.

201

166350A1

BOLT

2шт.

202

KHR2581

CLAMP

3шт.

203

KHJ1215

BOLT,Spcl

3шт.

204

150071A1

MOUNTING CLIP

1шт.
