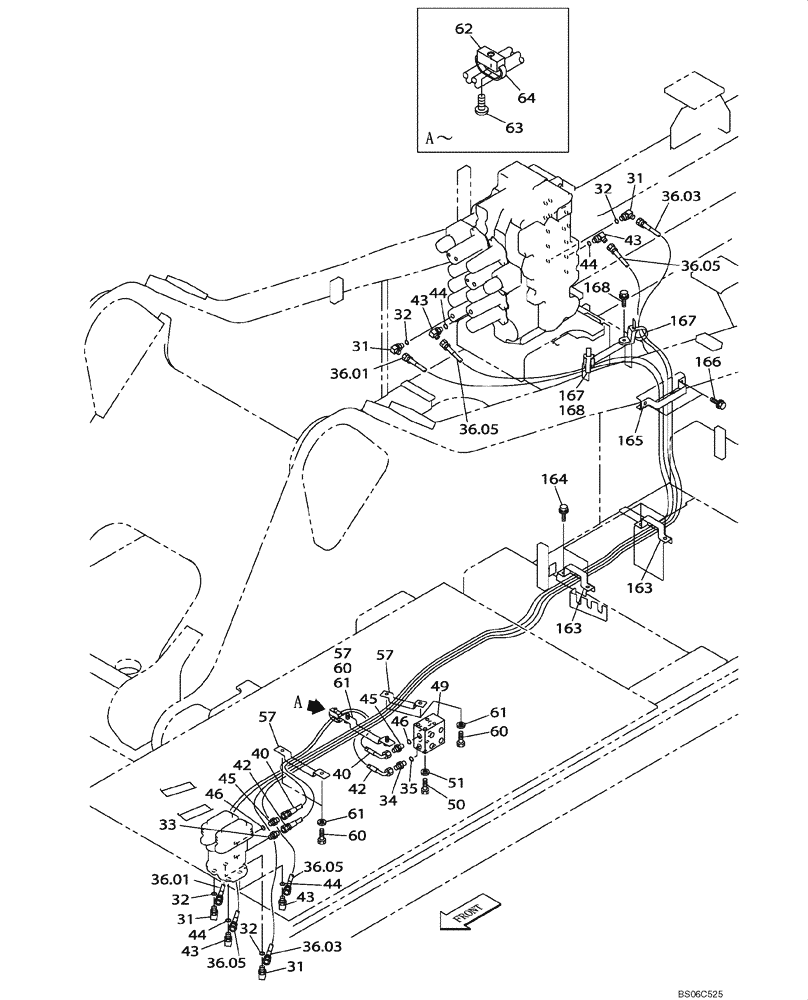

Запчасти Case CX330 (08-031-00[01]) - PILOT CONTROL LINES, TRAVEL - MODELS WITHOUT LOAD HOLD (08) - HYDRAULICS

31

150913A1

ELBOW,90 Degree, 1/4" O-Ring x 1/4"

Incl. 32

4шт.

32

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

33

161841A1

HYD CONNECTOR

1шт.

34

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

Incl. 35

1шт.

35

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

36.01

161293A1

HOSE

3600 mm

1шт.

36.03

161292A1

HOSE,3550.00 mm

1шт.

36.05

157838A1

HOSE,6.5 mm ID x 3500.00 mm

3500 mm

2шт.

40

159019A1

HOSE ASSY.

900 mm

1шт.

42

KAJ3524

HYDRAULIC HOSE

1шт.

43

150913A1

ELBOW,90 Degree, 1/4" O-Ring x 1/4"

Incl. 44

4шт.

44

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

45

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

Incl. 46

2шт.

46

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

49

KRJ5903

MANIFOLD

1шт.

50

828-8100

BOLT,Hex, M8 x 1.25 x 100mm, Cl 10.9

4шт.

51

153081A1

WASHER

M8

4шт.

57

KHJ1394

CLAMP

3шт.

60

627-8012

BOLT,Hex, M8 x 1.25 x 12mm, Cl 10.9, Full Thd

8шт.

61

153081A1

WASHER

M8

8шт.

62

150860A1

COLLAR

1шт.

63

840-168

SCREW,Pan, M6 x 1 x 8mm, Cl 4.8

1шт.

64

150071A1

MOUNTING CLIP

380 mm

1шт.

163

161095A1

CLAMP

2шт.

164

166350A1

BOLT

M8 x 20

4шт.

165

KHJ1906

CLAMP

1шт.

166

166350A1

BOLT

M8 x 20

2шт.

167

KHR2581

CLAMP

2шт.

168

KHJ1215

BOLT,Spcl

M8 x 25

2шт.
