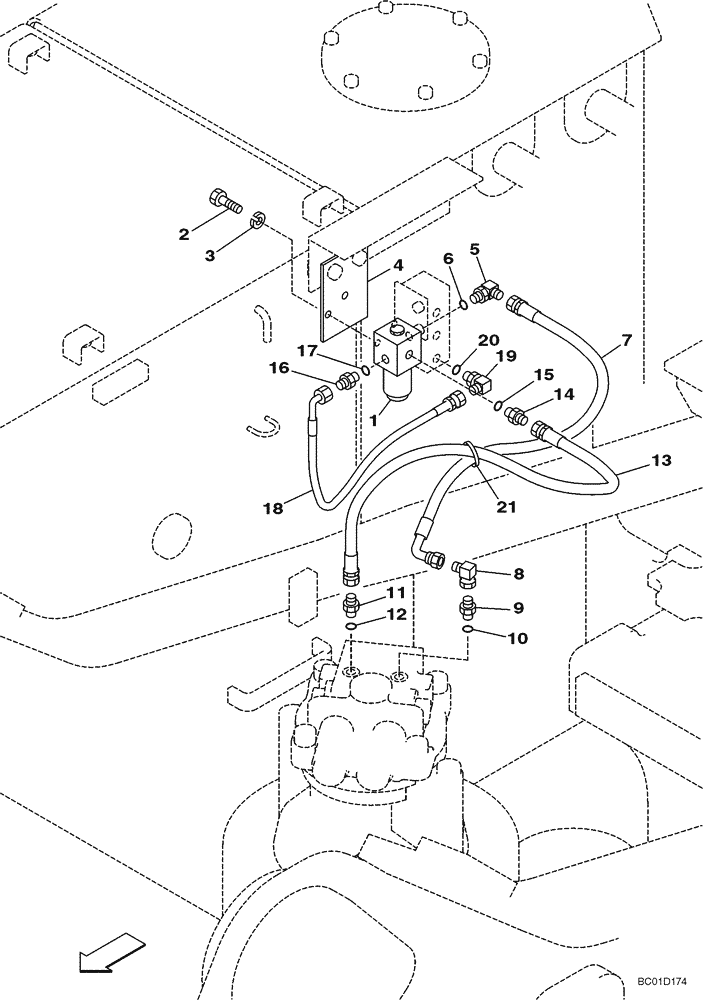

Запчасти Case CX330 (08-024-01[01]) - HYDRAULICS - FREE SWING (08) - HYDRAULICS

1

159205A1

VALVE

Solenoid; See Figure 08-259-00 01

1шт.

2

627-6016

BOLT,Hex, M6 x 1 x 16mm, Cl 10.9, Full Thd

2шт.

3

892-11006

LOCK WASHER,M6

2шт.

4

KSJ2779

BRACKET

1шт.

5

150913A1

ELBOW,90 Degree, 1/4" O-Ring x 1/4"

Incl. 6

1шт.

6

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

7

KSJ2780

HYDRAULIC HOSE,6.35 mm ID x 780.00 mm

1шт.

8

163814A1

ELBOW

1шт.

9

162366A1

ADAPTER

Incl. 10

1шт.

10

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

11

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

Incl. 12

1шт.

12

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

13

KSJ2781

HYDRAULIC HOSE,6.35 mm ID x 850.00 mm

1шт.

14

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

Incl. 15

1шт.

15

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

16

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

Incl. 17

1шт.

17

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

18

159355A1

HOSE ASSY.

1шт.

19

150913A1

ELBOW,90 Degree, 1/4" O-Ring x 1/4"

Incl. 20

1шт.

20

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

21

150498A1

MOUNTING CLIP

300 mm (11-3/4 in)

2шт.
