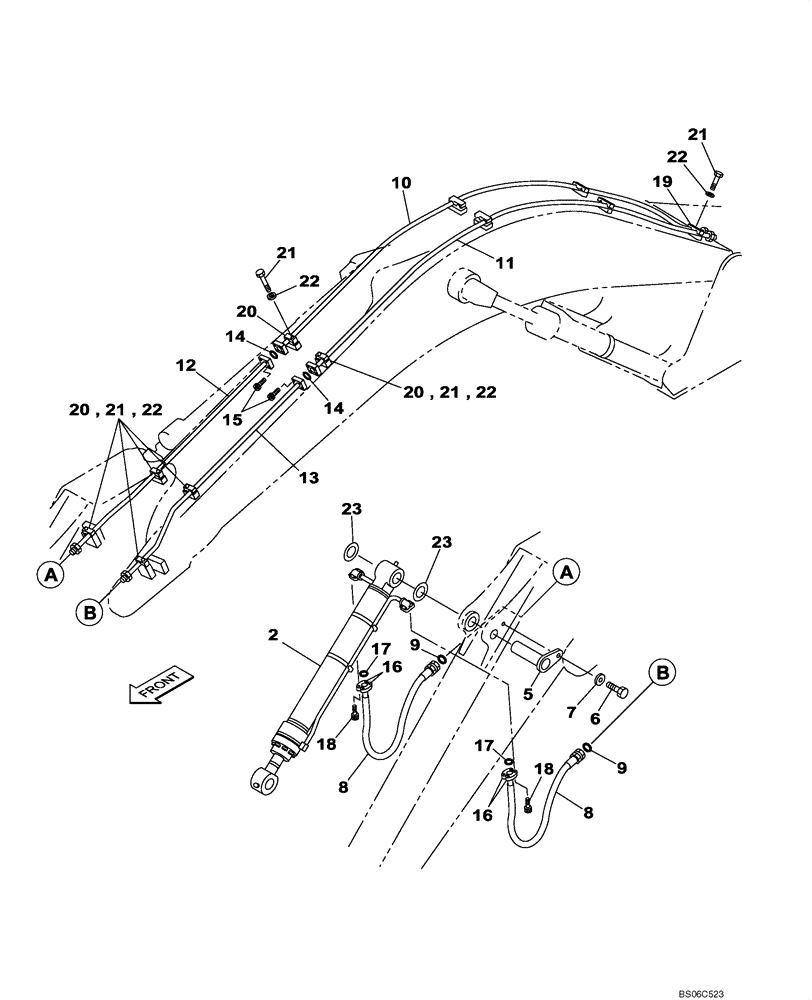

Запчасти Case CX330 (08-022-00[01]) - HYDRAULIC CIRCUIT - BUCKET CYLINDER - 3.25 M ARM (08) - HYDRAULICS

2

KSV1928

BUCKET CYLINDER

See Figure 08-303-00 01

1шт.

2

KSV18700R

REMAN-HYD CYLINDER

CX330 CRAWLER EXCAVATOR TIER 3, ASN N5SAP7001, (NA), BUCKET CYLINDER - 3.25 M ARM (1/06-), Reman for New PN KSV1928

1шт.

2

KSV18700C

CORE-HYD CYLINDER

Return Number

1шт.

5

KSV1522

PIN

1шт.

6

102R020Y035R

BOLT

M20 x 35

1шт.

7

KTV1185

SPACER

1шт.

8

KSV1810

HYDRAULIC HOSE,25.40 mm ID x 1750.00 mm

2шт.

9

KHJ1361

O-RING,0.07" Thk x 0.926" ID

2шт.

10

KSV1357

TUBE ASSY.,26 mm ID x 34 mm OD

1шт.

11

KSV1356

TUBE ASSY.,26 mm ID x 34 mm OD

1шт.

12

KSV1808

HYD TUBE,26 mm ID x 34 mm OD

1шт.

13

KSV1809

HYD TUBE,26 mm ID x 34 mm OD

1шт.

14

154548A1

O-RING

2шт.

15

862-10045

HEX SOC SCREW,M10 x 45mm, Cl 12.9

8шт.

16

153459A1

FLANGE

4шт.

17

155211A1

O-RING

1700 mm

2шт.

18

862-10035

HEX SOC SCREW,M10 x 35mm, Cl 12.9

8шт.

19

162595A1

CLAMP

1шт.

20

150777A1

COLLAR

6шт.

21

827-16070

BOLT,Hex, M16 x 2 x 70mm, Cl 10.9

7шт.

22

150814A1

WASHER,17mm ID x 32mm OD x 4.5mm Thk

W16

7шт.

23

KSP0828

SHIM,1.2mm Thk

1шт.
