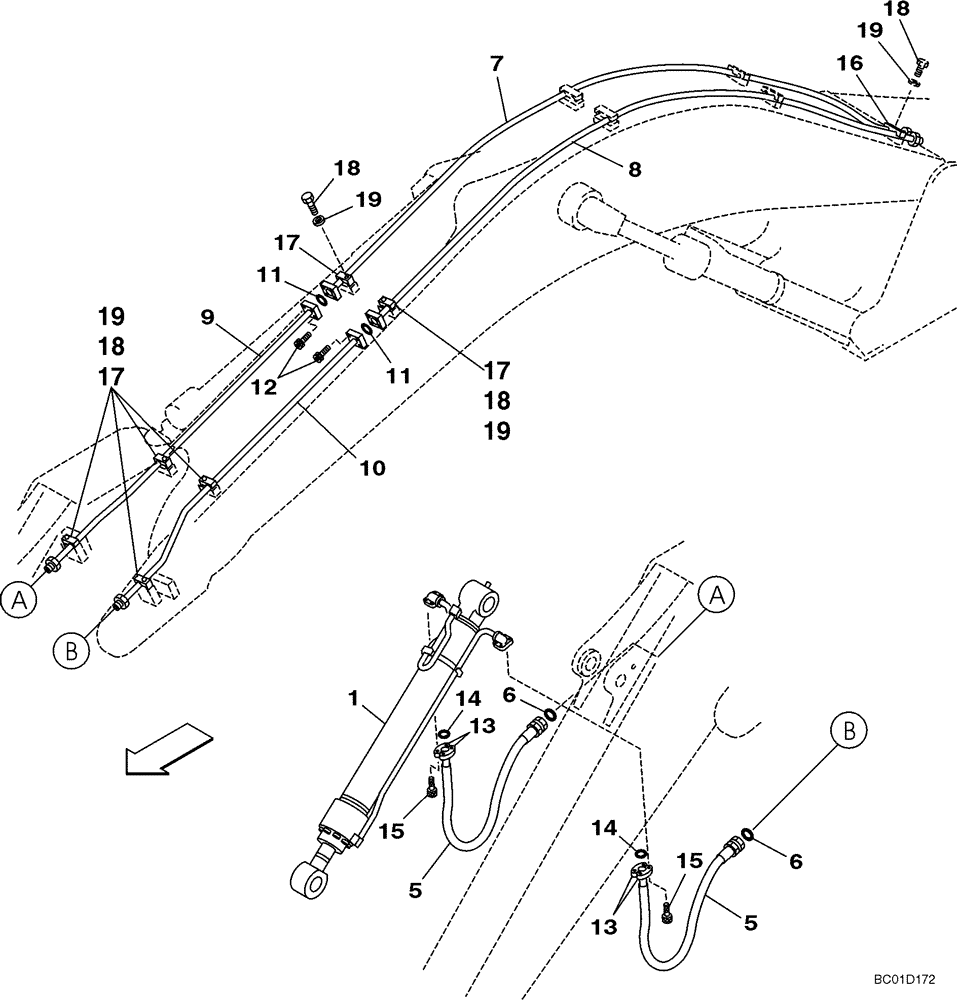

Запчасти Case CX330 (08-18) - HYDRAULICS - BUCKET, 3,25 METER (10 FT 8 IN) ARM (08) - HYDRAULICS

1

KSV1396

BUCKET CYLINDER

Bucket; See Figure 08-86

1шт.

5

KSV16650

HYDRAULIC HOSE,1750.00 mm

Replaces KSV1370 & KSV1810

2шт.

6

KHJ1361

O-RING,0.07" Thk x 0.926" ID

2шт.

7

KSV1357

TUBE ASSY.,26 mm ID x 34 mm OD

1шт.

8

KSV1356

TUBE ASSY.,26 mm ID x 34 mm OD

1шт.

9

KSV1808

HYD TUBE,26 mm ID x 34 mm OD

Replaces KSV1358

1шт.

10

KSV1809

HYD TUBE,26 mm ID x 34 mm OD

Replaces KSV1359

1шт.

11

154548A1

O-RING

2шт.

12

862-10045

HEX SOC SCREW,M10 x 45mm, Cl 12.9

8шт.

13

153459A1

FLANGE

Split

4шт.

14

155211A1

O-RING

2шт.

15

862-10040

HEX SOC SCREW,M10 x 40mm, Cl 12.9

8шт.

16

162595A1

CLAMP

1шт.

17

150777A1

COLLAR

6шт.

18

827-16070

BOLT,Hex, M16 x 2 x 70mm, Cl 10.9

7шт.

19

150814A1

WASHER,17mm ID x 32mm OD x 4.5mm Thk

7шт.
