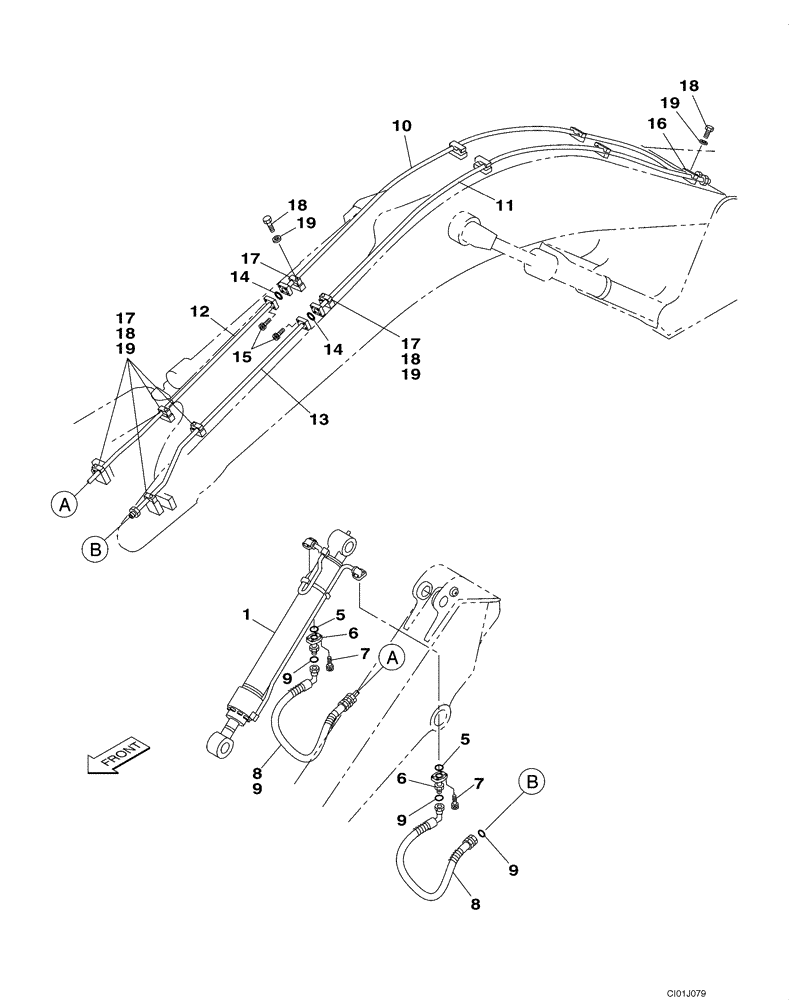

Запчасти Case CX330 (08-16) - HYDRAULICS - BUCKET, 2,0 METER (6 FT 6 IN) ARM (08) - HYDRAULICS

1

KSV1396

BUCKET CYLINDER

See Figure 08-86

1шт.

5

154548A1

O-RING

2шт.

6

KHV0481

TUBE ASSY.

2шт.

7

862-10040

HEX SOC SCREW,M10 x 40mm, Cl 12.9

8шт.

8

KSV1545

HYDRAULIC HOSE,1700.00 mm

2шт.

9

KHJ1361

O-RING,0.07" Thk x 0.926" ID

4шт.

10

KSV1357

TUBE ASSY.,26 mm ID x 34 mm OD

1шт.

11

KSV1356

TUBE ASSY.,26 mm ID x 34 mm OD

1шт.

12

KSV1808

HYD TUBE,26 mm ID x 34 mm OD

Replaces KSV1358

1шт.

13

KSV1809

HYD TUBE,26 mm ID x 34 mm OD

Replaces KSV1359

1шт.

14

154548A1

O-RING

2шт.

15

862-10045

HEX SOC SCREW,M10 x 45mm, Cl 12.9

8шт.

16

162595A1

CLAMP

1шт.

17

150777A1

COLLAR

6шт.

18

827-16070

BOLT,Hex, M16 x 2 x 70mm, Cl 10.9

7шт.

19

150814A1

WASHER,17mm ID x 32mm OD x 4.5mm Thk

7шт.
