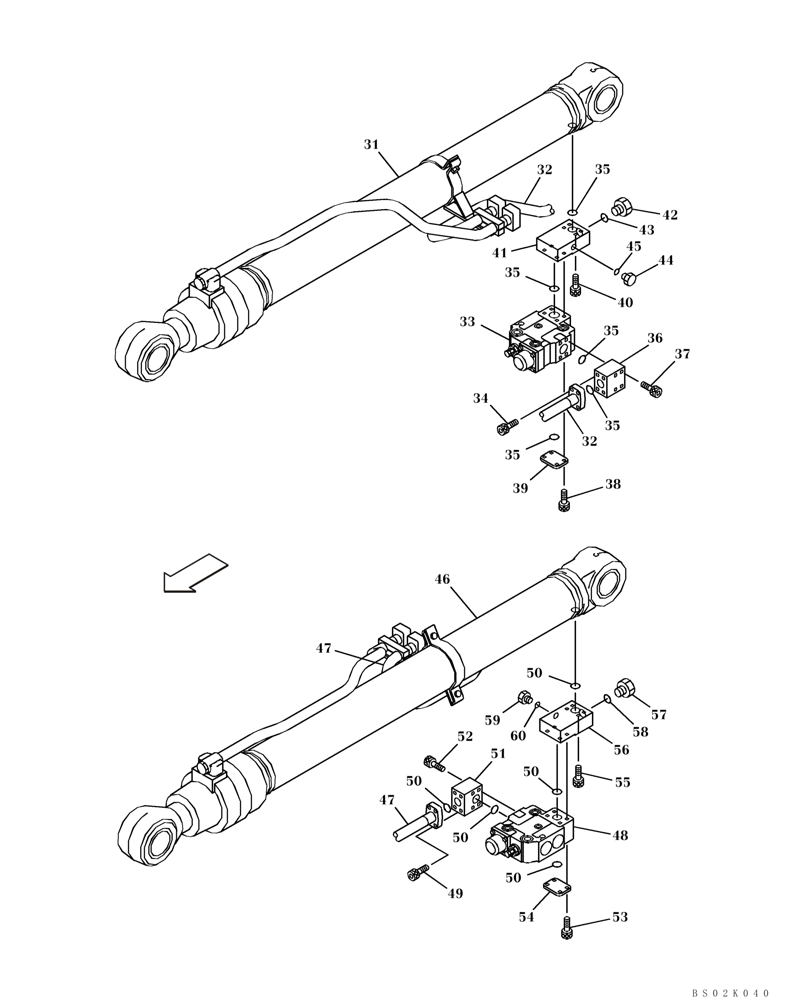

Запчасти Case CX330 (08-12) - HYDRAULICS - BOOM CYLINDER, MODELS WITH LOAD HOLD (08) - HYDRAULICS

31

KSV1454

HYDRAULIC CYLINDER

Boom; Right Hand; See Figure 08-81

1шт.

32

KSV1461

TUBE ASSY.,26 mm ID x 34 mm OD

1шт.

33

KSV1457

VALVE

See Figure 08-87

1шт.

34

862-12035

HEX SOC SCREW,M12 x 35mm, Cl 12.9

4шт.

35

155211A1

O-RING

5шт.

36

KSV1553

MANIFOLD

1шт.

37

108R012Y065R

BOLT

4шт.

38

862-12100

HEX SOC SCREW,M12 x 100mm, Cl 12.9

4шт.

39

161955A1

FLANGE

Flat

1шт.

40

862-12070

HEX SOC SCREW,M12 x 70mm, Cl 12.9

4шт.

41

KSV1464

MANIFOLD

1шт.

42

162659A1

PLUG

Incl. 43

1шт.

43

154523A1

O-RING

1шт.

44

153105A1

PLUG

Incl. 45

1шт.

45

154475A1

O-RING

1шт.

46

KSV1455

HYDRAULIC CYLINDER

Boom; Left Hand; See Figure 08-83

1шт.

47

KSV1462

TUBE ASSY.,26 mm ID x 34 mm OD

1шт.

48

KSV1457

VALVE

See Figure 08-87

1шт.

49

862-12035

HEX SOC SCREW,M12 x 35mm, Cl 12.9

4шт.

50

155211A1

O-RING

5шт.

51

KSV1553

MANIFOLD

1шт.

52

108R012Y065R

BOLT

4шт.

53

862-12100

HEX SOC SCREW,M12 x 100mm, Cl 12.9

4шт.

54

161955A1

FLANGE

Flat

1шт.

55

862-12070

HEX SOC SCREW,M12 x 70mm, Cl 12.9

4шт.

56

KSV1464

MANIFOLD

1шт.

57

162659A1

PLUG

Incl. 58

1шт.

58

154523A1

O-RING

1шт.
